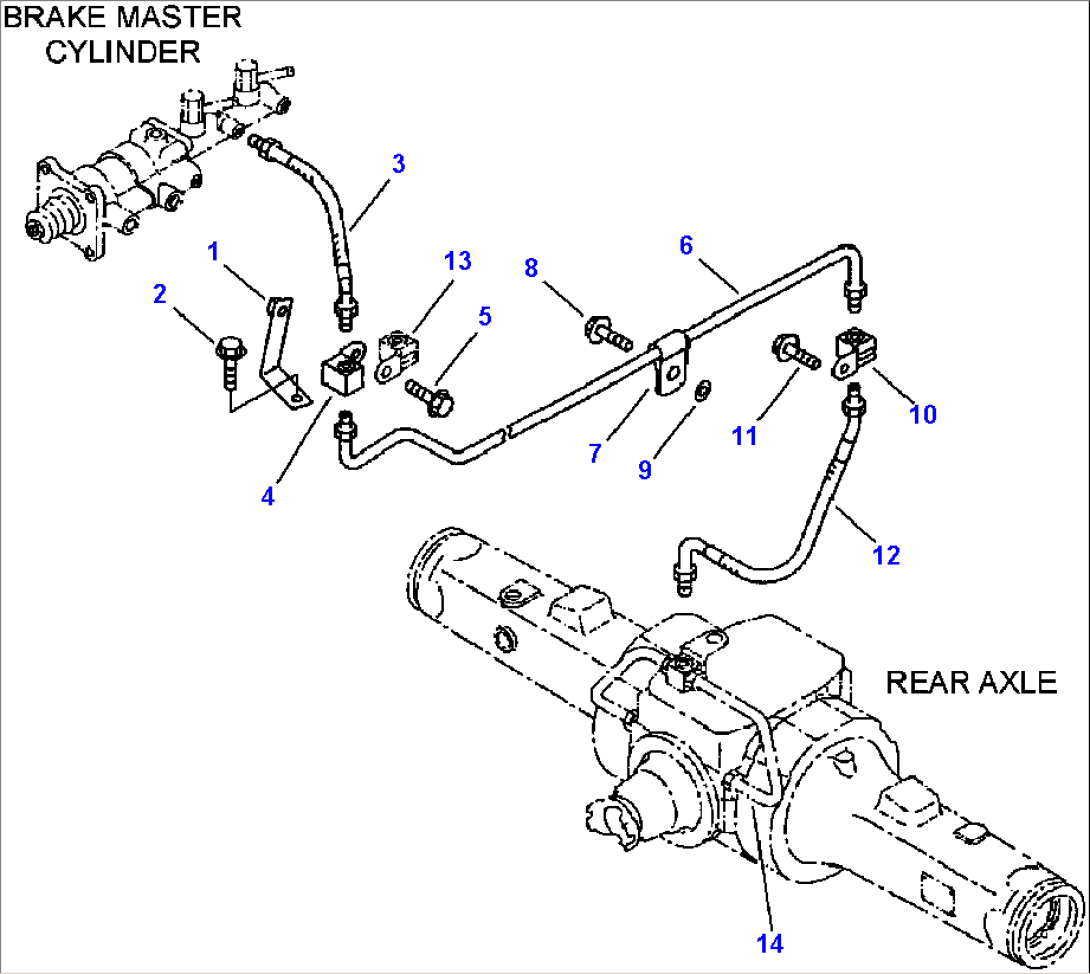

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-43-27370 | PLATE | A80001-UP- | |
| 2 | 01435-01020 | BOLT | A80001-UP- | |
| 3 | 417-43-27280 | HOSE | A80001-UP- | |
| 4 | 419-43-17370 | UNION | A80001-UP- | |
| 5 | 01435-01020 | BOLT | A80001-UP- | |
| 6 | 417-43-27260 | TUBE | A80001-UP- | |
| 7 | 419-09-11160 | CLIP | A80001-UP- | |
| 8 | 01435-01020 | BOLT | A80001-UP- | |
| 9 | 01643-31032 | WASHER | A80001-UP- | |
| 10 | 419-43-17370 | UNION | A80001-UP- | |
| 11 | 01435-01020 | BOLT | A80001-UP- | |
| 12 | 417-43-27270 | HOSE | A80001-UP- | |
| 13 | UNION (SEE FIG. K4460-04A0) | A80001-UP- | ||
| 14 | TUBE (SEE FIG. K4470-01A0) | A80001-UP- |
