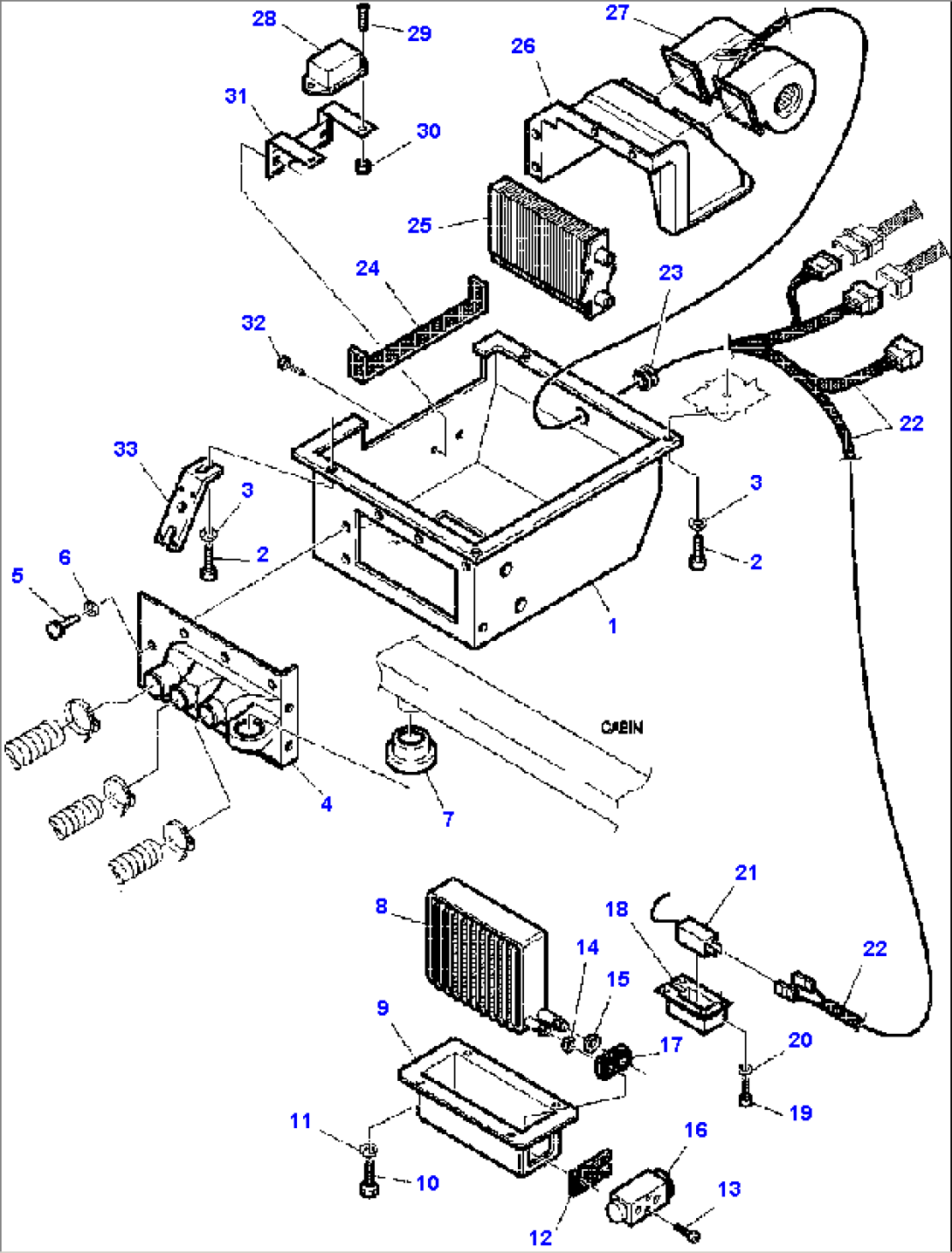

| Item | Part No. | Part Name | Qty | Serial No. |
| 880011082 | AIR CONDITIONER | A90001 -- | ||
| 880011084 | CAB KIT | A90001 -- | ||
| 1 | 312649121 | ENCLOSURE, HEATER CORE | A90001 -- | |
| 2 | 801104125 | SCREW | A90001 -- | |
| 3 | 802170002 | WASHER, SPRING | A90001 -- | |
| 4 | 888011052 | PANEL, HOSE CONNECTION | A90001 -- | |
| 5 | (NSS) | BOLT | A90001 -- | |
| 6 | (NSS) | WASHER | A90001 -- | |
| 7 | 888011053 | UNION | A90001 -- | |
| 8 | 312649122 | A/C EVAPORATOR CORE | A90001 -- | |
| 9 | 312649124 | ENCLOSURE, EVAPORATOR | A90001 -- | |
| 10 | (NSS) | BOLT | A90001 -- | |
| 11 | (NSS) | WASHER | A90001 -- | |
| 12 | 312649606 | FLANGE | A90001 -- | |
| 13 | 801104042 | SCREW | A90001 -- | |
| 14 | 855021013 | O-RING | A90001 -- | |
| 15 | 855021015 | O-RING | A90001 -- | |
| 16 | 312649074 | VALVE | A90001 -- | |
| 17 | 312649125 | GASKET | A90001 -- | |
| 18 | 888011061 | HOLDER, THERMOSTAT | A90001 -- | |
| 19 | (NSS) | BOLT | A90001 -- | |
| 20 | (NSS) | WASHER | A90001 -- | |
| 21 | 312649076 | THERMOSTAT | A90001 -- | |
| 22 | 312649083 | WIRING HARNESS, A/C | A90001 -- | |
| 23 | (NSS) | GROMMET, RUBBER | A90001 -- | |
| 24 | 888011054 | GASKET, ADHESIVE | A90001 -- | |
| 25 | 888011048 | CORE, HEATER | A90001 -- | |
| 26 | 312649123 | ENCLOSURE, HEATER CORE | A90001 -- | |
| 27 | 312649082 | BLOWER, HEATER | A90001 -- | |
| 28 | 312649075 | RESISTOR | A90001 -- | |
| 29 | (NSS) | BOLT | A90001 -- | |
| 30 | (NSS) | NUT | A90001 -- | |
| 31 | 312649137 | BRACKET, RESISTOR SUPPORT | A90001 -- | |
| 32 | (NSS) | BOLT | A90001 -- | |
| 33 | 312632603 | BRACKET, COCK SUPPORT | A90001 -- |
