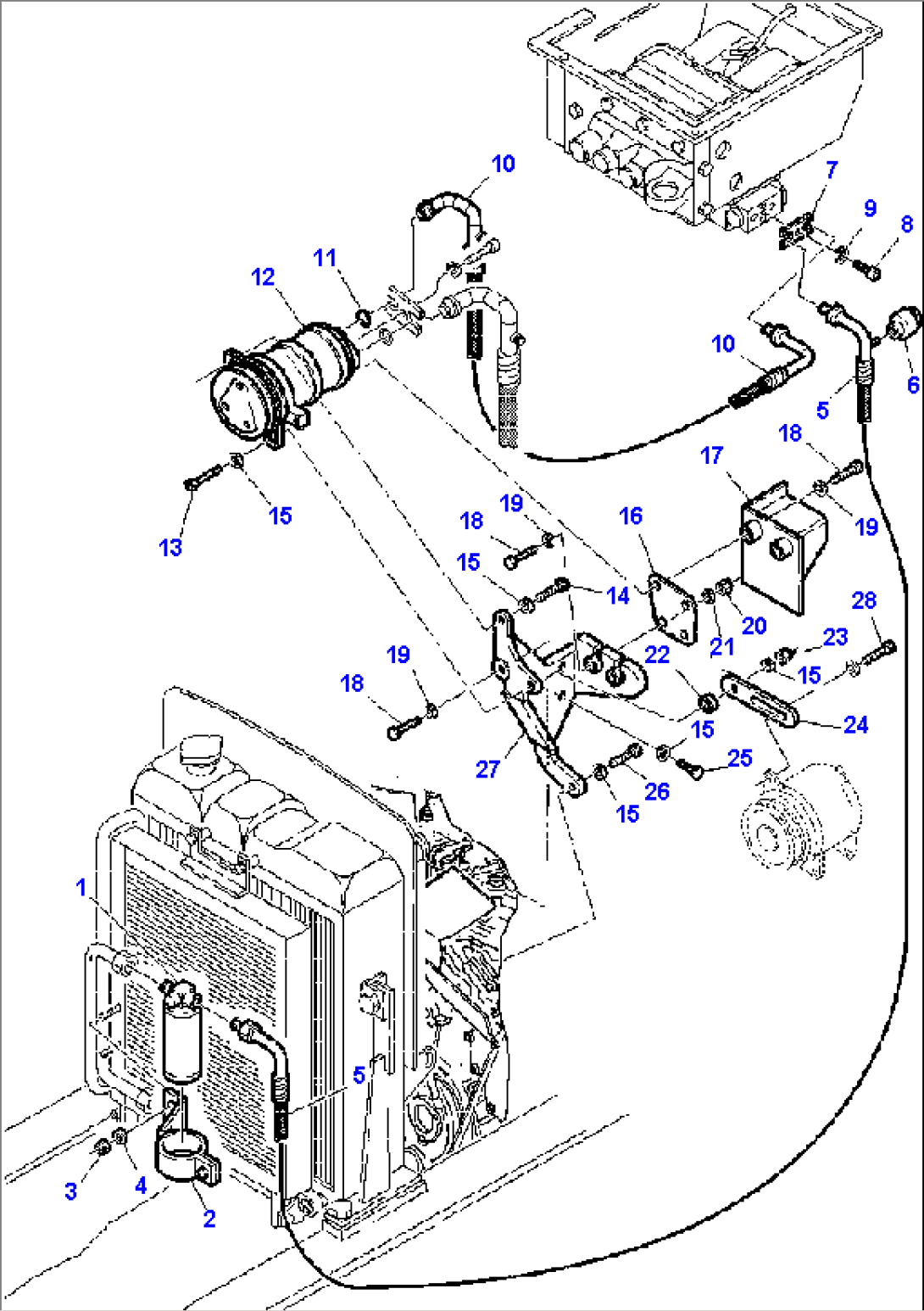

| Item | Part No. | Part Name | Qty | Serial No. |
| | AIR CONDITIONER (SEE FIG. K5900-01A0) | | A60001- |
| | A/C, ENGINE RELATED (SEE FIG. K5930-01A0) | | A60001- |
| 1 | 312649115 | FILTER | | A60001- |
| 2 | 312649116 | SUPPORT, FILTER | | A60001- |
| 3 | 801880206 | NUT, SELF-LOCKING | | A60001- |
| 4 | 802170000 | WASHER | | A60001- |
| 5 | 312649120 | HOSE | | A60001- |
| 6 | 312649117 | SWITCH, A/C PRESSURE | | A60001- |
| 7 | 312649059 | FLANGE | | A60001- |
| 8 | 801105523 | SCREW | | A60001- |
| 9 | 880011075 | WASHER, SPRING | | A60001- |
| 10 | 312649119 | HOSE | | A60001- |
| 11 | 312649607 | O-RING | | A60001- |
| 12 | 312649108 | COMPRESSOR, AIR CONDITIONING | | A60001- |
| 13 | 801015561 | BOLT | | A60001- |
| 14 | 801015111 | BOLT | | A60001- |
| 15 | 802170002 | WASHER | | A60001- |
| 16 | 312649066 | SUPPORT | | A60001- |
| 17 | 312649091 | GUARD, HOSE | | A60001- |
| 18 | 801015090 | BOLT | | A60001- |
| 19 | 802170001 | WASHER | | A60001- |
| 20 | 801703008 | NUT | | A60001- |
| 21 | 802150508 | WASHER, SPRING | | A60001- |
| 22 | 31240603 | SPACER | | A60001- |
| 23 | 801880001 | NUT, SELF-LOCKING | | A60001- |
| 24 | 312649067 | BRACKET, ADJUSTING | | A60001- |
| 25 | 801015112 | BOLT | | A60001- |
| 26 | 801015110 | BOLT | | A60001- |
| 27 | 312649109 | BRACKET, COMPRESSOR SUPPORT | | A60001- |
| 28 | 801015087 | BOLT | | A60001- |
