| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08174-13118 | MIRROR | A83001-- | |
| 2 | 20Y-54-35420 | SUPPORT | A83001-- | |
| 3 | 20Y-54-35430 | CLAMP | A83001-- | |
| 4 | 01252-41030 | BOLT | A83001-- | |
| 5 | GRIP, HAND (SEE FIG. K0210-01A0) | A83001-- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200lc 6le s/n a83001 up
- Guard
- Fig. m1410 01a0 left rear view mirror
Поиск по каталогу

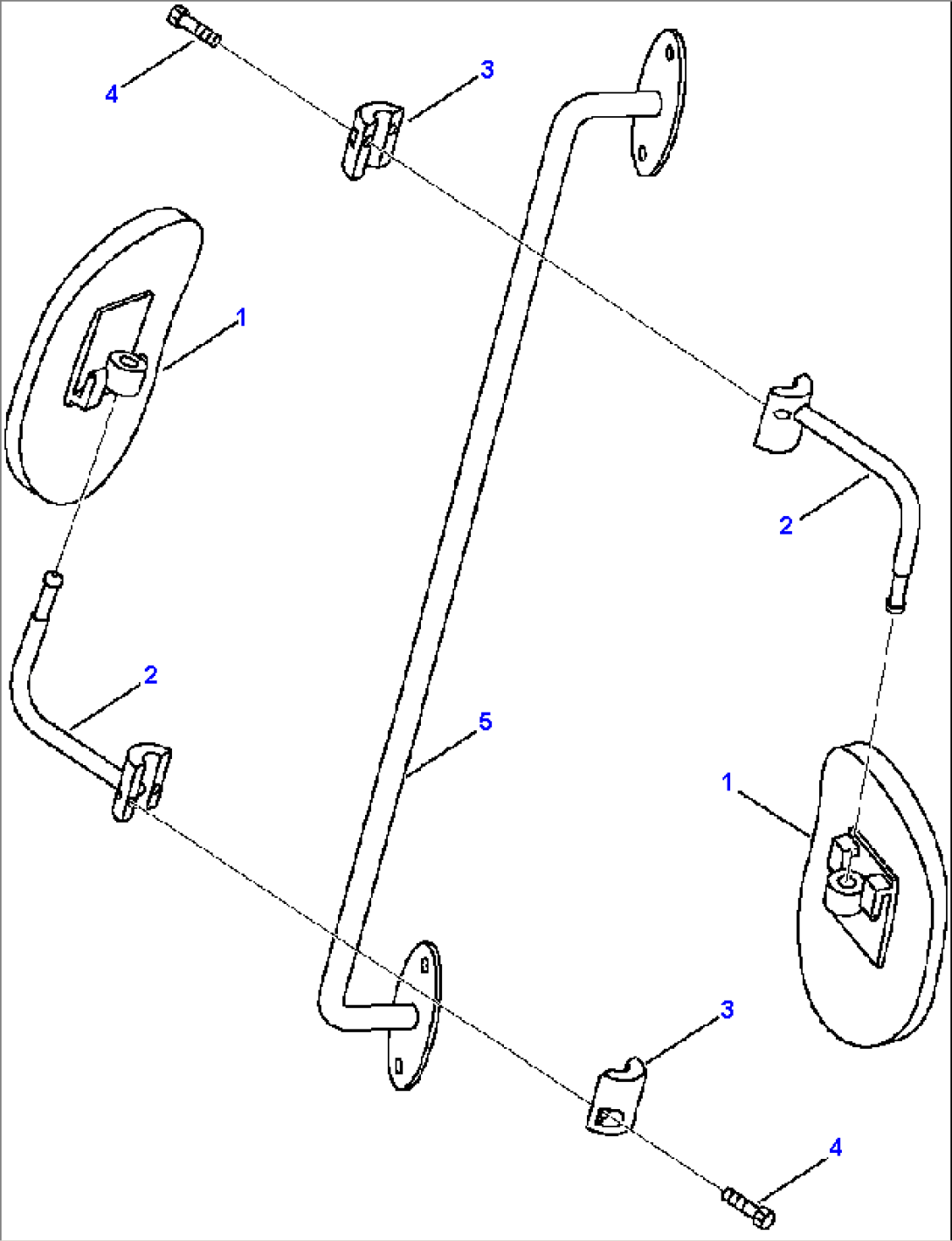

FIG. M1410-01A0 LEFT REAR VIEW MIRROR
