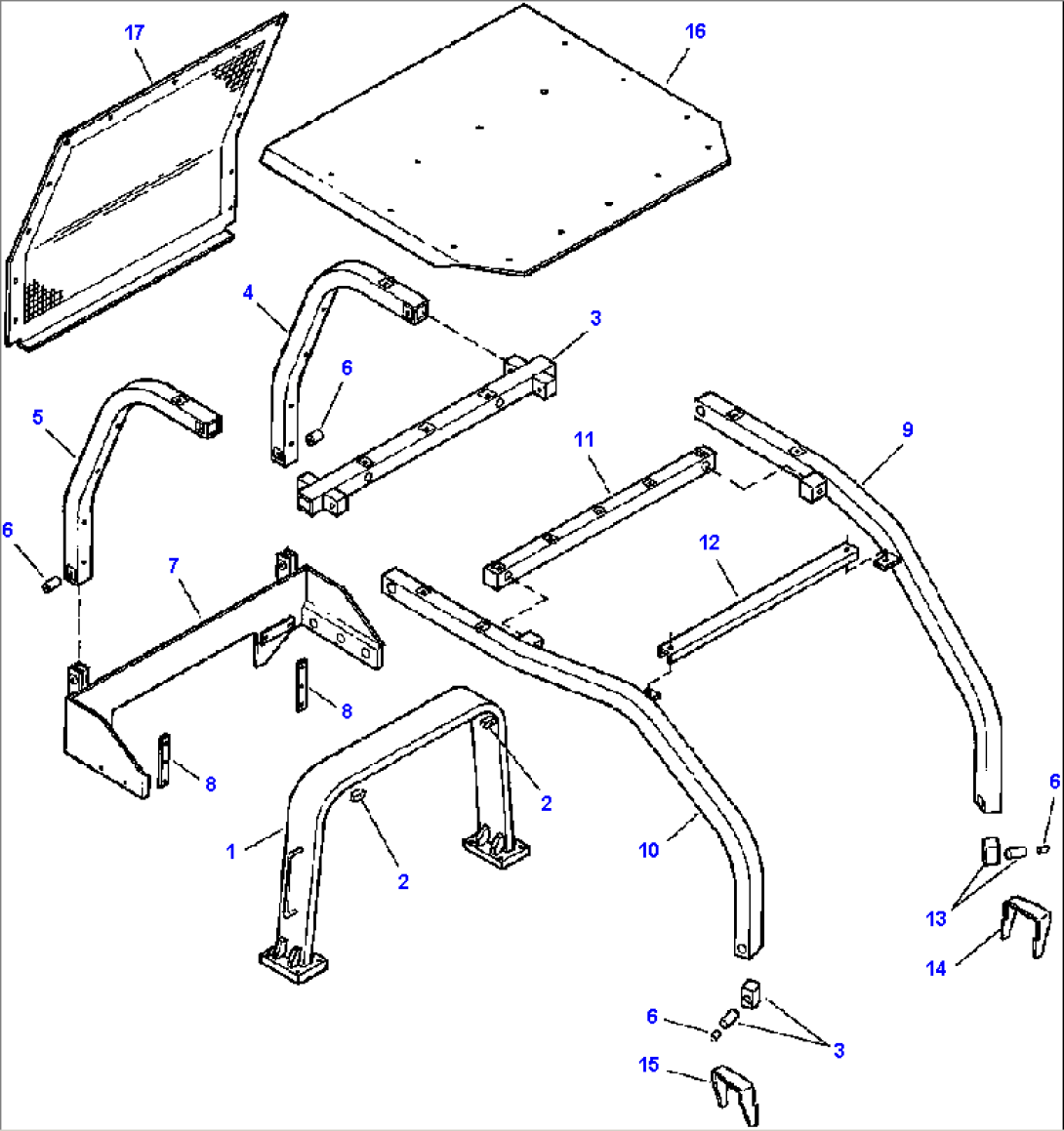

| Item | Part No. | Part Name | Qty | Serial No. |
| 1315 628 H91 | SWEEPS, FRONT AND REAR | P090001- | ||
| 1 | ROPS (SEE FIG. K0410-02A0) | P090001- | ||
| 2 | 1311 953 H1 | BLOCK | P090001- | |
| 3 | 1311 902 H91 | SUPPORT, REAR SWEEP | P090001- | |
| 25 996 R1 | BOLT, 1NCx6 | P090001- | ||
| 25 550 R1 | WASHER, 1 HDN | P090001- | ||
| 4 | 1311 907 H91 | BOW, LEFT REAR | P090001- | |
| 26 011 R1 | BOLT, 1NCx6 | P090001- | ||
| 9413 986 | NUT, PREV TQ - 1NC | P090001- | ||
| 25 550 R1 | WASHER, 1 HDN | P090001- | ||
| 5 | 1311 906 H91 | BOW, RIGHT REAR | P090001- | |
| 26 011 R1 | BOLT, 1NCx6 | P090001- | ||
| 9413 986 | NUT, PREV TQ - 1NC | P090001- | ||
| 25 550 R1 | WASHER, 1 HDN | P090001- | ||
| 6 | 652 757 C1 | BUSHING | P090001- | |
| 26 632 R1 | BOLT, 1NCx6-1/2 | P090001- | ||
| 9413 986 | NUT, PREV TQ - 1NC | P090001- | ||
| 25 550 R1 | WASHER, 1 HDN | P090001- | ||
| 7 | 1311 901 H91 | SUPPORT, REAR SWEEPS | P090001- | |
| 149 864 H1 | BOSS- RND, 5/8NCx1x1-1/2 | P090001- | ||
| 24 873 R1 | BOLT, HEX - 5/8NCx1-1/2 | P090001- | ||
| 25 556 R1 | WASHER, HDN - 5/8 | P090001- | ||
| 25 537 R1 | WASHER, HDN - 5/8 | P090001- | ||
| 8 | 1311 910 H1 | PLATE, SPACER | P090001- | |
| 9 | 1315 776 H91 | BOW, LEFT FRONT | P090001- | |
| 10 | 1315 771 H91 | BOW, RIGHT FRONT | P090001- | |
| 11 | 1311 905 H91 | SUPPORT, FRONT SWEEP | P090001- | |
| 25 996 R1 | BOLT, 1NCx6 | P090001- | ||
| 25 550 R1 | WASHER, 1 HDN | P090001- | ||
| 12 | 1315 775 H1 | CROSS BEAM, SWEEP | P090001- | |
| 24 889 R1 | BOLT, 3/4NCx2-1/4 | P090001- | ||
| 25 529 R1 | NUT, 3/4NC | P090001- | ||
| 25 538 R1 | WASHER, HDN 3/4 | P090001- | ||
| 13 | 1315 769 H91 | MOUNT, FRT. SWEEP | P090001- | |
| 14 | 1315 779 H1 | BLOCK SUPPORT, LEFT | P090001- | |
| 15 | 1315 778 H1 | BLOCK SUPPORT, RIGHT | P090001- | |
| 16 | 1311 908 H91 | PLATE, ROOF CANOPY | P090001- | |
| 24 872 R1 | BOLT, 5/8NCx1-1/4 | P090001- | ||
| 25 537 R1 | WASHER, 5/8 HDN | P090001- | ||
| 1311 912 H91 | SCREEN, REAR CANOPY | P090001- | ||
| 17 | 1311 913 H91 | SCREEN, REAR | P090001- | |
| 24 873 R1 | BOLT, MTG - 5/8NCx1-1/2 | P090001- | ||
| 25 346 R1 | BOLT, HEX - 5/8NCx5-1/2 | P090001- | ||
| 25 547 R1 | WASHER, HDN - 5/8 | P090001- | ||
| 25 528 R1 | NUT, HEX - 5/8NC | P090001- |
