| Item | Part No. | Part Name | Qty | Serial No. |

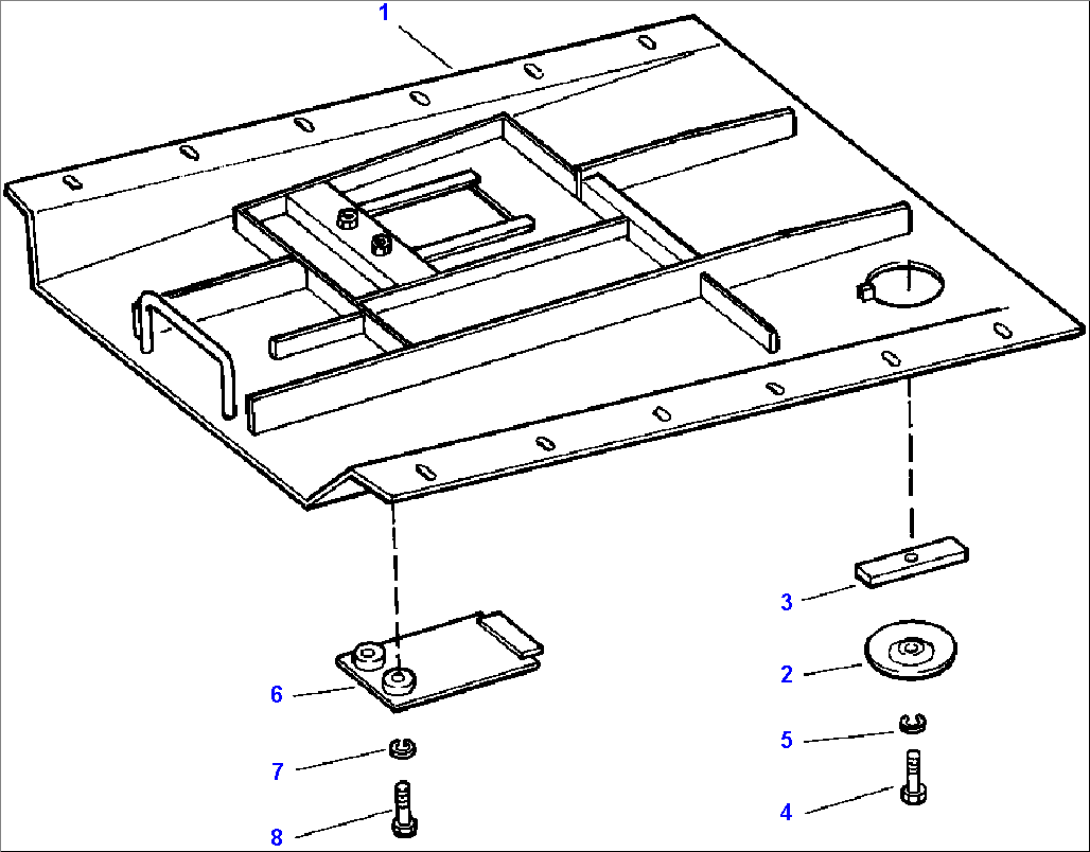

| 1501 192 H91 | GUARD, CRANKCASE - W/FRONT PULLHOOK | Ser Num- | ||
| 1 | 1501 193 H91 | GUARD, CRANKCASE | Ser Num- | |
| 27 356 R1 | BOLT | Ser Num- | ||
| 1210 173 H1 | WASHER | Ser Num- | ||
| 67 574 DC | COVER | Ser Num- | ||
| 2 | (NSS) | COVER | Ser Num- | |
| 3 | 650 374 C1 | BAR | Ser Num- | |
| 4 | 24 862 R1 | BOLT | Ser Num- | |
| 5 | 25 536 R1 | WASHER | Ser Num- | |
| 6 | 1501 026 H91 | COVER | Ser Num- | |
| 7 | 30 178 R1 | WASHER | Ser Num- | |
| 8 | 30 066 R1 | BOLT | Ser Num- | |
| F1 PART NUMBER IS A NON-SERVICE PART AND IS FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS | ||||
