| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08036-01414 | CLIP | A70001-UP- | |
| 2 | 935 522 C1 | BAND | A70001-UP- | |
| 3 | 418-06-22390 | WIRING HARNESS | A70001-UP- | |
| N/I | 415-06-12440 | CLIP | A70001-UP- | |
| N/I | 08053-01510 | CLIP | A70001-UP- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 3l s/n a70001 up
- Guard
- Fig. m4102 02a0 bulkhead wiring main harness
Поиск по каталогу

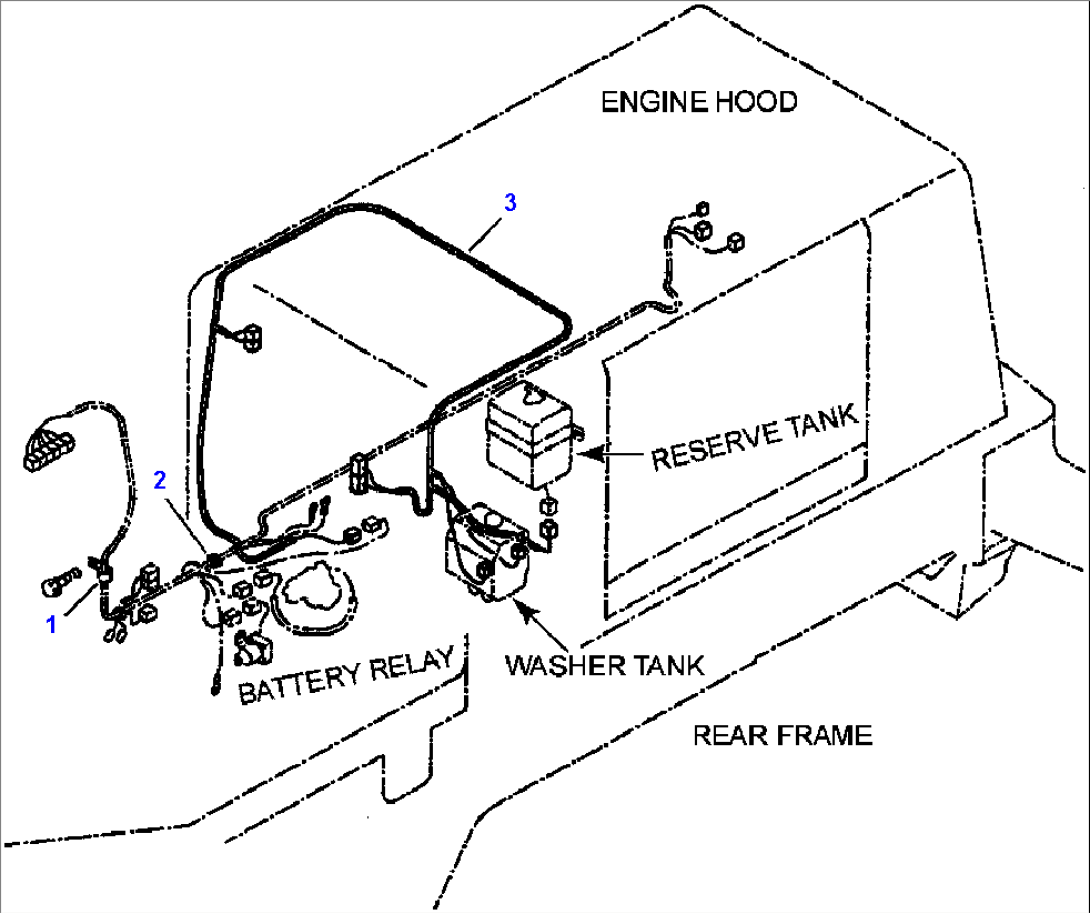

FIG. M4102-02A0 BULKHEAD - WIRING - MAIN HARNESS
