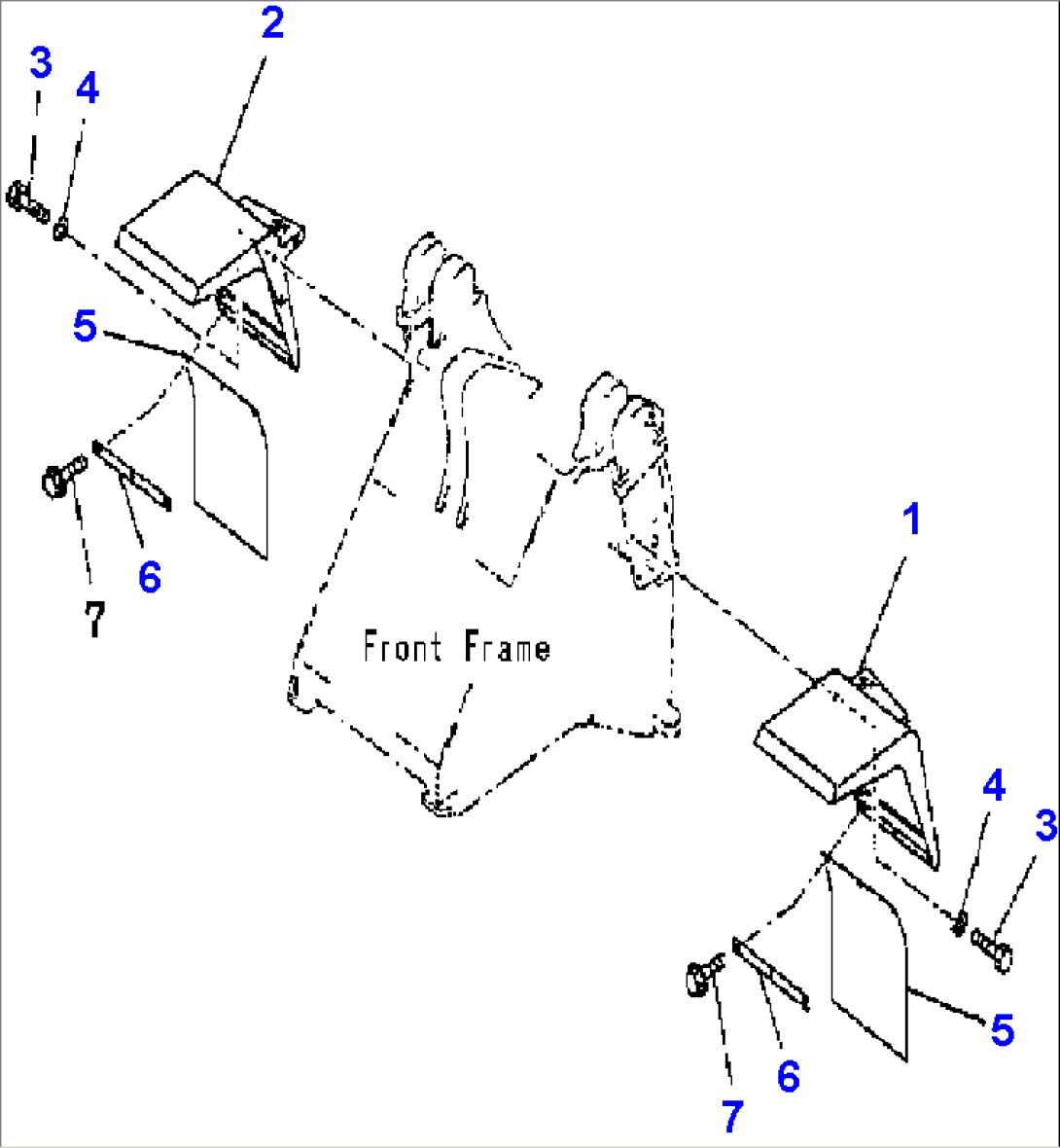

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-54-24130 | FENDER, FRONT - L.H. | A30001-UP- | |
| 2 | 421-54-24140 | FENDER, FRONT - R.H. | A30001-UP- | |
| 3 | 01010-81225 | BOLT | A30001-UP- | |
| 4 | 01643-31232 | WASHER | A30001-UP- | |
| 5 | 421-54-24170 | FLAP, MUD - FRONT FENDER | A30001-UP- | |
| 6 | 421-54-24180 | BRACKET, FLAP MOUNTING | A30001-UP- | |
| 7 | 01435-01020 | BOLT | A30001-UP- |
