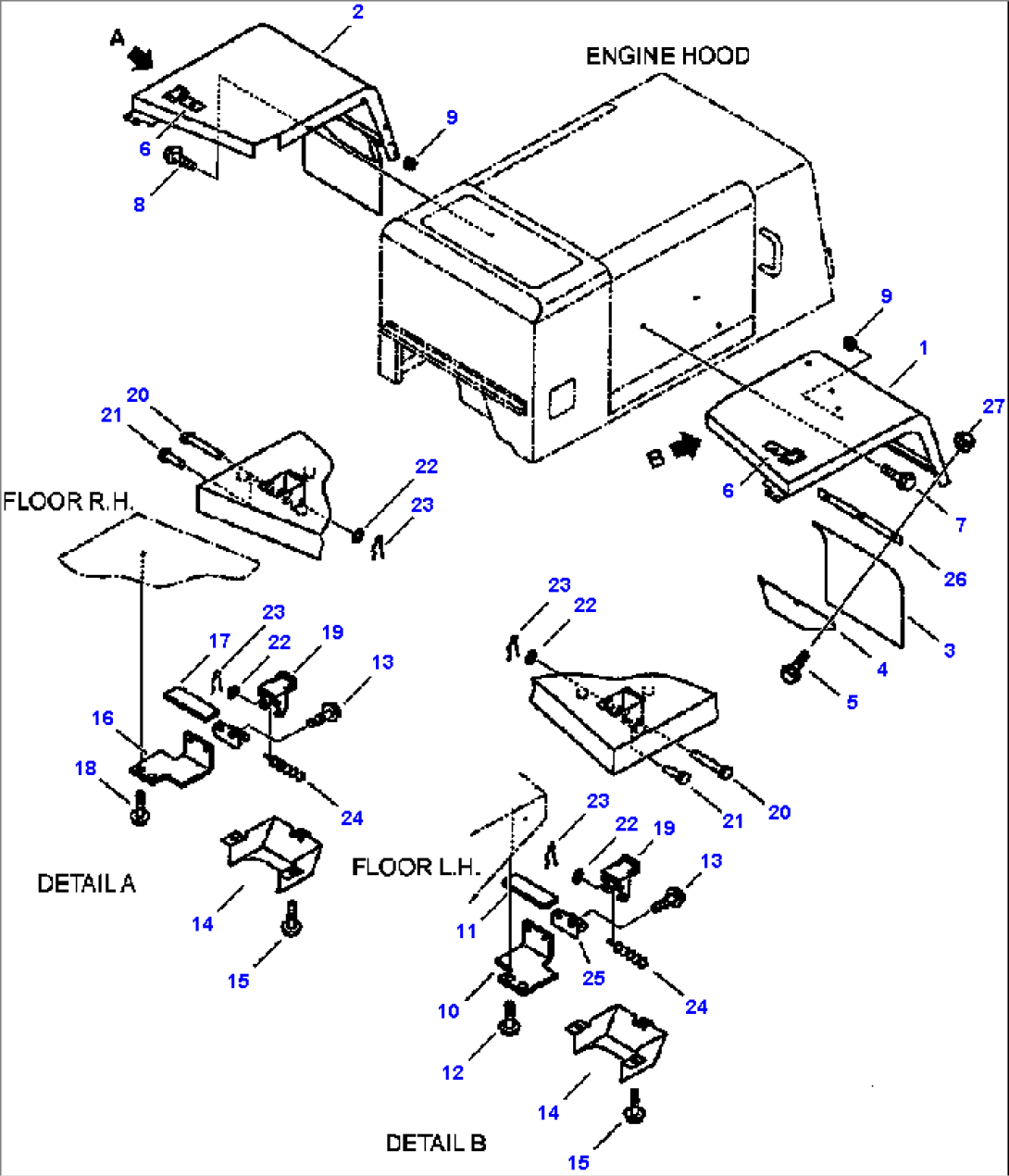

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-24810 | FENDER, L.H. | A70001-UP- | |
| 2 | 418-54-24820 | FENDER, R.H. | A70001-UP- | |
| 3 | 418-54-24560 | SHEET | A70001-UP- | |
| 4 | 418-54-24470 | PLATE | A70001-UP- | |
| 5 | 01435-01225 | BOLT | A70001-UP- | |
| 6 | 09805-03000 | PLATE, SAFETY | A70001-UP- | |
| 7 | 01435-01225 | BOLT | A70001-UP- | |
| 8 | 01435-01225 | BOLT | A70001-UP- | |
| 9 | 09415-01008 | CAP | A70001-UP- | |
| 10 | 418-54-24780 | BRACKET, L.H. | A70001-UP- | |
| 11 | 418-54-24730 | SHEET | A70001-UP- | |
| 12 | 01435-01225 | BOLT | A70001-UP- | |
| 13 | 01435-01016 | BOLT | A70001-UP- | |
| 14 | 417-54-24640 | COVER | A70001-UP- | |
| 15 | 01435-01016 | BOLT | A70001-UP- | |
| 16 | 418-54-24790 | BRACKET, R.H. | A70001-UP- | |
| 17 | 418-54-24730 | SHEET | A70001-UP- | |
| 18 | 01435-01225 | BOLT | A70001-UP- | |
| 19 | 417-54-24630 | LATCH | A70001-UP- | |
| 20 | 415-54-11630 | PIN | A70001-UP- | |
| 21 | 04205-10622 | PIN | A70001-UP- | |
| 22 | 01641-20608 | WASHER | A70001-UP- | |
| 23 | 04052-10633 | PIN, SNAP | A70001-UP- | |
| 24 | 417-54-24610 | SPRING | A70001-UP- | |
| 25 | 417-54-24620 | STRIKER | A70001-UP- | |
| 26 | 418-54-24570 | PLATE | A70001-UP- | |
| 27 | 01584-01210 | NUT | A70001-UP- | |
| F1 - QUANTITY IS 4 ON EARLIER MODELS. | ||||
