| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-24510 | SHEET | A80001-UP- | |
| 2 | 416-54-24160 | PLATE, LEFT | A80001-UP- | |
| 3 | 416-54-24170 | PLATE, RIGHT | A80001-UP- | |
| 4 | 417-54-24520 | PLATE | A80001-UP- | |
| 5 | 01435-01225 | BOLT | A80001-UP- | |
| 6 | 01584-01210 | NUT | A80001-UP- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180 3l s/n a80001 up
- Guard
- Fig. m4220 02a0 front fender mud guard
Поиск по каталогу

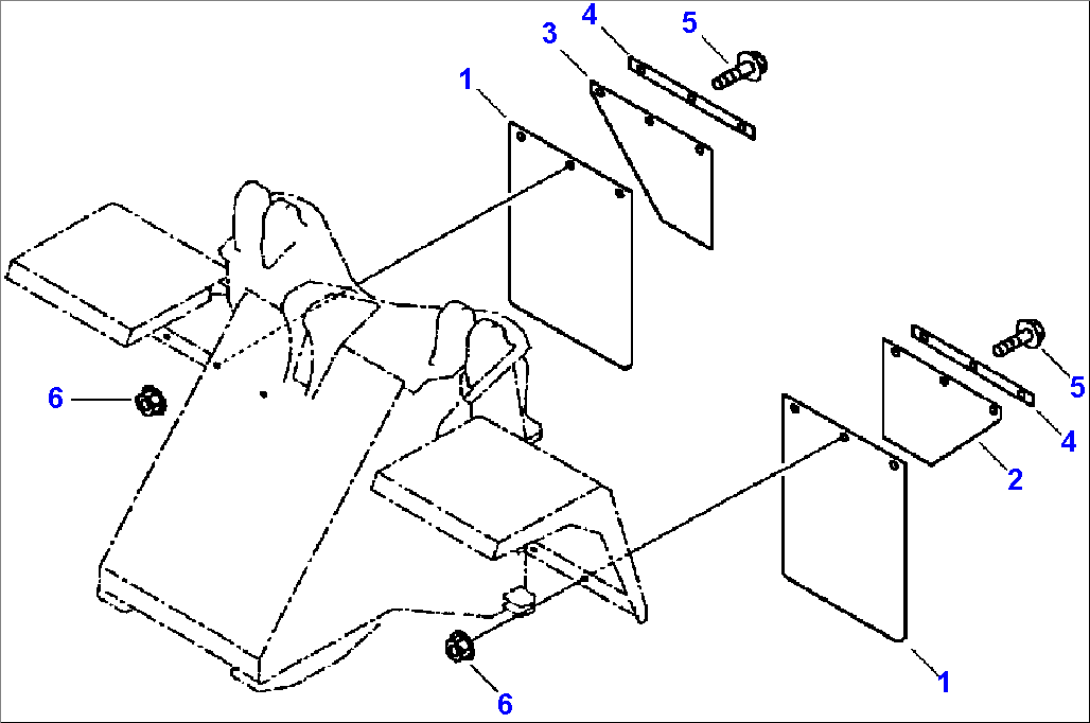

FIG. M4220-02A0 FRONT FENDER - MUD GUARD
