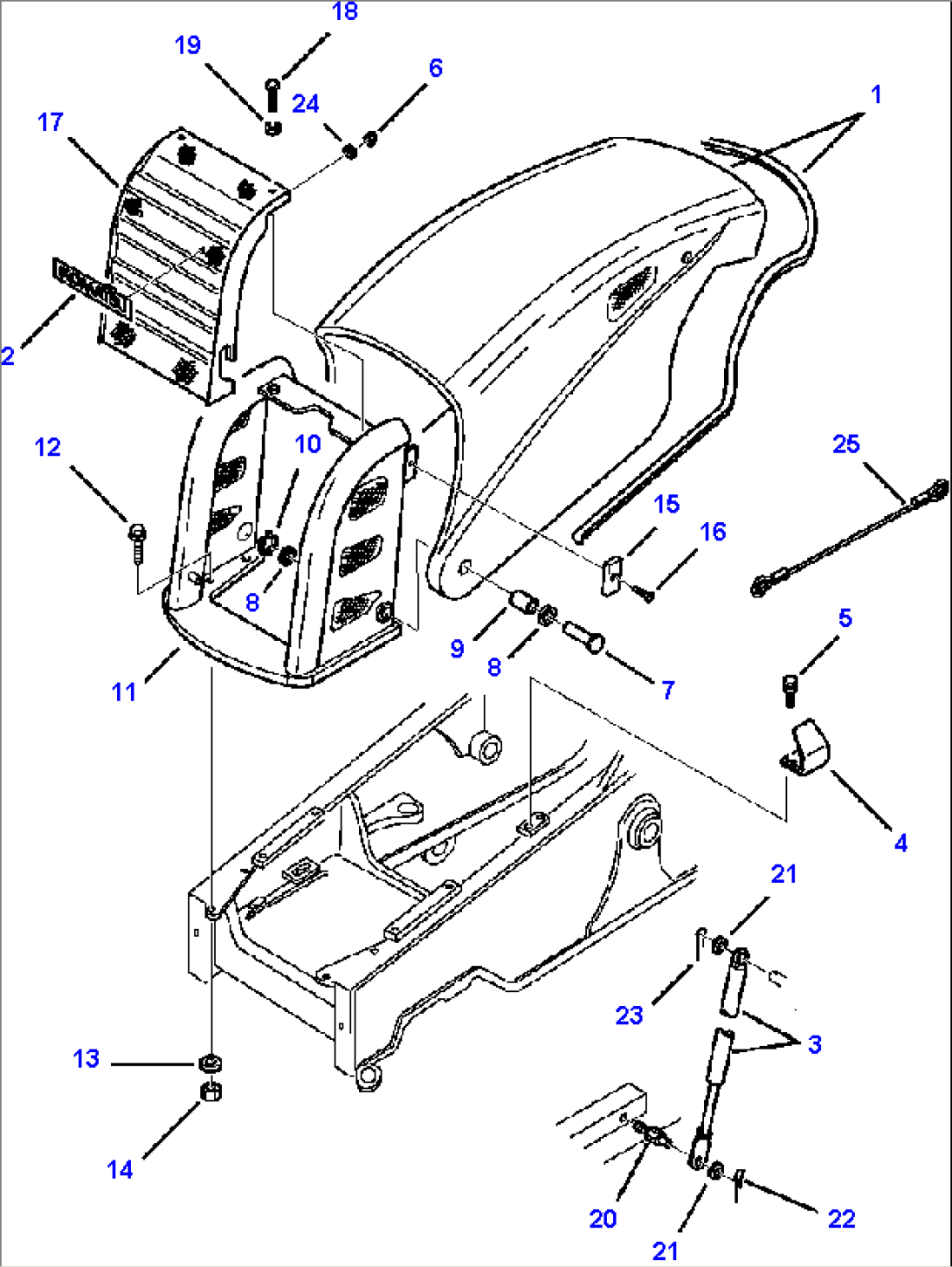

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HOOD, ENGINE (SEE FIG. M5000-01A1) | A60029-- | ||
| 2 | 312648863 | PLATE, KOMATSU | A60029-- | |
| 3 | 816211495 | CYLINDER, HOOD LIFT | A60029-- | |
| 4 | 312605696 | GUIDE, LOWER HOOD | A60029-- | |
| 5 | 01024-80820 | BOLT. SEMS | A60029-- | |
| 6 | 801880205 | NUT, LOCK | A60029-- | |
| 7 | 312648803 | PIN, HINGE | A60029-- | |
| 8 | 802080024 | WASHER | A60029-- | |
| 9 | 805630039 | BUSHING, PIN | A60029-- | |
| 10 | 802250025 | RING, SNAP | A60029-- | |
| 11 | 312648073 | GUARD, RADIATOR | A60029-- | |
| 12 | 01024-81250 | BOLT, SEMS | A60029-- | |
| 13 | 01643-31232 | WASHER | A60029-- | |
| 14 | 801880212 | NUT, LOCK | A60029-- | |
| 15 | 312648834 | SLIDER, HOOD | A60029-- | |
| 16 | 801200649 | BOLT | A60029-- | |
| 17 | 312468074 | GRILLE, FRONT | A60029-- | |
| 18 | 801014093 | BOLT | A60029-- | |
| 19 | 01643-31032 | WASHER | A60029-- | |
| 20 | 312648807 | PIN, BOTTOM | A60029-- | |
| 21 | 01643-30823 | WASHER | A60029-- | |
| 22 | 802620110 | PIN, COTTER | A60029-- | |
| 23 | 802610027 | PIN, COTTER | A60029-- | |
| 24 | 01641-20508 | WASHER | A60029-- | |
| 25 | CABLE, TIE (SEE FIG. C1200-01A0) | A60029-- |
