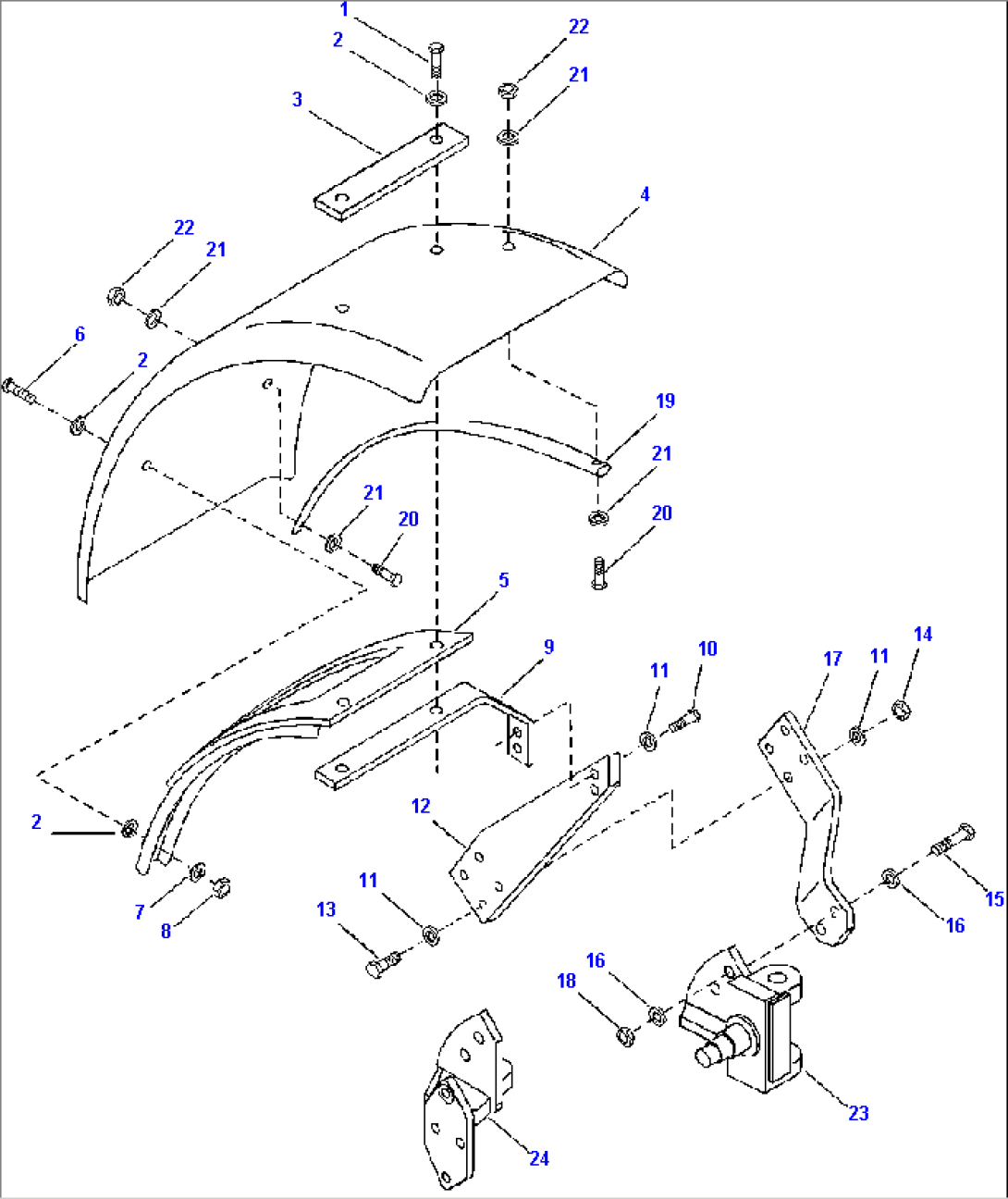

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 24 862 R1 | BOLT | ||
| 2 | 25 555 R1 | WASHER, FLAT | ||
| 3 | 1435 165 H1 | BAR, FENDER MOUNTING | ||
| 4 | 1433 727 H2 | FENDER, FRONT | ||
| 5 | 1434 905 H91 | BRACKET WELDMENT - R.H. | ||
| 1434 904 H91 | BRACKET WELDMENT - L.H. | |||
| 6 | 24 861 R1 | BOLT | ||
| 7 | 120 384 | WASHER, LOCK | ||
| 8 | 359 787 C1 | NUT, LOCK | ||
| 9 | 1434 903 H1 | BRACKET, FENDER | ||
| 10 | 24 862 R1 | BOLT | ||
| 11 | 25 546 R1 | WASHER, FLAT | ||
| 12 | 1434 906 H1 | BRACKET, FENDER SUPPORT | ||
| 13 | 24 864 R1 | BOLT | ||
| 14 | 9412 230 | NUT, LOCK | ||
| 15 | 24 890 R1 | BOLT | ||
| 16 | 25 538 R1 | WASHER, FLAT | ||
| 17 | 1435 130 H1 | BRACKET, FENDER MOUNTING | ||
| 18 | 9413 983 | NUT, LOCK | ||
| 19 | 1437 336 H1 | STAY, FENDER | ||
| 20 | 160 541 | BOLT | ||
| 21 | 120 392 | WASHER, FLAT | ||
| 22 | 21 222 R1 | NUT, LOCK | ||
| 23 | SPINDLE, NON-AWD (SEE FIG. S5230-01A1) | |||
| 24 | ARM, STEERING - AWD (SEE FIG. S5230-01A4) |
