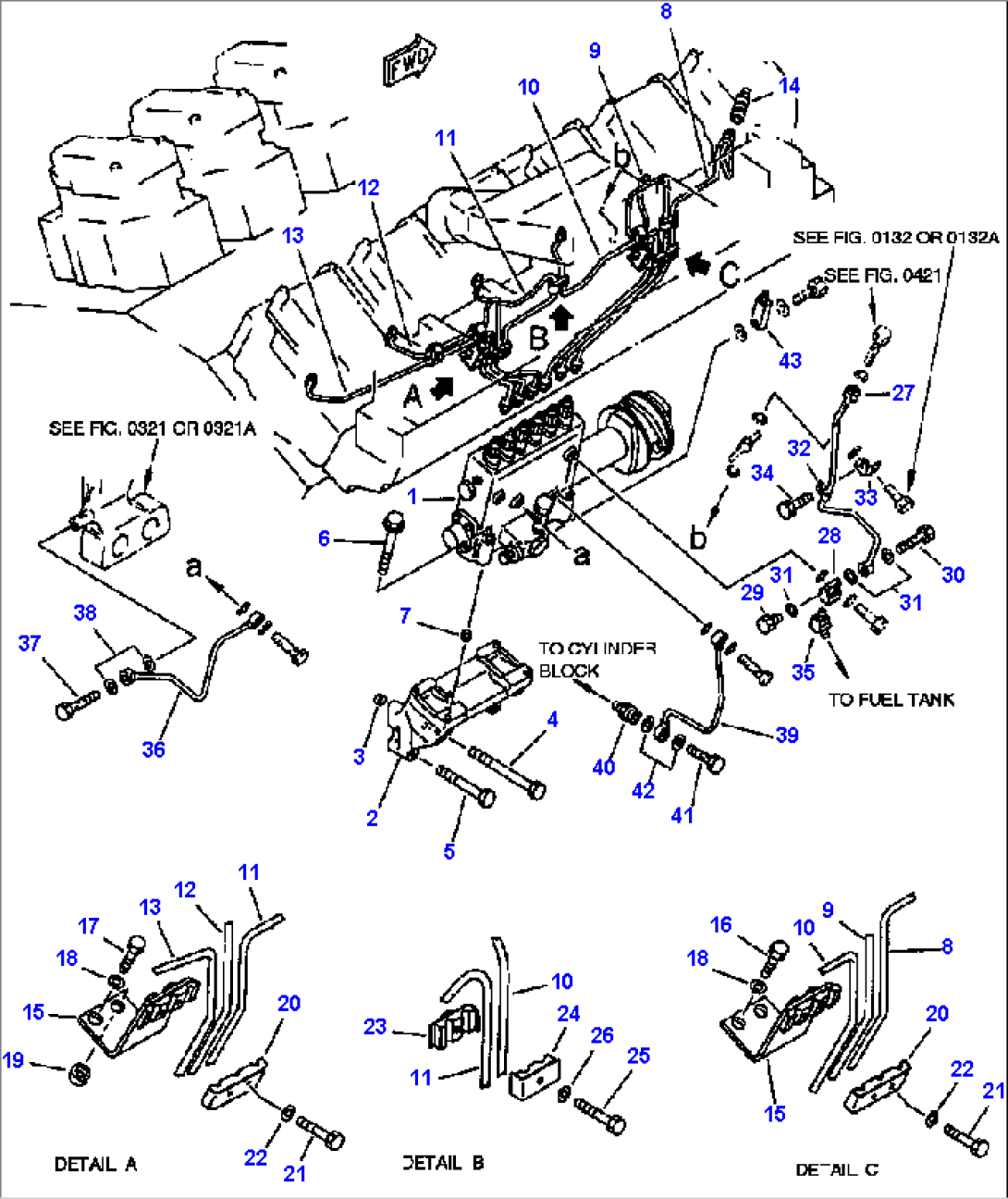

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | INJECTION PUMP ASS'Y, R.H. (SEE PG E1-024) | |||
| 2 | 6215-71-6110 | BRACKET | ||
| 3 | 6210-41-2430 | PIN | ||
| 4 | 01010-31095 | BOLT | ||
| 5 | 01011-31065 | BOLT | ||
| 6 | 01437-01090 | BOLT | ||
| 7 | 6210-41-2430 | PIN | ||
| 8 | 6215-71-5110 | TUBE, INJECTION, NO.1 | ||
| 9 | 6215-71-5120 | TUBE, INJECTION, NO.2 | ||
| 10 | 6215-71-5130 | TUBE, INJECTION, NO.3 | ||
| 11 | 6215-71-5140 | TUBE, INJECTION, NO.4 | ||
| 12 | 6215-71-5150 | TUBE, INJECTION, NO.5 | ||
| 13 | 6215-71-5160 | TUBE, INJECTION, NO.6 | ||
| 14 | 6215-71-9780 | COVER | ||
| 15 | 6215-71-4350 | CLAMP | ||
| 16 | 01010-31020 | BOLT | ||
| 17 | 01010-31025 | BOLT | ||
| 18 | 01641-01016 | WASHER | ||
| 19 | 22D-62-12120 | WASHER | ||
| 20 | 6215-71-5370 | CLAMP | ||
| 21 | 01010-30635 | BOLT | ||
| 22 | 01640-20610 | WASHER | ||
| 23 | 6162-73-5510 | CLAMP, WITH THREAD | ||
| 24 | 6162-73-5520 | CLAMP | ||
| 25 | 01010-30625 | BOLT | ||
| 26 | 01640-20610 | WASHER | ||
| 27 | 6215-71-5331 | TUBE | ||
| 28 | 6215-71-8530 | JOINT | ||
| 29 | 600-311-6720 | PLUG | ||
| 30 | 07206-30508 | BOLT, JOINT | ||
| 31 | 07005-00812 | GASKET | ||
| 32 | 04434-50510 | CLIP | ||
| 33 | 6215-71-2710 | STAY | ||
| 34 | 01010-31016 | BOLT | ||
| 35 | 22W-44-15120 | NIPPLE | ||
| 36 | 6215-71-5610 | TUBE, INLET | ||
| 37 | 07206-30710 | BOLT, JOINT | ||
| 38 | 07005-01012 | GASKET | ||
| 39 | 6215-71-5710 | TUBE, OUTLET | ||
| 40 | 6112-53-7720 | NIPPLE | ||
| 41 | 07206-31014 | BOLT, JOINT | ||
| 42 | 07005-01412 | GASKET | ||
| 43 | 6128-71-1932 | JOINT | ||
| F1 - PART OF GASKET SET 6215-K2-4002. | ||||
