| Item | Part No. | Part Name | Qty | Serial No. |

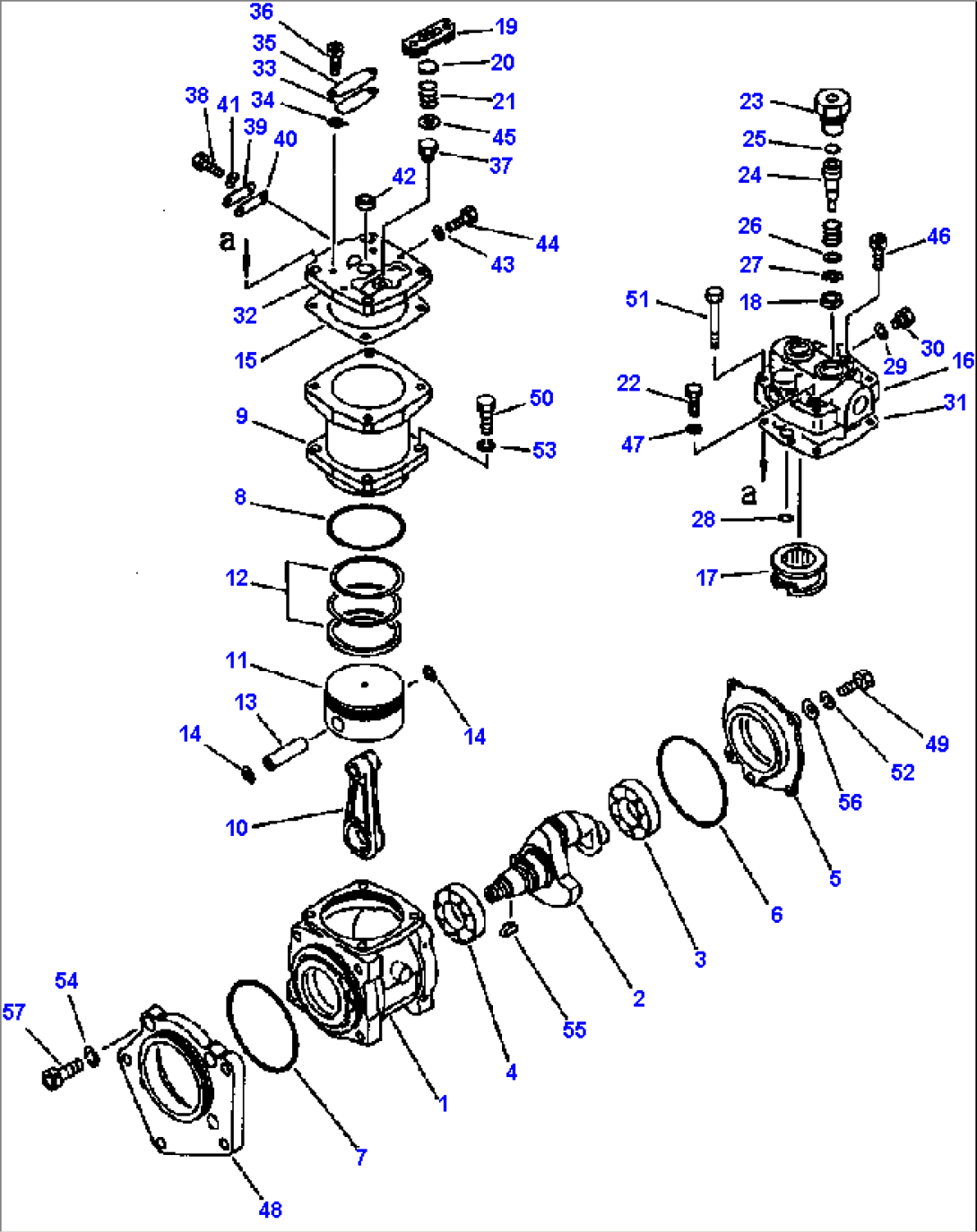

| 6215-81-3201 | AIR COMPRESSOR ASS'Y | |||
| 1 | DK487000-6500 | CRANKCASE | ||
| 2 | DK487008-9301 | CRANKSHAFT | ||
| 3 | DK035620-6000 | BEARING | ||
| 4 | DK036202-0700 | BEARING | ||
| 5 | DK487003-7301 | COVER, BEARING | ||
| 6 | DK487061-4300 | O-RING | ||
| 7 | DK487061-4500 | O-RING | ||
| 8 | DK487061-3700 | O-RING | ||
| 9 | DK487001-4200 | CYLINDER | ||
| 10 | DK487013-2100 | CONNECTING ROD ASS'Y | ||
| 11 | DK487009-2000 | PISTON | ||
| 12 | DK487010-4720 | RING KIT, PISTON | ||
| 13 | DK487012-0900 | PIN, PISTON | ||
| 14 | DK016110-1610 | RING, SNAP | ||
| 15 | DK487020-2200 | GASKET | ||
| DK487018-8720 | CYLINDER HEAD ASS'Y | |||
| DK487018-6721 | CYLINDER HEAD ASS'Y | |||
| 16 | DK487018-6701 | HEAD, CYLINDER | ||
| 17 | DK487650-0101 | SLEEVE | ||
| 18 | DK487654-0000 | SEAT | ||
| 19 | DK487033-0720 | CAGE, VALVE | ||
| 20 | DK487026-2200 | PLATE | ||
| 21 | DK487027-1500 | SPRING | ||
| 22 | DK487088-1000 | BOLT | ||
| 23 | DK487021-3620 | UNLOADER VALVE ASS'Y | ||
| 24 | DK487023-1200 | ROD | ||
| 25 | DK487061-4200 | O-RING | ||
| 26 | DK487351-1100 | WASHER | ||
| 27 | DK016110-2240 | RING, SNAP | ||
| 28 | DK016530-1040 | O-RING | ||
| 29 | DK026514-1840 | GASKET | ||
| 30 | DK029111-4060 | PLUG | ||
| 31 | DK487020-3100 | GASKET | ||
| 32 | DK487029-0822 | PLATE ASS'Y | ||
| 33 | DK487026-2300 | DELIVERY VALVE ASS'Y | ||
| 34 | DK487351-1000 | WASHER | ||
| 35 | DK487033-0800 | STOPPER | ||
| 36 | DK010234-0820 | BOLT | ||
| 37 | DK487088-1300 | BOLT | ||
| 38 | DK010206-1440 | BOLT | ||
| 39 | DK487029-0500 | PLATE | ||
| 40 | DK487020-2900 | GASKET | ||
| 41 | DK014110-6440 | WASHER, SPRING | ||
| 42 | DK487076-0200 | CAP | ||
| 43 | DK026506-1040 | GASKET | ||
| 44 | DK131420-0400 | BOLT | ||
| 45 | DK487351-0700 | WASHER | ||
| 46 | DK010206-4020 | BOLT | ||
| 47 | DK014020-6140 | WASHER | ||
| 48 | DK487073-1700 | FLANGE | ||
| 49 | DK156603-4400 | BOLT | ||
| 50 | DK010110-2570 | BOLT | ||
| 51 | DK010110-5570 | BOLT | ||
| 52 | DK014110-8440 | WASHER, SPRING | ||
| 53 | DK014111-0440 | WASHER, SPRING | ||
| 54 | DK487351-0800 | WASHER, SPRING | ||
| 55 | DK025805-1610 | KEY | ||
| 56 | DK014020-8140 | WASHER | ||
| 57 | DK487017-1600 | BOLT | ||
| F1 - PART OF GASKET SET 6215-K8-4001. | ||||
