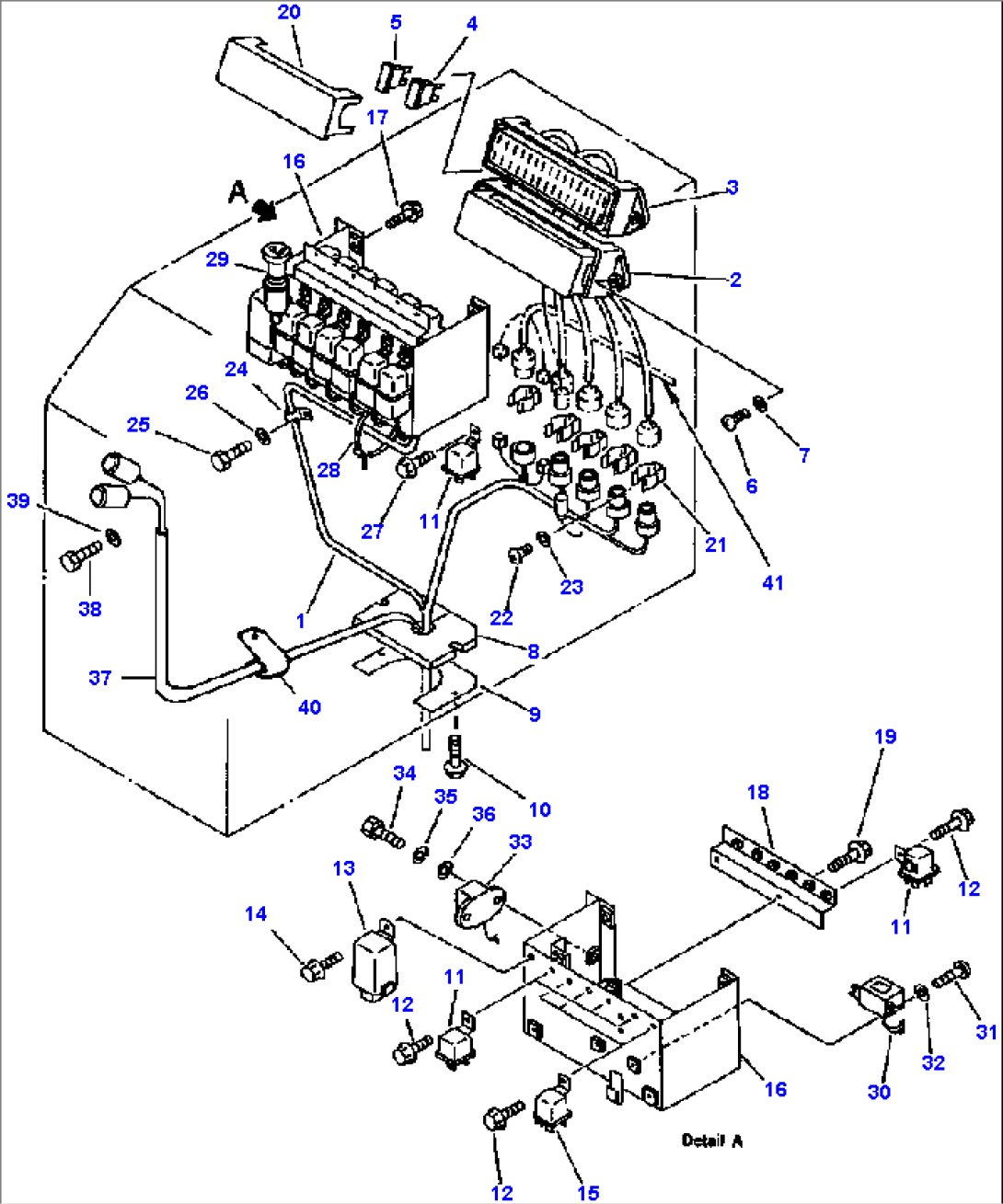

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-A2230 | WIRING HARNESS | ||
| 421-06-11970 | DIODE | |||
| 2 | 242-06-12420 | BOX ASSY | ||
| 3 | 424-06-12431 | BOX ASSY | ||
| 4 | 22W-06-13160 | FUSE | ||
| 5 | 283-06-16190 | FUSE | ||
| 6 | 01220-40516 | SCREW | ||
| 7 | 01641-20508 | WASHER | ||
| 8 | 427-S33-2880 | SHEET | ||
| 9 | 418-944-1420 | PLATE | ||
| 10 | 01435-00612 | BOLT | ||
| 11 | 287-06-16410 | RELAY | ||
| 287-06-16420 | BRACKET | |||
| 12 | 01435-00610 | BOLT | ||
| 13 | 08077-22401 | FLASHER | ||
| 14 | 01435-00610 | BOLT | ||
| 15 | 421-06-11940 | RELAY | ||
| 287-06-16420 | BRACKET | |||
| 16 | 424-06-11732 | BOX | ||
| 17 | 01435-00612 | BOLT | ||
| 18 | 423-06-11220 | PLATE | ||
| 19 | 01435-00614 | BOLT | ||
| 20 | 283-06-16120 | COVER | ||
| 21 | 08052-02711 | CLIP | ||
| 22 | 01220-40608 | SCREW | ||
| 23 | 01641-20608 | WASHER | ||
| 24 | 08036-01814 | CLIP | ||
| 25 | 01010-81016 | BOLT | ||
| 26 | 01643-31032 | WASHER | ||
| 27 | 01435-00608 | BOLT | ||
| 28 | 08034-00823 | BAND | ||
| 29 | 08319-02400 | LIGHTER | ||
| 30 | 207-06-31160 | BUZZER | ||
| 31 | 01220-40412 | SCREW | ||
| 32 | 01641-20405 | WASHER | ||
| 33 | 423-06-11212 | TIMER, BI-METAL | ||
| 34 | 01010-80612 | BOLT | ||
| 35 | 01602-20619 | WASHER, SPRING | ||
| 36 | 01642-20608 | WASHER | ||
| 37 | 427-06-A2131 | HARNESS, WIRING | ||
| 38 | MM 0 326 | SCREW | ||
| 39 | MM 0 370 | NUT | ||
| 40 | 421-54-15520 | CLIP | ||
| 41 | HARNESS, WIRING (SEE PG 01-044) |
