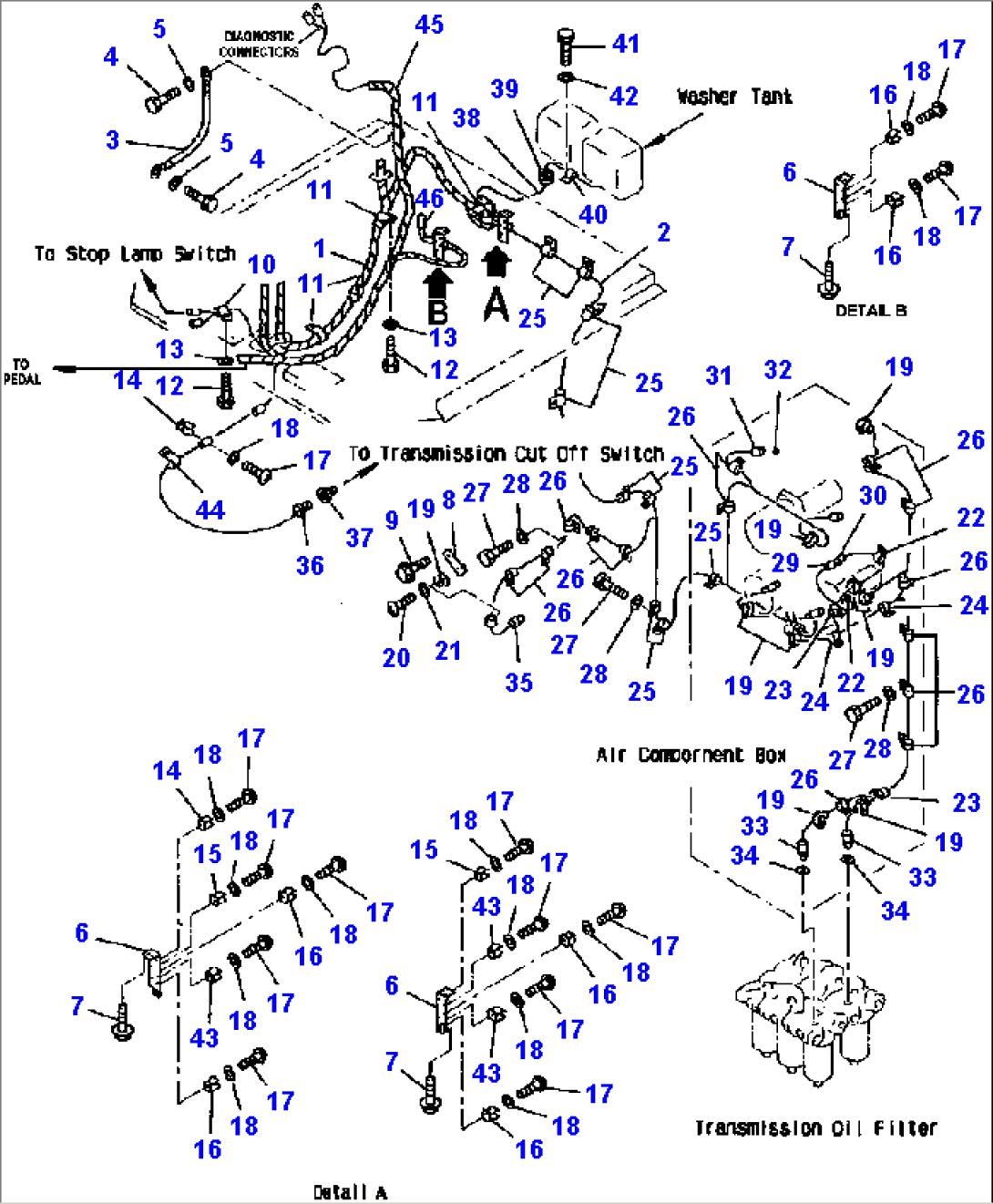

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-A2230 | WIRING HARNESS | ||
| 421-06-11960 | RESISTOR | |||
| 08020-1000 | DIODE | |||
| 08034-20519 | BAND | |||
| 426-06-12190 | CAP | |||
| 6151-81-4180 | CAP | |||
| 2 | 427-06-12146 | WIRE ASS'Y | ||
| 3 | 08028-12065 | CABLE | ||
| 4 | 01010-81020 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 427-06-A2110 | PLATE | ||
| 7 | 01435-01220 | BOLT | ||
| 8 | 427-06-12460 | BRACKET | ||
| 9 | 01435-00614 | BOLT | ||
| 10 | 362-43-18780 | CLIP | ||
| 11 | 08036-13014 | CLIP | ||
| 12 | 01010-81020 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 08052-01711 | CLIP | ||
| 15 | 08052-02411 | CLIP | ||
| 16 | 08052-02711 | CLIP | ||
| 17 | 01220-40608 | SCREW | ||
| 18 | 01641-20608 | WASHER | ||
| 19 | 08052-01711 | CLIP | ||
| 20 | 01220-40608 | SCREW | ||
| 21 | 01641-20608 | WASHER | ||
| 22 | 362-43-18780 | CLIP | ||
| 23 | 424-06-12710 | CLIP | ||
| 24 | 424-06-12720 | CLIP | ||
| 25 | 426-35-11250 | CLIP | ||
| 26 | 425-70-13120 | CLIP | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 7861-99-1400 | SENSOR, AIR GAUGE | ||
| 30 | 7861-99-1500 | SENSOR, EMERGENCY BRAKE | ||
| 31 | 7861-99-1600 | SENSOR, BRAKE CHAMBER | ||
| 32 | 07002-12034 | O-RING | ||
| 33 | 7861-99-1940 | SENSOR | ||
| 34 | 425-16-11230 | WASHER | ||
| 35 | 7819-11-2310 | SENSOR, ENGINE SPEED | ||
| 36 | 425-06-15110 | SWITCH, TRANSMISSION CUT OFF | ||
| 37 | 21T-38-11390 | BUSHING | ||
| 38 | 428-06-12360 | WIRE ASSY, WINDOW WASHER | ||
| 39 | 08037-03614 | GROMMET | ||
| 40 | 425-70-13120 | CLIP | ||
| 41 | 01010-81020 | BOLT | ||
| 42 | 01643-31032 | WASHER | ||
| 43 | 08052-01911 | CLIP | ||
| 44 | 08036-10814 | CLIP | ||
| 45 | 427-06-A2131 | HARNESS, WIRING | ||
| MM 0 330 | SCREW, PAN HEAD - M3x.5x16 | |||
| MM 0 370 | NUT, HEX - M3 | |||
| 30 239 R1 | WASHER, FLAT - M3 | |||
| 46 | 427-06-A2141 | HARNESS, WIRING |
