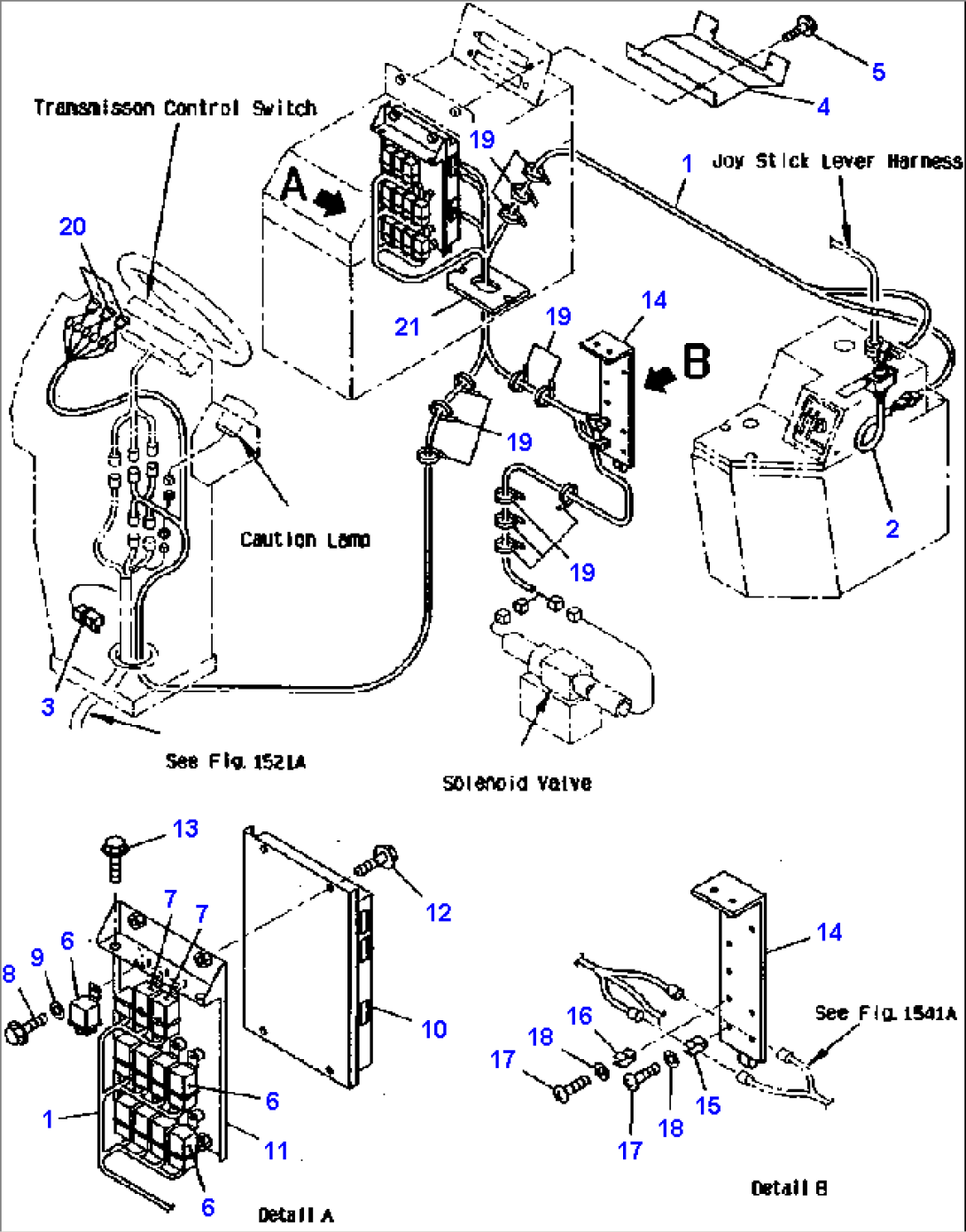

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S33-2974 | WIRING HARNESS | ||
| 08020-10000 | DIODE | |||
| 600-842-2130 | RESISTOR, 5.62K OHM | |||
| 2 | 421-06-11561 | SWITCH JOY STICK, ON-OFF | ||
| 3 | 287-06-16410 | RELAY | ||
| 4 | 427-S33-2690 | PLATE | ||
| 5 | 01435-00610 | BOLT | ||
| 6 | 287-06-16410 | RELAY | ||
| 7 | 421-06-11940 | RELAY | ||
| 8 | 01435-00610 | BOLT | ||
| 9 | 01643-30623 | WASHER | ||
| 10 | 7823-48-5001 | CONTROLLER | ||
| 11 | 427-S33-2980 | BRACKET | ||
| 12 | 01435-00816 | BOLT | ||
| 13 | 01435-01016 | BOLT | ||
| 14 | 427-06-A2110 | PLATE | ||
| 15 | 08052-02711 | CLIP | ||
| 16 | 08052-02411 | CLIP | ||
| 17 | 01220-40608 | SCREW | ||
| 18 | 01641-20608 | WASHER | ||
| 19 | 08034-20834 | BAND | ||
| 20 | 22T-05-15630 | DIODE, LED | ||
| 21 | 427-S33-A110 | SHEET |
