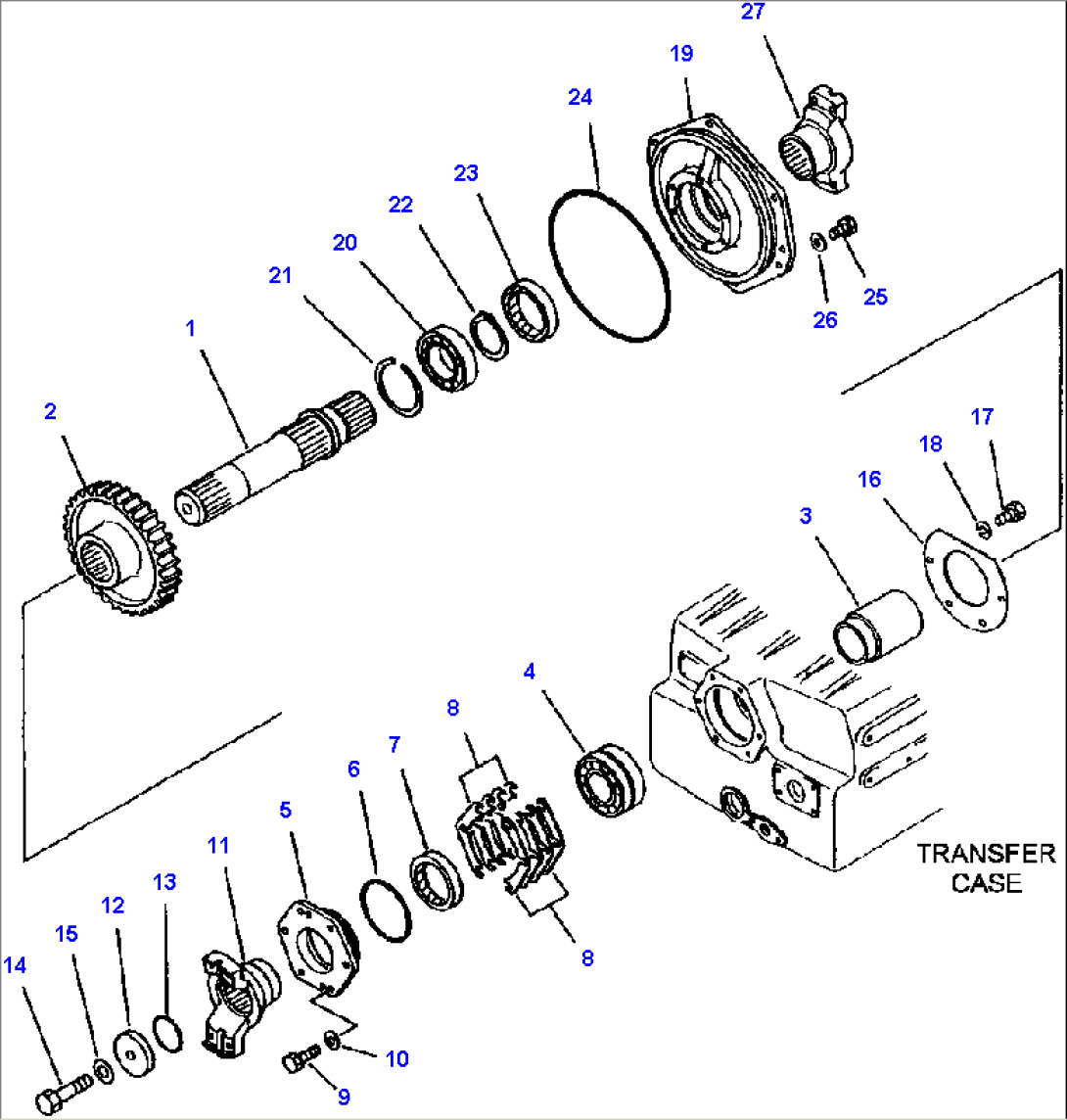

| Item | Part No. | Part Name | Qty | Serial No. |
| | TRANSMISSION ASSEMBLY (SEE PG 02-008) | | |
| 1 | 424-15-13310 | SHAFT, TRANSMISSION OUTPUT | | |
| 2 | 424-15-13232 | GEAR | | |
| 3 | 424-15-13260 | COLLAR | | |
| 4 | 424-15-13390 | BEARING, ROLLER | | |
| 5 | 424-15-13161 | CAGE | | |
| 6 | 07000-15125 | O-RING, TRANSFER GEAR | | |
| 7 | 07012-10090 | SEAL, TRANSFER GEAR OIL | | |
| 8 | 424-15-05040 | KIT, TRANSFER GEAR SHIM | | |
| (NSS) | SHIM - 0.006 IN. (0.15 MM) | | |
| (NSS) | SHIM - 0.008 IN. (0.20 MM) | | |
| (NSS) | SHIM - 0.012 IN. (0.30 MM) | | |
| (NSS) | SHIM - 0.039 IN. (1.00 MM) | | |
| 9 | 01010-81235 | BOLT | | |
| 10 | 01643-31232 | WASHER | | |
| 11 | 424-15-13270 | COUPLING | | |
| 12 | 424-15-13280 | RETAINER | | |
| 13 | 07000-05065 | O-RING, COUPLING | | |
| 14 | 01050-52095 | BOLT, COUPLING MOUNTING | | |
| 15 | 01643-32060 | WASHER | | |
| 16 | 424-15-13122 | PLATE | | |
| 17 | 01010-81225 | BOLT | | |
| 18 | 01602-21236 | WASHER, LOCK | | |
| 19 | 424-15-13142 | CAGE | | |
| 20 | 421-15-13380 | BEARING, ROLLER | | |
| 21 | 04077-00130 | RING, RETAINER | | |
| 22 | 04064-07525 | RING, RETAINER | | |
| 23 | 07012-10095 | SEAL, OUTPUT SHAFT OIL | | |
| 24 | 07000-05310 | O-RING, TRANSFER CASE CAGE | | |
| 25 | 01010-81235 | BOLT, MOUNTING TRANSFER CASE CAGE | | |
| 26 | 01643-31232 | WASHER | | |
| 27 | 424-15-13250 | COUPLING | | |
| | | | |
| | F1 - ALSO INCLUDED IN SERVICE KIT 424-15-05121. | | |
| | | | |
