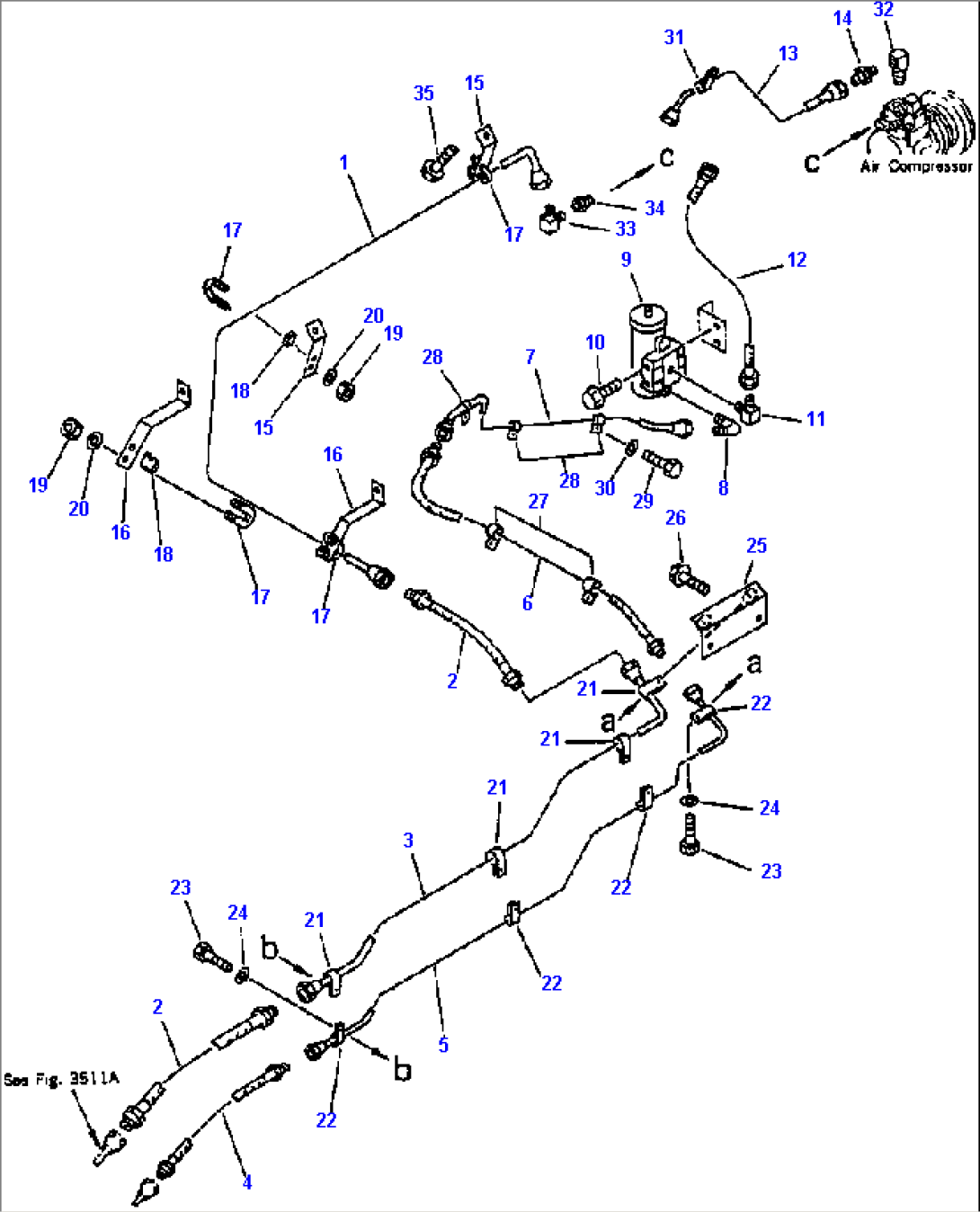

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-35-A2130 | TUBE | ||
| 2 | 423-35-11720 | HOSE | ||
| 3 | 427-35-12630 | TUBE | ||
| 4 | 428-35-11170 | HOSE | ||
| 5 | 427-35-A2140 | TUBE | ||
| 6 | 427-35-12660 | HOSE | ||
| 7 | 427-35-12320 | TUBE | ||
| 8 | 421-09-12540 | ELBOW | ||
| 9 | AIR GOVERNOR ASS'Y (SEE PG 03-072) | |||
| 10 | 01435-00875 | BOLT | ||
| 11 | 19M-60-15320 | ELBOW | ||
| 12 | 427-35-12840 | HOSE | ||
| 13 | 427-35-A2121 | TUBE | ||
| 14 | 423-09-12110 | CONNECTOR | ||
| 15 | 427-35-12610 | PLATE | ||
| 16 | 427-35-12670 | PLATE | ||
| 17 | 07283-21529 | CLIP | ||
| 18 | 07283-51523 | SEAT | ||
| 19 | 426-09-11140 | NUT | ||
| 20 | 01643-30823 | WASHER | ||
| 21 | 424-06-12740 | CLIP | ||
| 22 | 425-70-13120 | CLIP | ||
| 23 | 01010-51020 | BOLT | ||
| 24 | 01643-31032 | WASHER | ||
| 25 | 427-35-11461 | BRACKET | ||
| 26 | 01435-01020 | BOLT | ||
| 27 | 08035-01510 | CLIP | ||
| 28 | 427-W90-12320 | CLIP | ||
| 29 | 01010-51020 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 427-W90-1330 | CLIP | ||
| 32 | 565-44-15331 | JOINT | ||
| 33 | 421-09-12550 | ELBOW | ||
| 34 | 581-95-12150 | BUSHING | ||
| 35 | 01011-61065 | BOLT |
