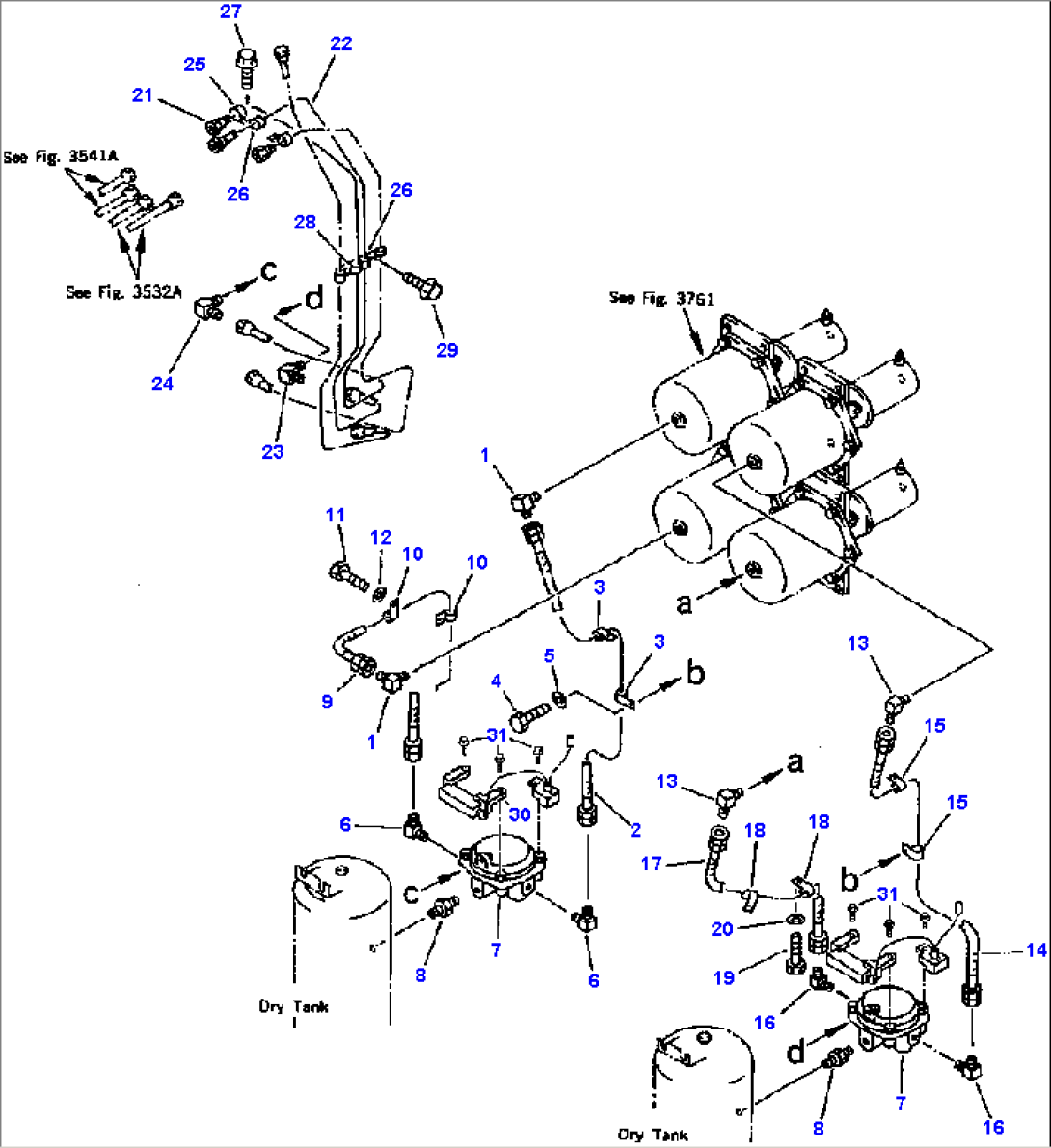

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-35-12730 | ELBOW | ||
| 2 | 07102-20309 | HOSE | ||
| 3 | 08036-01814 | CLIP | ||
| 4 | 01010-81016 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 424-35-12730 | ELBOW | ||
| 7 | 427-35-15130 | VALVE ASS'Y, RELAY | ||
| 8 | 07325-30400 | NIPPLE | ||
| 9 | 423-35-11770 | HOSE | ||
| 10 | 08036-01814 | CLIP | ||
| 11 | 01010-81016 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 424-35-12730 | ELBOW | ||
| 14 | 07102-20309 | HOSE | ||
| 15 | 08036-01814 | CLIP | ||
| 16 | 424-35-12730 | ELBOW | ||
| 17 | 07102-20306 | HOSE | ||
| 18 | 08036-01814 | CLIP | ||
| 19 | 01010-81016 | BOLT | ||
| 20 | 01643-31032 | WASHER | ||
| 21 | 427-35-12540 | TUBE | ||
| 22 | 427-35-12530 | TUBE | ||
| 23 | 428-35-11130 | ELBOW | ||
| 24 | 428-35-11130 | ELBOW | ||
| 25 | 424-06-12740 | CLIP | ||
| 26 | 424-06-12740 | CLIP | ||
| 27 | 01435-01016 | BOLT | ||
| 28 | 424-06-12740 | CLIP | ||
| 29 | 01435-01016 | BOLT | ||
| 30 | 427-N81-1110 | HEATER ASS'Y | ||
| 31 | 01010-50840 | BOLT |
