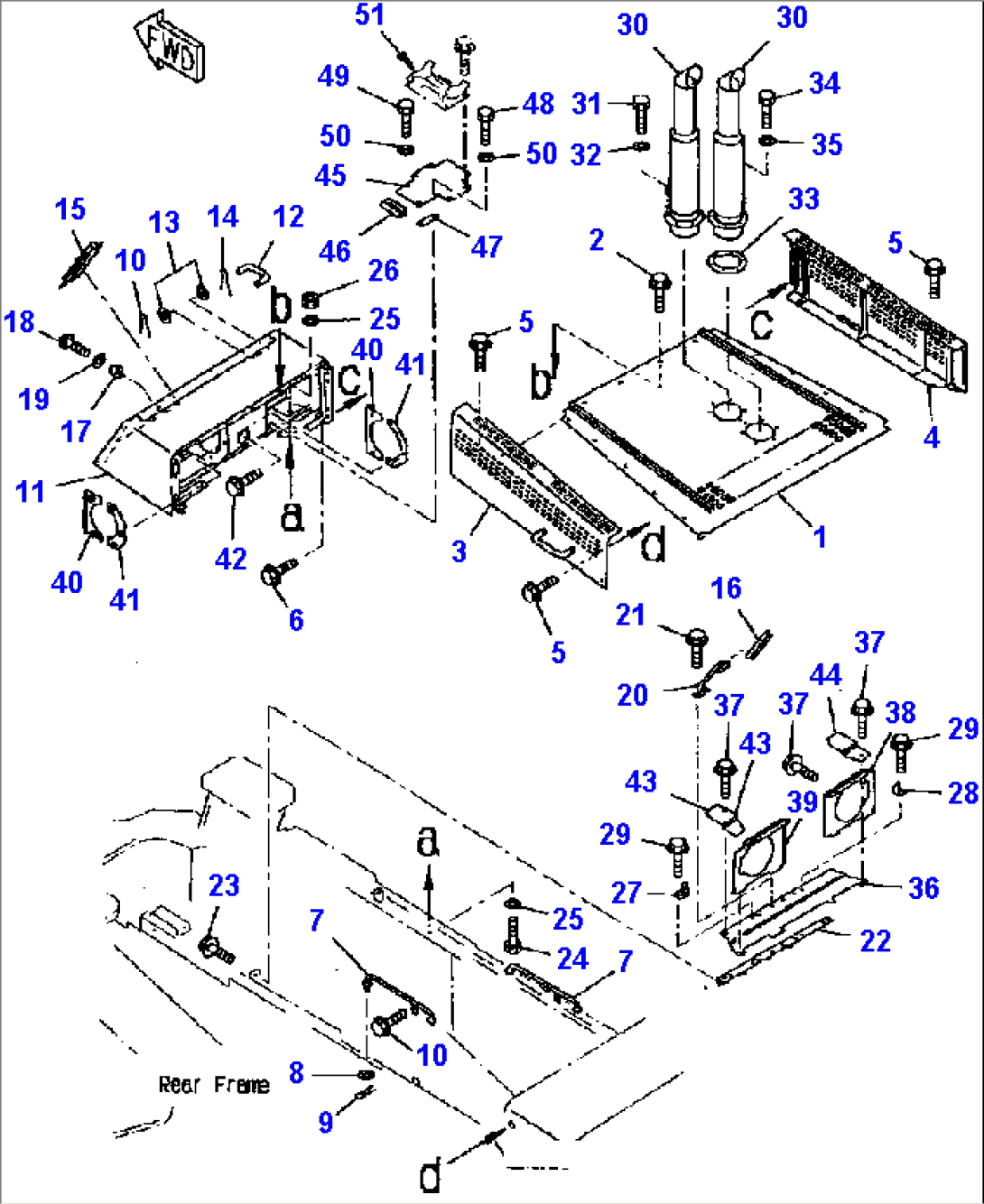

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-A3310 | HOOD | ||
| 2 | 10435-01225 | BOLT | ||
| 3 | 427-54-11122 | HOOD, L. H | ||
| 4 | 427-54-11132 | HOOD, R. H | ||
| 5 | 01435-01220 | BOLT | ||
| 6 | 01435-01230 | BOLT | ||
| 7 | 427-54-11890 | ROD | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 04050-13020 | PIN, COTTER | ||
| 10 | 01435-01220 | BOLT | ||
| 11 | 427-54-11618 | SUPPORT | ||
| 12 | 426-06-11280 | BAR | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 04050-13020 | PIN, COTTER | ||
| 15 | 427-54-11650 | SEAL, DOOR | ||
| 16 | 427-54-11640 | SEAL, DOOR | ||
| 17 | 418-60-15150 | STOPPER | ||
| 18 | 01220-40630 | SCREW | ||
| 19 | 01602-20619 | WASHER, SPRING | ||
| 20 | 427-54-11620 | SUPPORT | ||
| 21 | 01435-01225 | BOLT | ||
| 22 | 427-54-11632 | ANGLE | ||
| 23 | 01435-01230 | BOLT | ||
| 24 | 01010-81445 | BOLT | ||
| 25 | 01643-31445 | WASHER | ||
| 26 | 01580-11411 | NUT | ||
| 27 | 427-54-11660 | BRACKET, L. H | ||
| 28 | 427-54-11740 | BRACKET, R. H | ||
| 29 | 01435-01225 | BOLT | ||
| 30 | 427-02-11121 | STACK, MUFFLER | ||
| 31 | 01010-81240 | BOLT | ||
| 32 | 01642-31232 | WASHER | ||
| 33 | 427-02-11130 | PLATE | ||
| 34 | 01010-81255 | BOLT | ||
| 35 | 01643-31232 | WASHER | ||
| 36 | 427-54-13420 | COVER | ||
| 37 | 01435-01225 | BOLT | ||
| 38 | 427-54-13430 | COVER | ||
| 39 | 427-54-13440 | COVER | ||
| 40 | 427-54-13560 | PLATE | ||
| 41 | 427-54-13570 | PLATE | ||
| 42 | 01435-01016 | BOLT | ||
| 43 | 427-54-13580 | COVER | ||
| 44 | 427-54-13590 | COVER | ||
| 45 | 427-54-13860 | PLATE | ||
| 46 | 427-54-13790 | SEAL | ||
| 47 | 427-54-13870 | PLATE | ||
| 48 | 01010-81230 | BOLT | ||
| 49 | 01010-81225 | BOLT | ||
| 50 | 01643-31232 | WASHER | ||
| 51 | BRACKET (SEE PG 01-004) |
