| Item | Part No. | Part Name | Qty | Serial No. |
| CAB, OPERATORS (SEE PG 05-098) | ||||

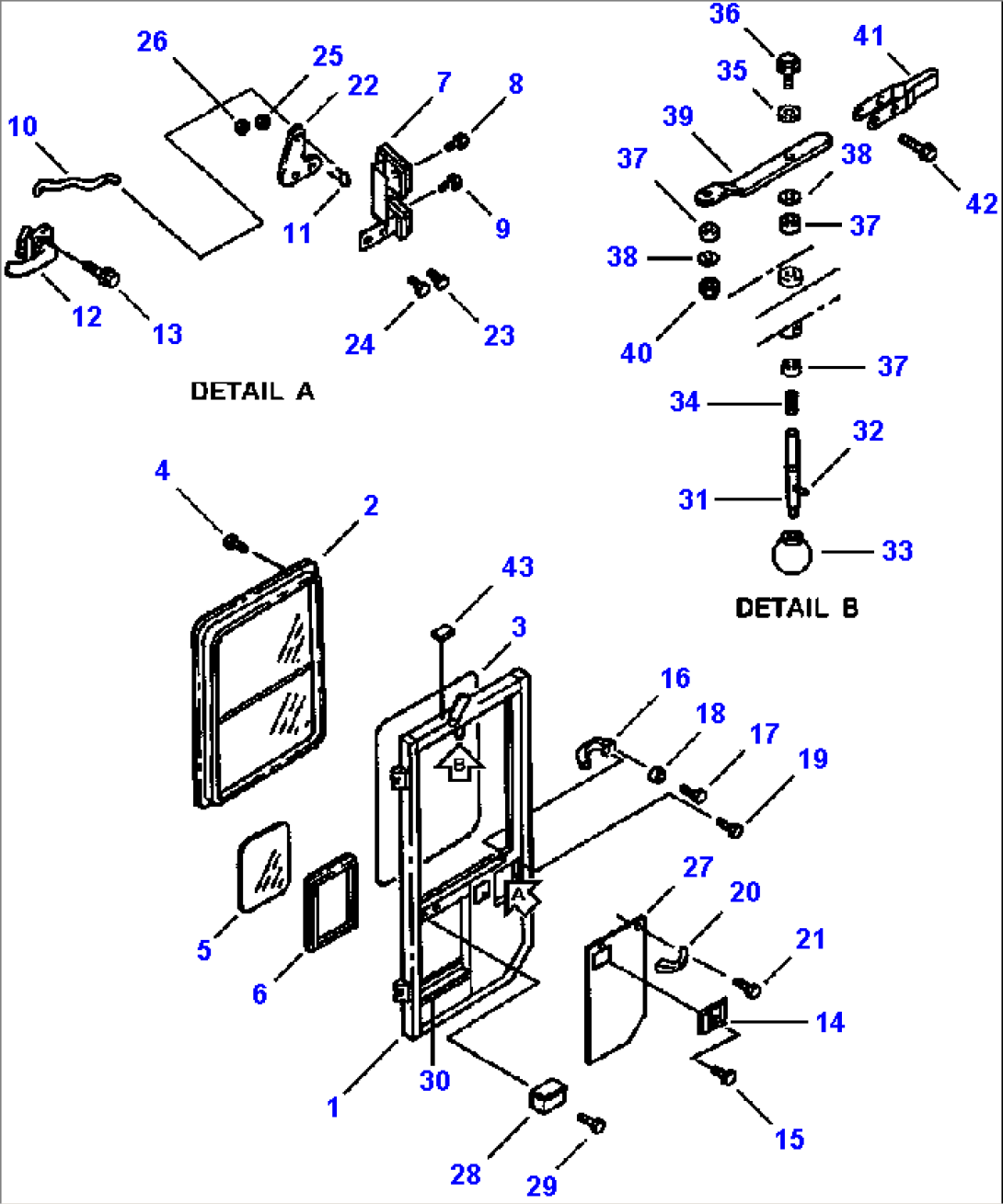

| 421-925-A900 | DOOR ASSEMBLY - RIGHT | |||
| 421-925-A990 | DECAL, KOMATSU | |||
| 1 | (NSS) | DOOR WELDMENT | ||
| 2 | 421-925-A730 | WINDOW, SLIDING | ||
| 3 | 421-925 A740 | SEAL, WINDOW - 69 IN. LONG | ||
| 4 | 159 920 | SCREW, MOUNTING | ||
| 5 | 421-925-A750 | GLASS | ||
| 6 | 421-925-A310 | STRIP, WEATHER - 51.2 IN. LONG | ||
| 7 | 421-925-AA10 | LATCH, DOOR | ||
| 8 | 180 020 | BOLT | ||
| 9 | 25 483 R1 | BOLT | ||
| 10 | 421-925-A920 | ROD, LATCH | ||
| 11 | 421-925-A930 | CLIP, ROD RETAINER | ||
| 12 | 421-925-A940 | HANDLE, INSIDE | ||
| 13 | 443 874 | BOLT, MOUNTING | ||
| 421-09-A1140 | RIVNUT | |||
| 14 | 421-925-A780 | BEZEL | ||
| 15 | 421-09-A1130 | SCREW, MOUNTING | ||
| 421-09-A1140 | RIVNUT | |||
| 16 | 421-925-A790 | HANDLE AND KEY, OUTSIDE | ||
| 17 | 25 483 R1 | BOLT | ||
| 18 | 120 375 | NUT | ||
| 19 | 01010-80612 | BOLT | ||
| 20 | 421-925-A800 | HANDLE, INSIDE | ||
| 21 | 421-09-A1210 | SCREW, MOUNTING | ||
| 426-925-A410 | RIVNUT | |||
| 22 | 421-925-A810 | TRIP, LATCH | ||
| 23 | 180 118 | BOLT | ||
| 24 | 180 075 | BOLT | ||
| 25 | 28 529 R1 | NUT | ||
| 26 | 411 597 R1 | NUT | ||
| 27 | 421-925-A950 | PAD, INSIDE | ||
| 28 | 421-925-A960 | ASHTRAY | ||
| 29 | 443 874 | SCREW | ||
| 421-09-A1140 | RIVNUT | |||
| 30 | 421-925-A540 | TRIM, EDGE - 12 IN. LONG | ||
| 421-925-A970 | KEY | |||
| 31 | 421-925-A830 | ROD | ||
| 32 | 421-925-A840 | PIN, ROD | ||
| 33 | 421-925-A980 | KNOB | ||
| 34 | 421-925-A850 | SPRING | ||
| 35 | 421-925-A860 | PLATE | ||
| 36 | 25 480 R1 | BOLT | ||
| 37 | 421-925-A480 | BUSHING | ||
| 38 | 120 388 | WASHER | ||
| 39 | 421-925-A870 | PLATE | ||
| 40 | 9413 979 | NUT | ||
| 41 | 421-925-A880 | SPRING | ||
| 42 | 21 025 R1 | BOLT | ||
| 43 | 421-925-A890 | CUSHION |
