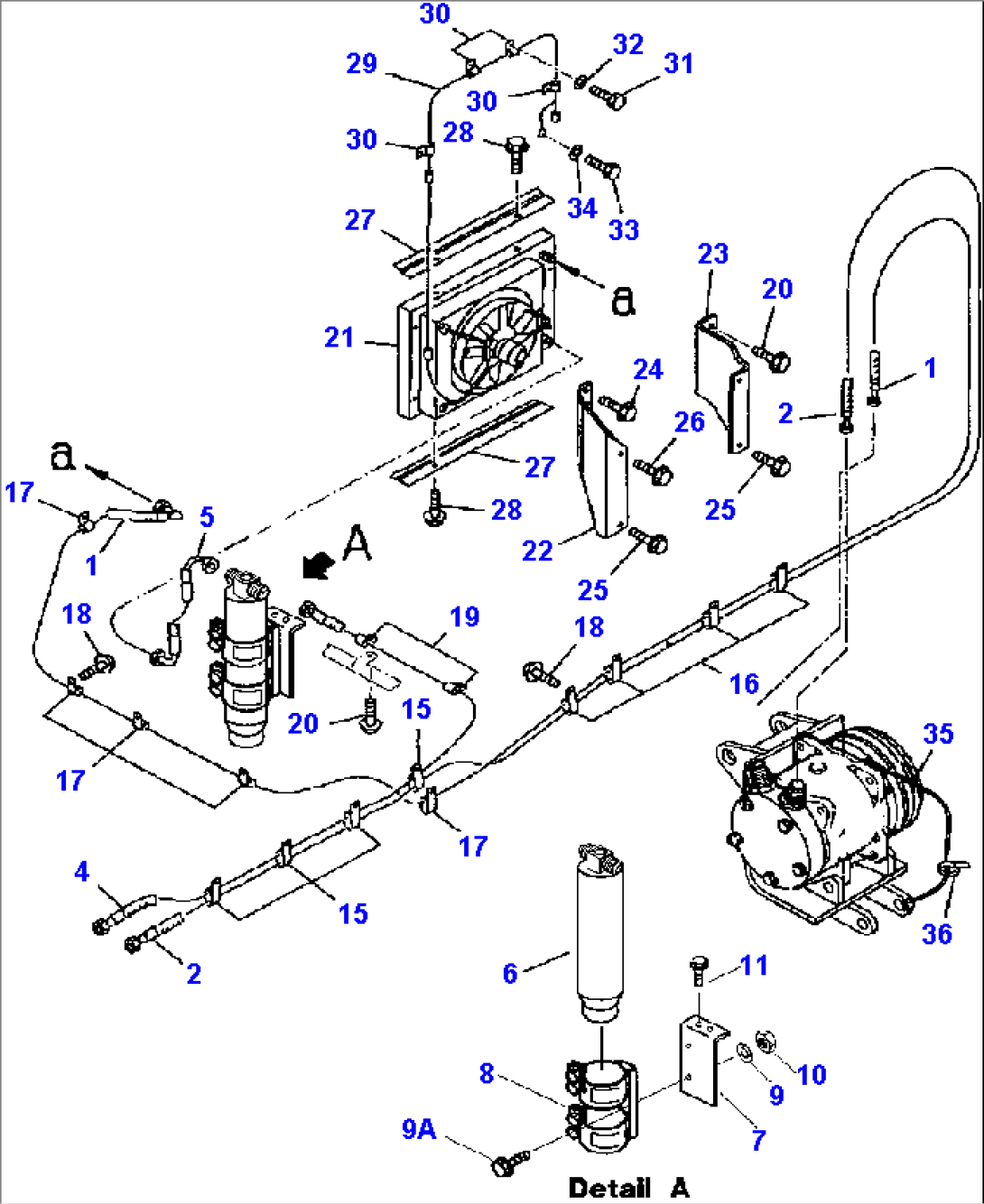

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-07-A1350 | HOSE | ||
| 2 | 427-07-A1360 | HOSE | ||
| 4 | 427-07-A1370 | HOSE | ||
| 5 | 427-07-A1340 | HOSE | ||
| 6 | 427-07-A1120 | RECEIVER TANK | ||
| 7 | 427-07-A1130 | BRACKET | ||
| 8 | 427-07-A1170 | CLAMP | ||
| 9 | 01643-30823 | WASHER | ||
| 9A | 01010-50825 | BOLT | ||
| 10 | 01596-00807 | NUT | ||
| 11 | 01435-01020 | BOLT | ||
| 15 | 04435-52212 | CLIP | ||
| 16 | 04435-51910 | CLIP | ||
| 17 | 04434-51910 | CLIP | ||
| 18 | 01435-01016 | BOLT | ||
| 19 | 04434-51510 | CLIP | ||
| 20 | 01435-01016 | BOLT | ||
| 21 | CONDENSER ASS'Y (SEE PG 05-082) | |||
| 22 | 427-963-1110 | PLATE | ||
| 23 | 427-963-1120 | PLATE | ||
| 24 | 01435-01225 | BOLT | ||
| 25 | 01435-01220 | BOLT | ||
| 26 | 01435-01225 | BOLT | ||
| 27 | 427-54-11410 | BAFFLE | ||
| 28 | 01435-01220 | BOLT | ||
| 29 | 427-S62-1220 | WIRING HARNESS | ||
| 421-06-11970 | DIODE | |||
| 30 | 08036-10810 | CLIP | ||
| 31 | 01010-80612 | BOLT | ||
| 32 | 01643-30623 | WASHER | ||
| 33 | 01010-80816 | BOLT | ||
| 34 | 01643-30823 | WASHER | ||
| 35 | 427-07-A1380 | WIRE ASS'Y | ||
| 36 | 08034-20519 | BAND |
