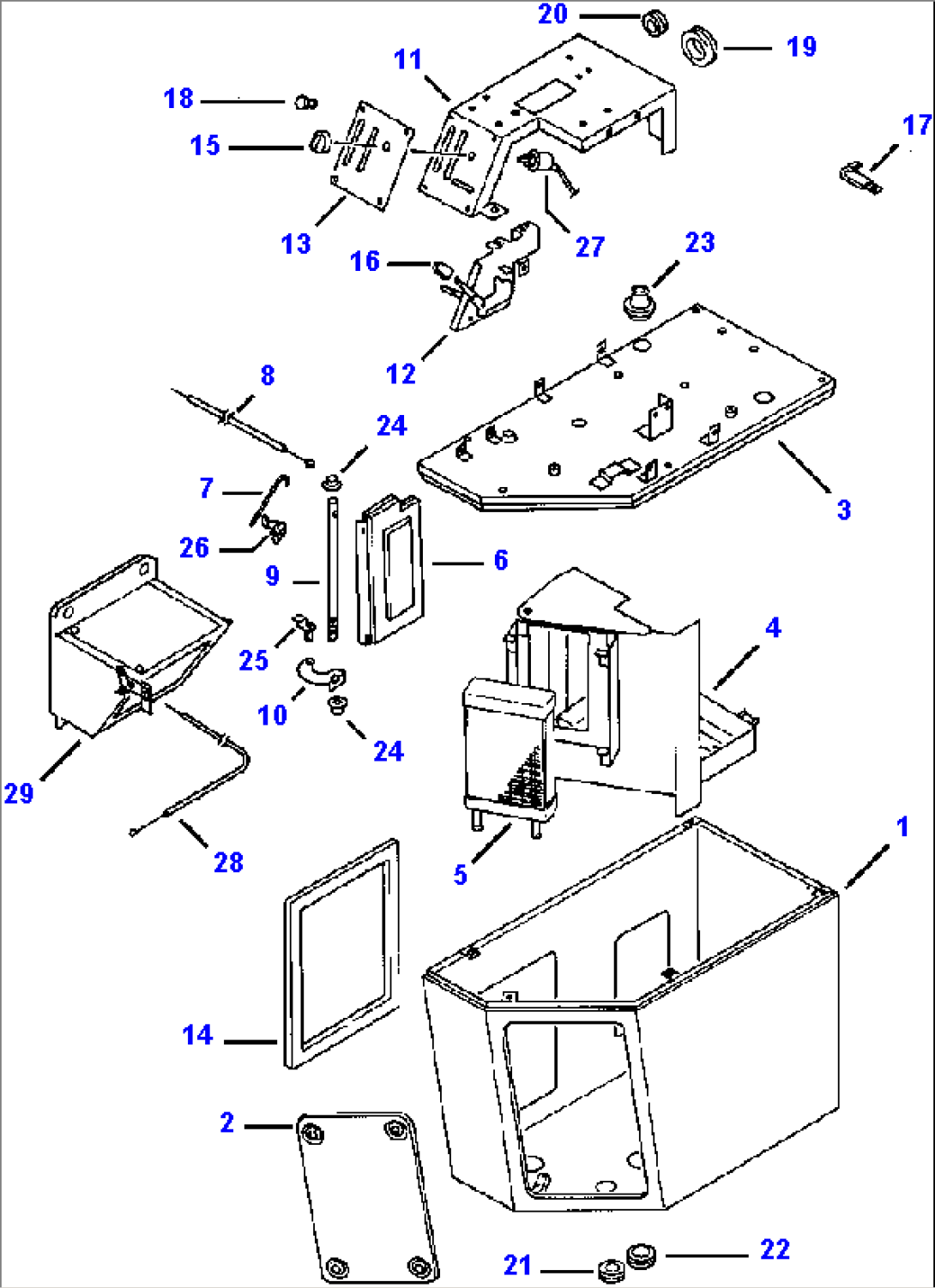

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-T42-1101 | HEATER KIT - 1 OF 3 | |||
| 418-T42-1111 | HEATER ASSEMBLY | |||
| 1 | 418-T42-1131 | HOUSING, HEATER | ||
| 2 | 425-963-1621 | COVER, FRONT | ||
| 3 | 418-T42-1141 | COVER, TOP | ||
| 4 | 418-T42-1150 | CASE, COIL | ||
| 5 | COIL, HEATER (SEE PG 05-158) | |||
| 6 | 425-963-1670 | DAMPER, REAR | ||
| 7 | 425-963-1680 | SHAFT, DAMPER | ||
| 8 | 425-963-1690 | CABLE, CONTROL | ||
| 9 | 425-963-1750 | SHAFT, PIVOT | ||
| 10 | 425-963-1760 | LEVER, CONTROL | ||
| 11 | 425-963-1770 | COVER, CONTROL | ||
| 12 | 425-963-1780 | LEVER, HEATER CONTROL | ||
| 13 | 418-T42-1120 | PANEL, CONTROL | ||
| 14 | 425-963-1830 | PACKING, DAMPER | ||
| 15 | 425-963-1850 | KNOB, BLOWER | ||
| 16 | 425-963-1860 | KNOB, LEVER | ||
| 17 | 425-963-1870 | CLIP, HARNESS | ||
| 18 | 425-963-1880 | CLAMP, PANEL | ||
| 19 | 425-963-1960 | GROMMET | ||
| 20 | 425-963-1970 | GROMMET | ||
| 21 | 425-963-2120 | GROMMET | ||
| 22 | 425-963-2130 | GROMMET | ||
| 23 | 425-963-2170 | GROMMET | ||
| 24 | 425-963-2190 | INSERT | ||
| 25 | 425-963-2210 | BUSHING | ||
| 26 | 425-963-2220 | CLAMP | ||
| 27 | 425-963-2260 | SWITCH, HEATER BLOWER | ||
| 28 | 425-963-2280 | CABLE, DAMPER | ||
| 29 | 425-963-1170 | DAMPER, FRONT |
