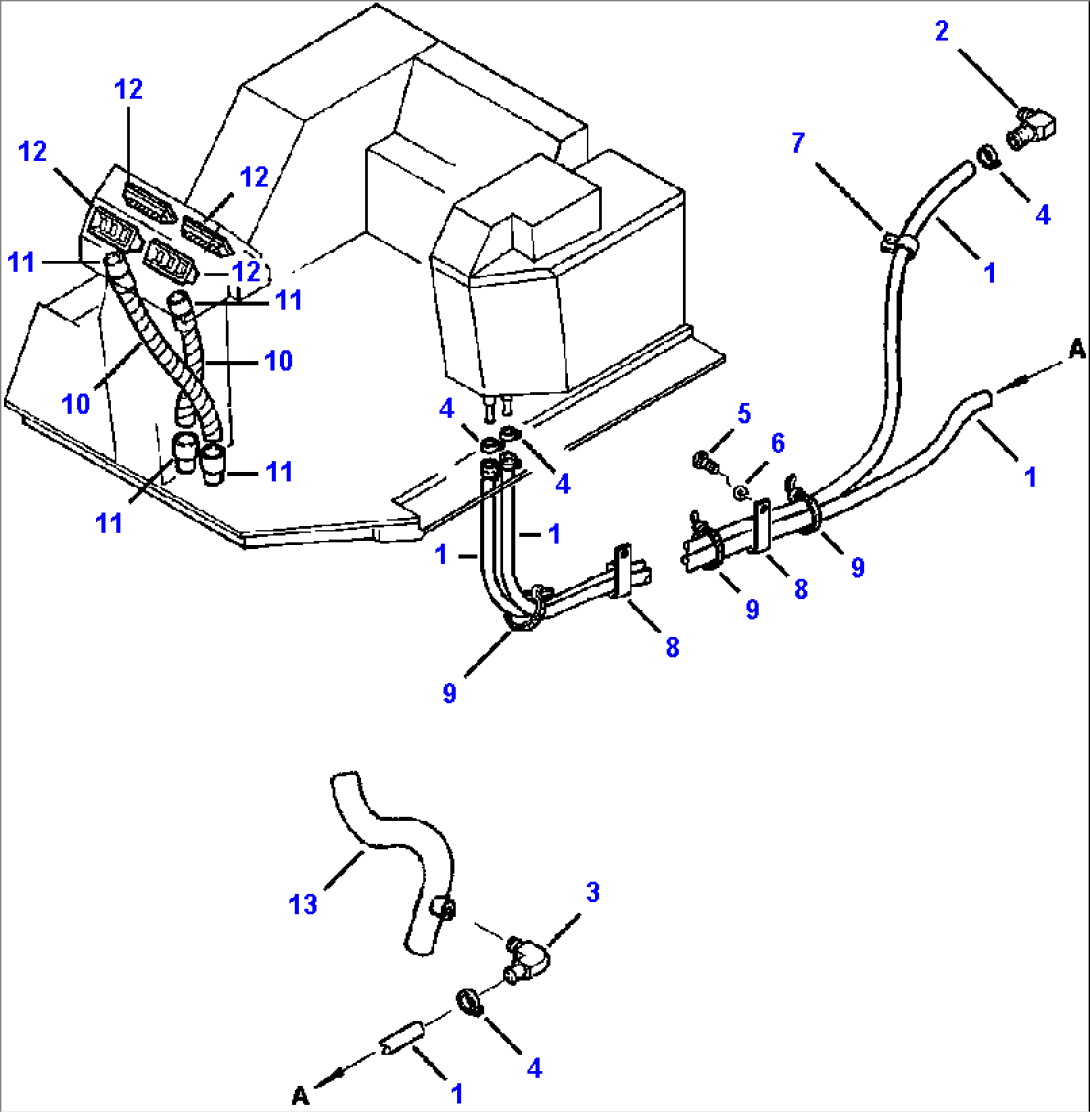

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-942-A110 | HOSE | ||
| 2 | 418-07-15110 | ELBOW, AT ENGINE | ||
| 3 | 6137-81-3221 | ELBOW, AT INLET TUBE | ||
| 4 | 07281-00259 | CLAMP, HOSE | ||
| 5 | 01010-51220 | BOLT | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | 421-07-11550 | CLIP | ||
| 8 | 08036-02514 | CLIP | ||
| 9 | 306 132 C2 | BAND | ||
| 10 | 421-07-12831 | HOSE | ||
| 11 | 421-07-12810 | CONNECTOR | ||
| 12 | 421-07-12512 | GRILLE | ||
| 13 | TUBE, INLET (SEE PG 01-038) |
