| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-07-A1140 | PLATE, FAN ASSEMBLY | ||
| 2 | 425-963-AE31 | BLOWER ASSEMBLY | ||
| 3 | 425-963-A850 | BOLT, #10-32 X 1/2 TORX TRUSS | ||
| 4 | 425-963-AA90 | RELAY | ||
| 5 | 425-963-AB50 | THERMOSTAT | ||
| 6 | 418-942-A290 | BOLT, #10-32 X 1/2 CAP SOCKET |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa800 2lc s/n a20020 up
- Frame, guard & superstructure
- Fig no. 5664 heater and air conditioning unit fan assembly
Поиск по каталогу

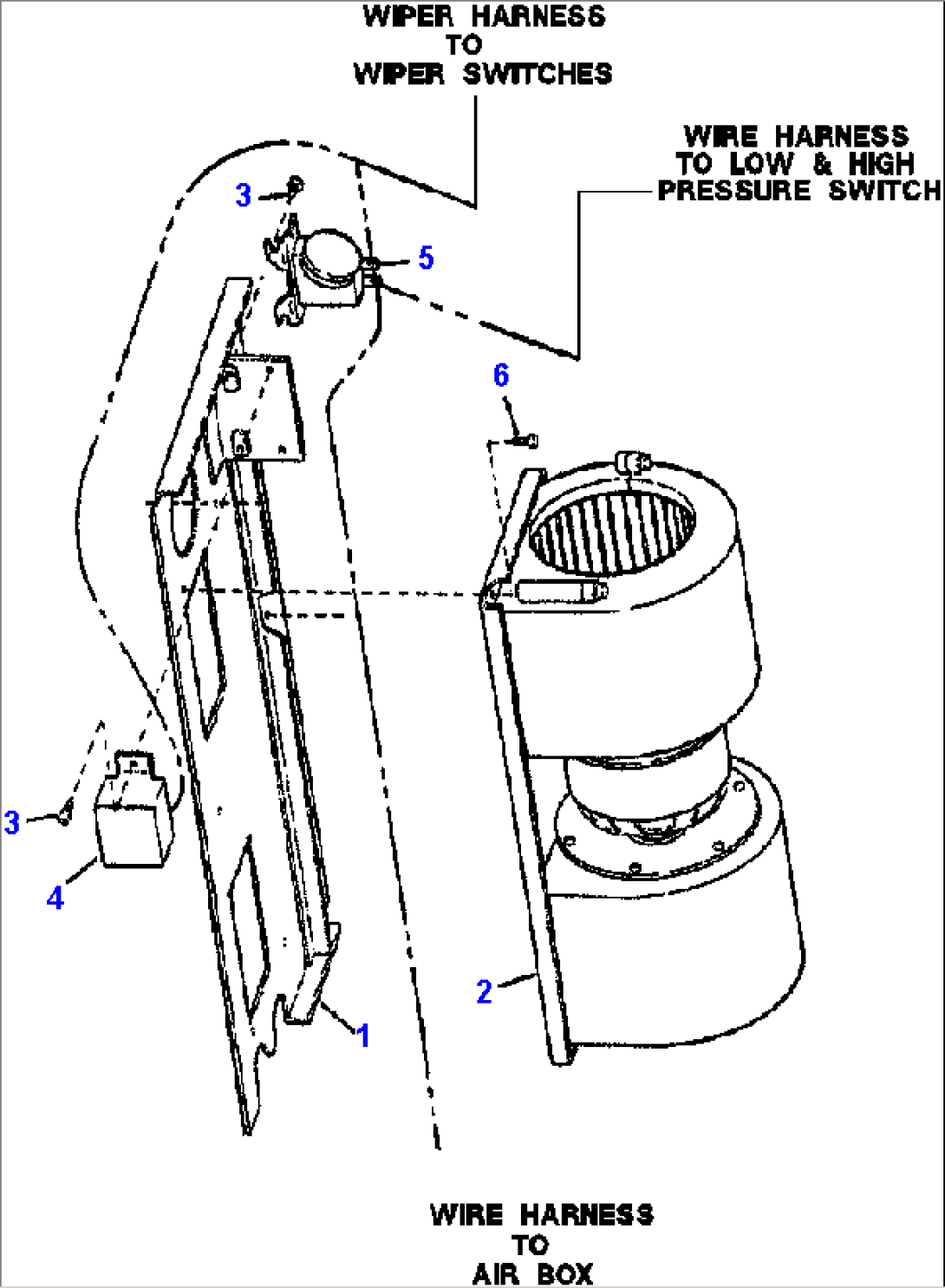

FIG NO. 5664 HEATER AND AIR CONDITIONING UNIT FAN ASSEMBLY
