| Item | Part No. | Part Name | Qty | Serial No. |

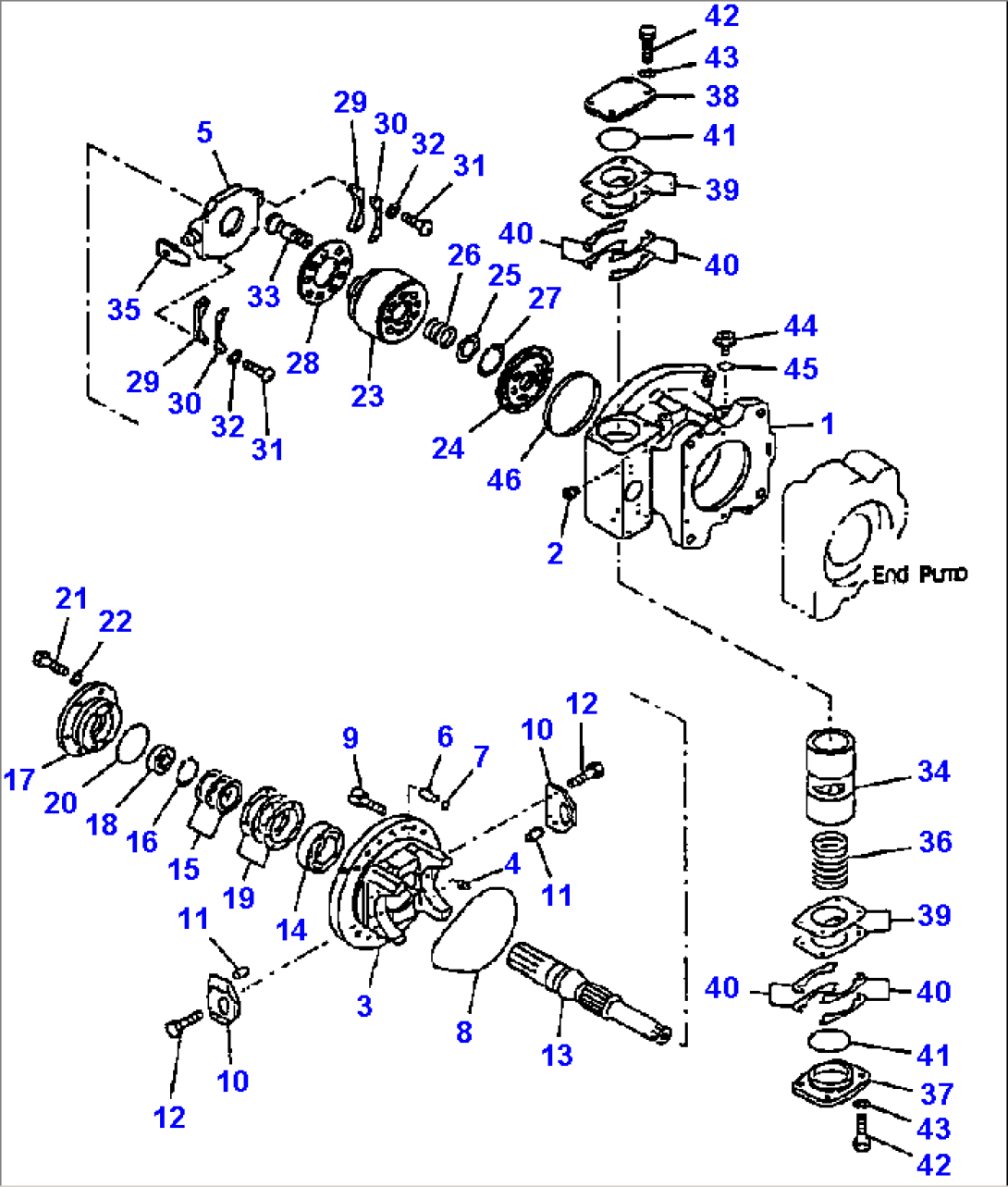

| PUMP ASS'Y (SEE PG 06-066) | ||||
| 708-45-61104 | PUMP SUB ASS'Y | |||
| 708-25-00350 | CASE ASS'Y, FRONT | |||
| 1 | (NSS) | CASE, FRONT | ||
| 2 | (NSS) | PLUG | ||
| 708-25-00051 | CRADLE ASS'Y, FRONT | |||
| 708-25-00520 | CRADLE SUB ASS'Y, FRONT | |||
| 3 | (NSS) | CRADLE, FRONT | ||
| 4 | (NSS) | PLUG | ||
| 5 | 708-25-23411 | ROCKER, CAM | ||
| 6 | 708-25-12330 | JOINT | ||
| 7 | 07000-22015 | O-RING | ||
| 8 | 708-25-62360 | O-RING | ||
| 9 | 708-25-12350 | BOLT | ||
| 10 | 708-25-12360 | PLATE | ||
| 11 | 04020-00820 | PIN, DOWEL | ||
| 12 | 01010-30816 | BOLT | ||
| 13 | 708-25-52710 | SHAFT, FRONT | ||
| 14 | 708-2L-22150 | BEARING | ||
| 15 | 708-25-05010 | WASHER KIT | ||
| (NSS) | WASHER, 2.0MM | |||
| (NSS) | WASHER, 2.1MM | |||
| (NSS) | WASHER, 2.2MM | |||
| 16 | 708-25-12790 | RING, SNAP | ||
| 17 | 708-25-12811 | HOUSING | ||
| 18 | 708-25-52860 | SEAL, OIL | ||
| 19 | 708-25-05130 | SHIM KIT | ||
| (NSS) | SHIM, 0.1MM | |||
| (NSS) | SHIM, 0.2MM | |||
| 20 | 07000-32080 | O-RING | ||
| 21 | 01010-30820 | BOLT | ||
| 22 | 01643-30823 | WASHER | ||
| 708-25-00401 | BLOCK ASS'Y, CLYINDER | |||
| 23 | 708-25-13151 | BLOCK, CYLINDER | ||
| 24 | 708-25-13611 | PLATE, VALVE | ||
| 25 | 708-25-13120 | WASHER | ||
| 26 | 708-25-13130 | SPRING | ||
| 27 | 708-25-13140 | RING, SNAP | ||
| 28 | 708-25-13422 | RETAINER, SHOE | ||
| 29 | 708-25-05061 | SPACER KIT | ||
| (NSS) | SPACER, 11.540MM | |||
| (NSS) | SPACER, 11.560MM | |||
| (NSS) | SPACER, 11.575MM | |||
| 30 | 708-25-13441 | RETAINER | ||
| 31 | 708-25-13470 | SCREW | ||
| 32 | 01643-30623 | WASHER | ||
| 33 | 708-25-13314 | PISTON SUB ASS'Y | ||
| 34 | 708-25-14112 | PISTON | ||
| 35 | 708-25-14121 | SLIDER | ||
| 36 | 708-25-14130 | SPRING | ||
| 37 | 708-25-14140 | CAP | ||
| 38 | 708-25-64150 | CAP | ||
| 39 | 708-25-05050 | SHIM KIT | ||
| (NSS) | SHIM, 0.1MM | |||
| (NSS) | SHIM, 0.2MM | |||
| (NSS) | SHIM, 0.5MM | |||
| 40 | (NSS) | SHIM, 0.1MM | ||
| 41 | 07000-32065 | O-RING | ||
| 42 | 01016-31035 | BOLT | ||
| 43 | 01643-31032 | WASHER | ||
| 44 | 07044-12412 | PLUG | ||
| 45 | 07002-32434 | O-RING | ||
| 46 | 708-25-13630 | RING |
