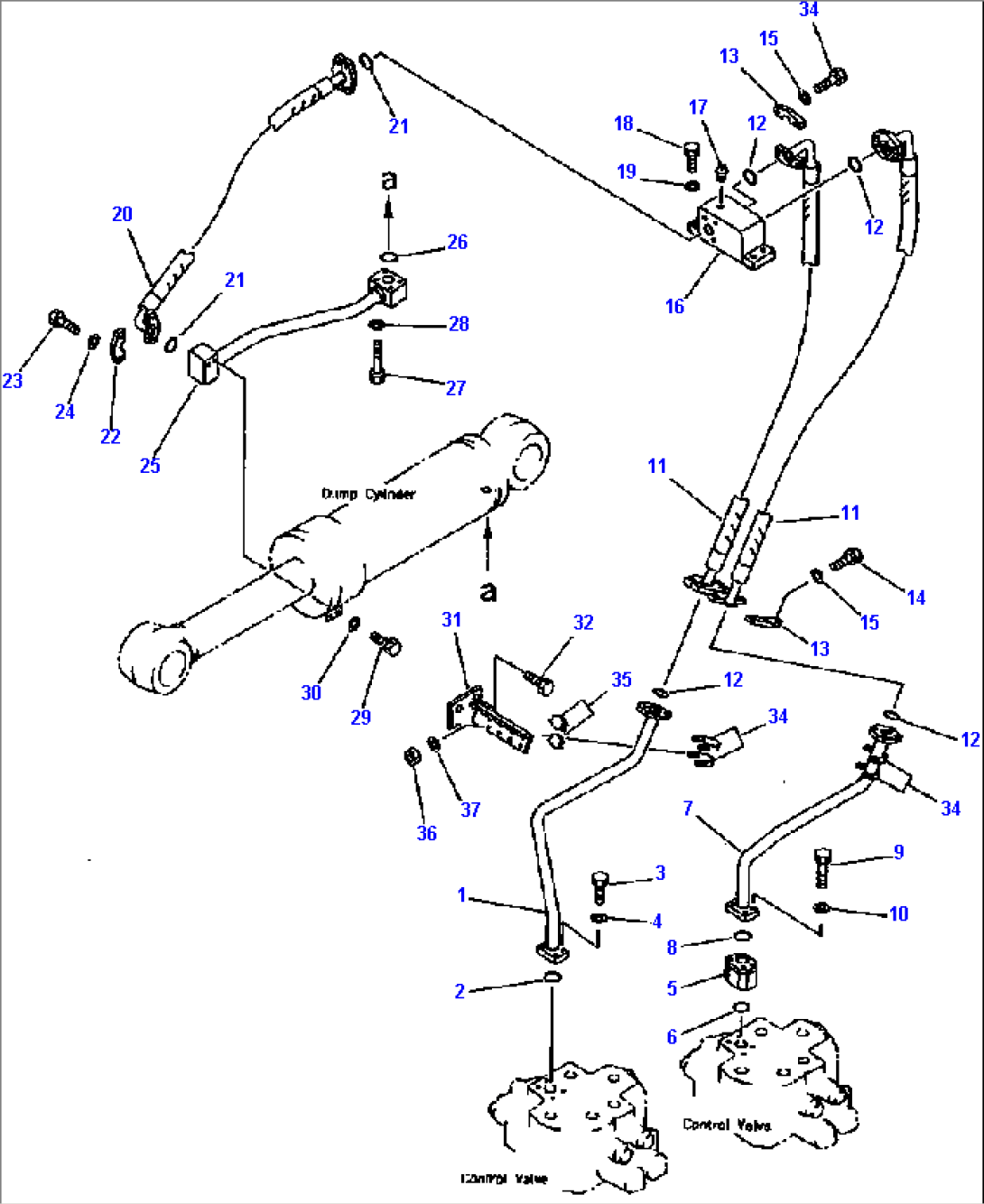

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-13421 | TUBE | ||
| 2 | 07000-F3038 | O-RING | ||
| 3 | 01010-81250 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | VALVE ASS'Y, CHECK (SEE PG 06-086) | |||
| 6 | 07000-F3038 | O-RING | ||
| 7 | 427-62-13432 | TUBE | ||
| 8 | 07000-F3045 | O-RING | ||
| 9 | 01011-81225 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 427-62-15680 | HOSE | ||
| 12 | 07000-F3048 | O-RING | ||
| 13 | 07371-51470 | FLANGE, SPLIT | ||
| 14 | 01010-81455 | BOLT | ||
| 15 | 01643-31445 | WASHER | ||
| 16 | 427-62-13440 | BLOCK, R. H | ||
| 17 | 07042-20108 | PLUG | ||
| 18 | 01010-81255 | BOLT | ||
| 19 | 01643-31232 | WASHER | ||
| 20 | 427-62-15730 | HOSE | ||
| 21 | 07000-F2060 | O-RING | ||
| 22 | 07371-52080 | FLANGE, SPLIT | ||
| 23 | 01010-81870 | BOLT | ||
| 24 | 01643-31845 | WASHER | ||
| 25 | 427-62-13191 | TUBE | ||
| 26 | 07000-F2060 | O-RING | ||
| 27 | 01011-81830 | BOLT | ||
| 28 | 10643-31845 | WASHER | ||
| 29 | 01010-81840 | BOLT | ||
| 30 | 01643-31845 | WASHER | ||
| 31 | 427-62-13371 | BRACKET, R. H | ||
| 32 | 01435-01225 | BOLT | ||
| 34 | 07283-34354 | CLIP | ||
| 35 | 07283-54353 | SEAT | ||
| 36 | 01597-01009 | NUT | ||
| 37 | 01643-31032 | WASHER |
