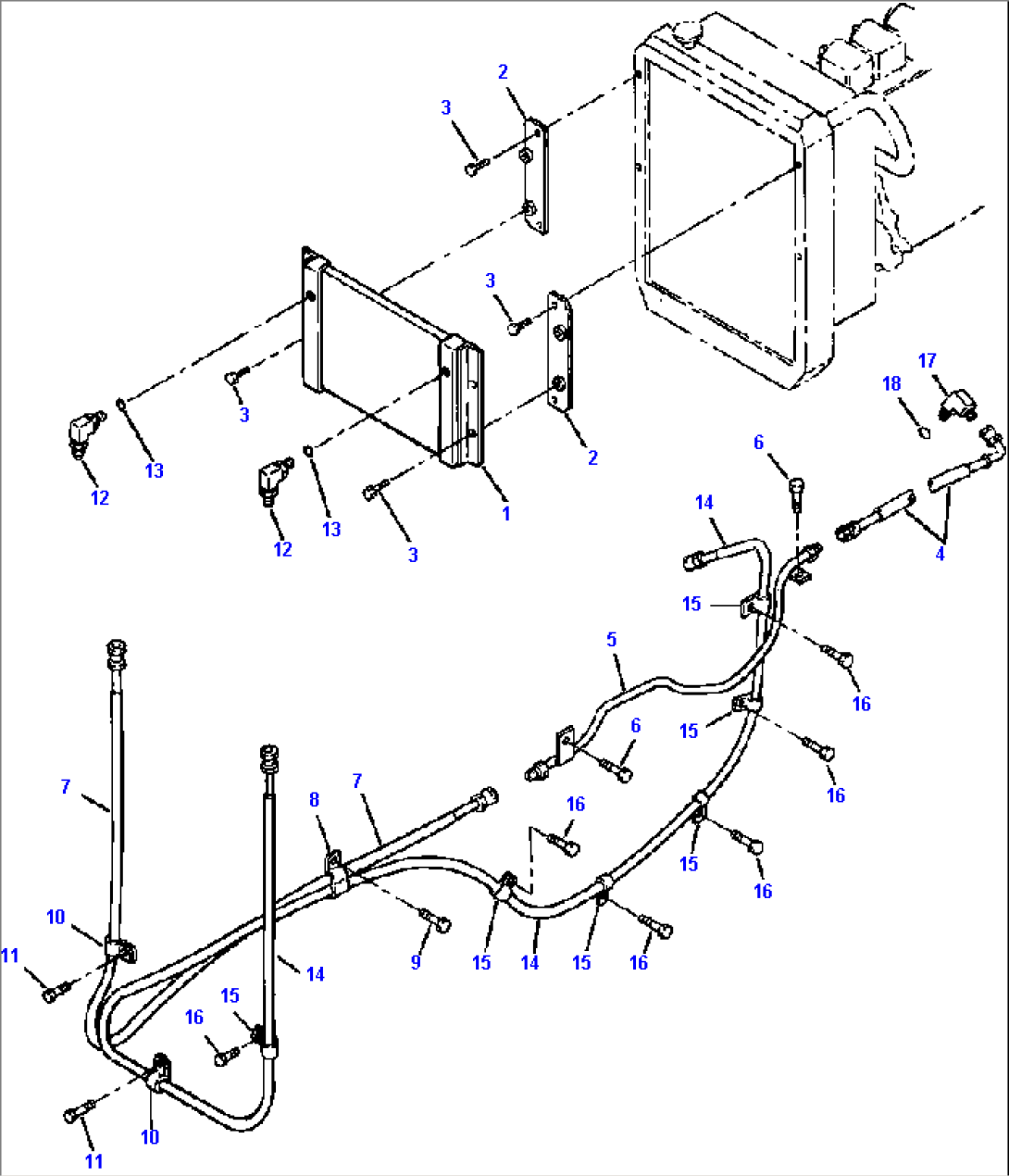

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-25120 | OIL COOLER | ||
| 2 | 417-62-25160 | BRACKET | ||
| 3 | 01435-20816 | BOLT | ||
| 4 | 417-62-25120 | HOSE | ||
| 5 | 417-62-25110 | TUBE | ||
| 6 | 01435-01220 | BOLT | ||
| 7 | 417-62-25140 | HOSE | ||
| 8 | 198-61-14180 | CLIP | ||
| 9 | 01435-01016 | BOLT | ||
| 10 | 04434-52511 | CLIP | ||
| 11 | 01435-01016 | BOLT | ||
| 12 | 07235-10522 | ELBOW | ||
| 13 | 07002-12434 | O-RING | ||
| 14 | 417-62-25150 | HOSE | ||
| 15 | 04434-52511 | CLIP | ||
| 16 | 01435-01016 | BOLT | ||
| 17 | 417-62-25130 | ELBOW | ||
| 18 | 07002-13334 | O-RING |
