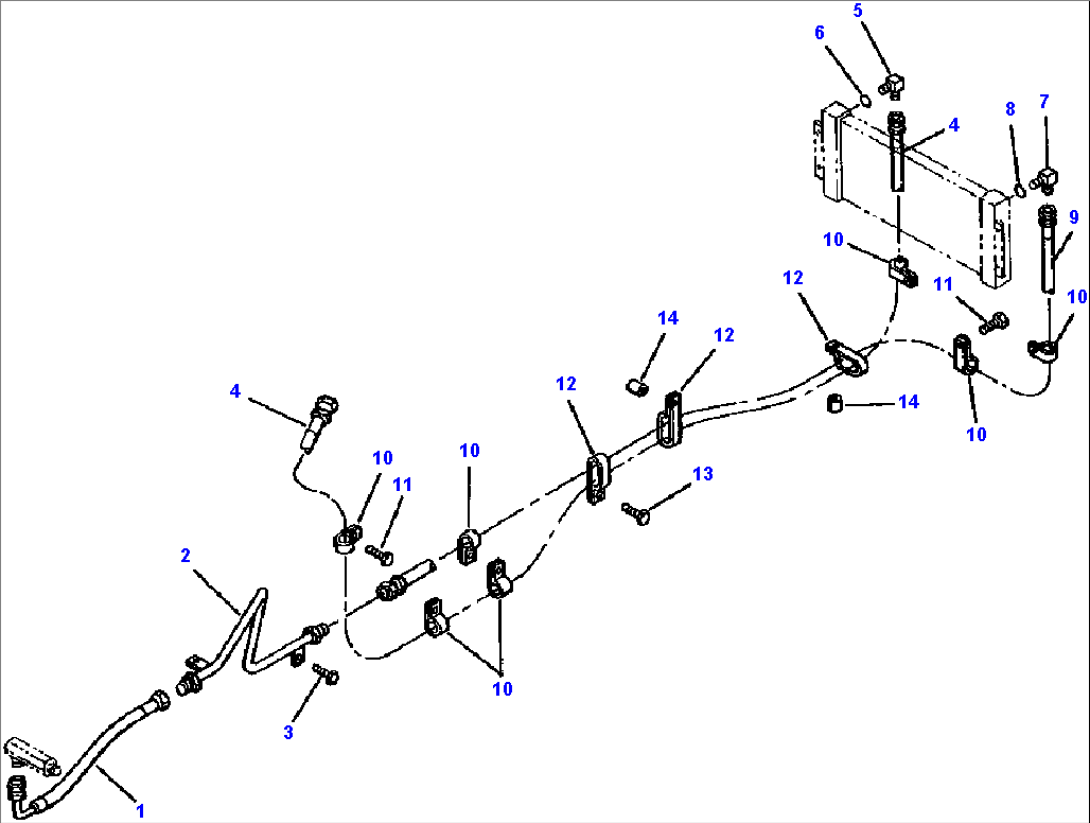

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-25130 | HOSE | ||
| 2 | 418-62-25110 | TUBE | ||
| 3 | 01435-01220 | BOLT | ||
| 4 | 418-62-A1530 | HOSE | ||
| 5 | 07235-10628 | HOSE | ||
| 6 | 07002-12434 | O-RING | ||
| 7 | 07235-10628 | ELBOW | ||
| 8 | 07002-12434 | O-RING | ||
| 9 | 418-62-A1520 | HOSE | ||
| 10 | 04434-52712 | CLIP | ||
| 11 | 01435-01016 | BOLT | ||
| 12 | 198-611-4180 | CILP | ||
| 13 | 01435-01016 | BOLT | ||
| 14 | 423-82-51720 | SPACER |
