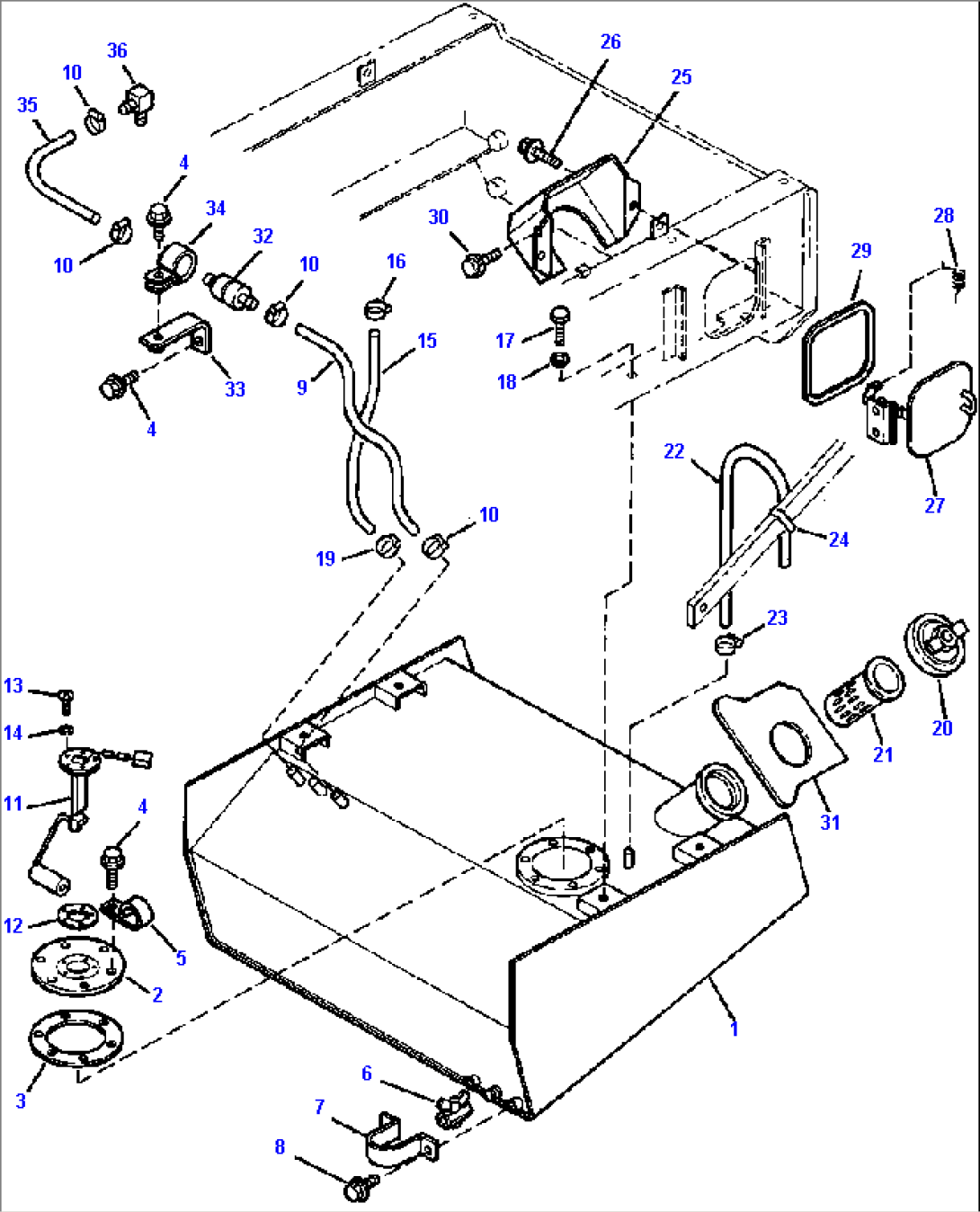

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-04-A0200 | FUEL TANK | ||
| 2 | 416-04-10150 | COVER | ||
| 3 | 421-04-11191 | GASKET | ||
| 4 | 01435-01020 | BOLT | ||
| 5 | 08036-10810 | CLIP | ||
| 6 | 363-04-11130 | VALVE | ||
| 7 | 417-04-10140 | COVER | ||
| 8 | 01435-00816 | BOLT | ||
| 9 | 419-04-A1141 | TUBE | ||
| 10 | 07281-00197 | CAP | ||
| 11 | 417-04-10131 | SENSOR | ||
| 12 | 419-04-10140 | GASKET | ||
| 13 | 01220-40512 | SCREW | ||
| 14 | 01601-20513 | WASHER | ||
| 15 | 07270-20876 | TUBE | ||
| 16 | 07281-00167 | CLAMP | ||
| 17 | 01010-51635 | BOLT | ||
| 18 | 421-70-11280 | WASHER | ||
| 19 | 07281-00167 | CLAMP | ||
| 20 | 423-04-11362 | CAP | ||
| 417-04-21230 | PACKING | |||
| 21 | 07056-18416 | STAINER | ||
| 22 | 07270-21090 | HOSE | ||
| 23 | 07281-00167 | CLAMP | ||
| 24 | 08034-20536 | BAND | ||
| 25 | 417-04-21131 | COVER | ||
| 26 | 01435-01020 | BOLT | ||
| 27 | 417-04-21171 | COVER | ||
| 28 | 09467-00006 | SPRING | ||
| 29 | 417-04-21210 | FINISHER | ||
| 30 | 01435-01020 | BOLT | ||
| 31 | 417-04-21220 | RUBBER | ||
| 32 | 207-04-A1100 | STRAINER | ||
| 33 | 425-46-14130 | STRAINER, FUEL | ||
| 34 | 23T-62-12160 | CLIP | ||
| 35 | 419-04-A1151 | HOSE | ||
| 36 | 864 457 R1 | ELBOW |
