| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08020-10000 | DIODE | ||
| 2 | N/A | HARNESS, PARALLEL LIFT FRONT FRAME | ||
| 3 | 08034-00519 | STRAP, TIE | ||
| 4 | 08053-01510 | CLIP | ||
| 5 | 01435-01016 | BOLT |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 3l s/n a75001 up
- Electrical system
- Fig no. e0200 02a0 electrical system (parallel lift harness front frame)
Поиск по каталогу

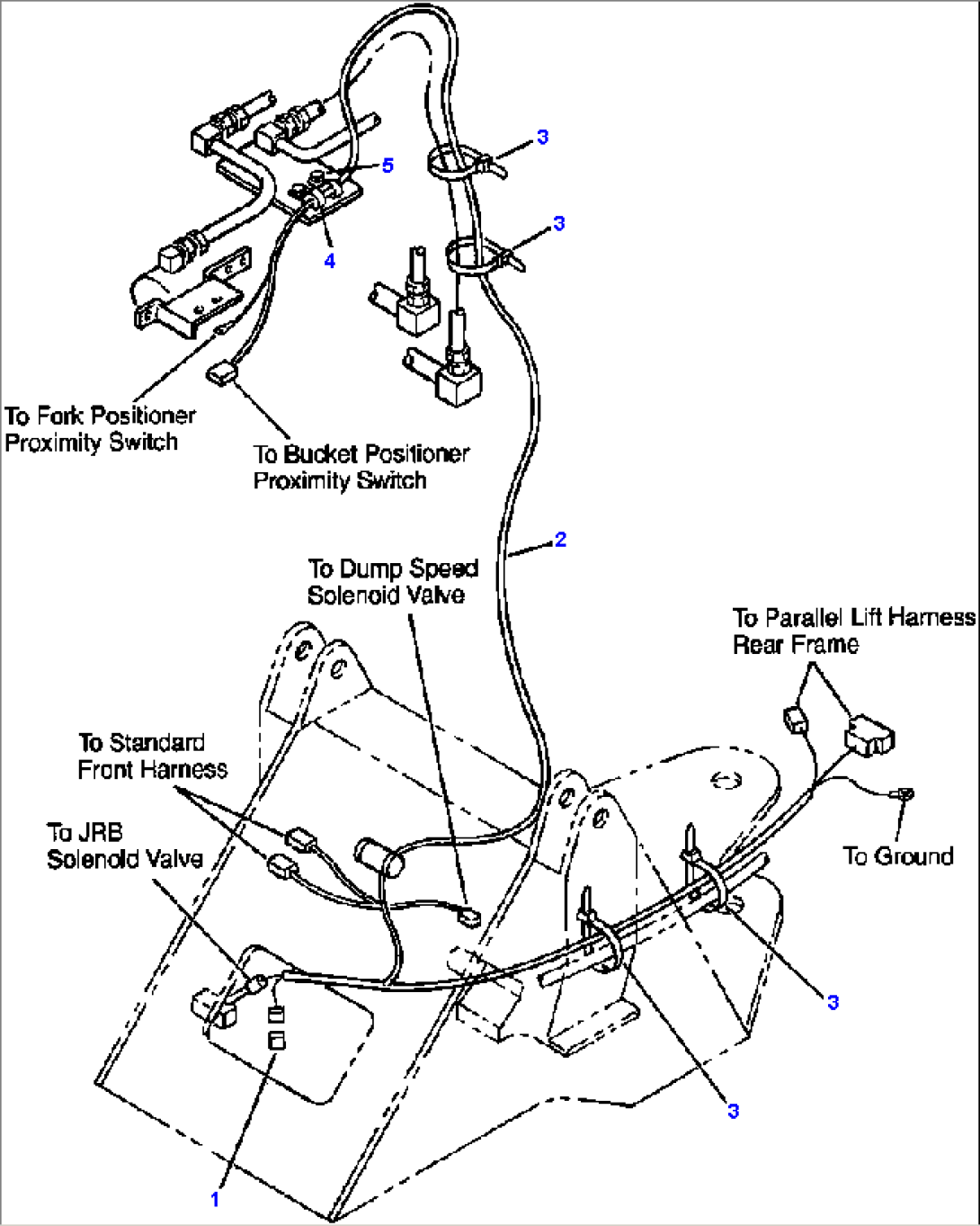

FIG NO. E0200-02A0 ELECTRICAL SYSTEM (PARALLEL LIFT HARNESS FRONT FRAME)
