| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-15-28110 | FILLER, OIL TUBE | ||
| 2 | 416-15-28120 | GAUGE | ||
| 3 | 6136-21-7190 | CHAIN | ||
| 4 | 07000-12060 | O-RING | ||
| 5 | 01435-01230 | BOLT | ||
| 6 | 417-979-2110 | CAP ASSEMBLY | ||
| 6136-21-7180 | GASKET |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Power train and final drive
- Fig no. f4300 02a0 transmission (oil gauge and oil filler)
Поиск по каталогу

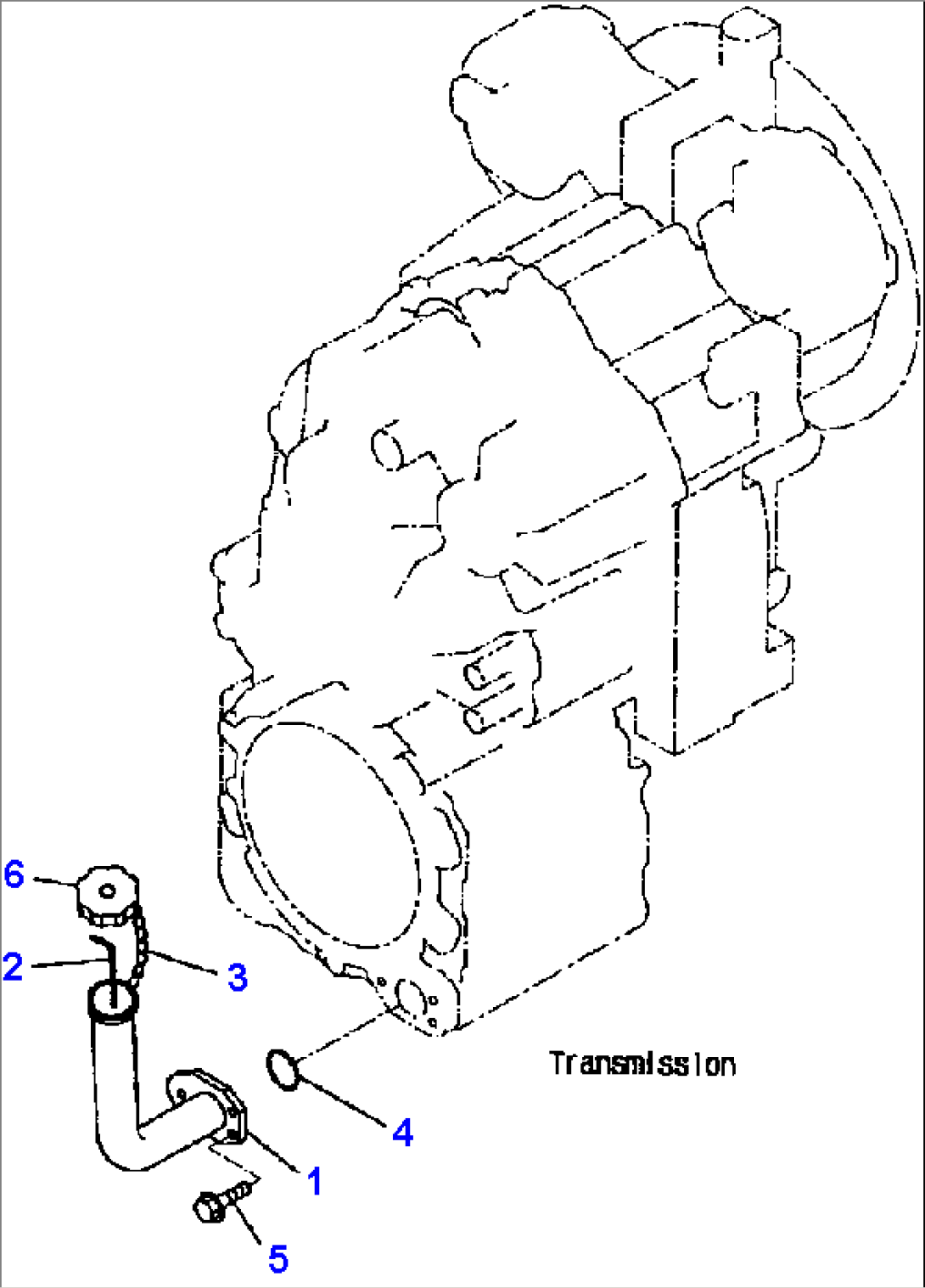

FIG NO. F4300-02A0 TRANSMISSION (OIL GAUGE AND OIL FILLER)
