| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-22150 | WIRING HARNESS | ||
| 08020-10000 | DIODE | |||
| 2 | 08035-01510 | CLIP | ||
| 3 | 01435-01016 | BOLT | ||
| 4 | 08034-20519 | BAND |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Power train and final drive
- Fig no. f4300 03a0 transmission (transmission harness)
Поиск по каталогу

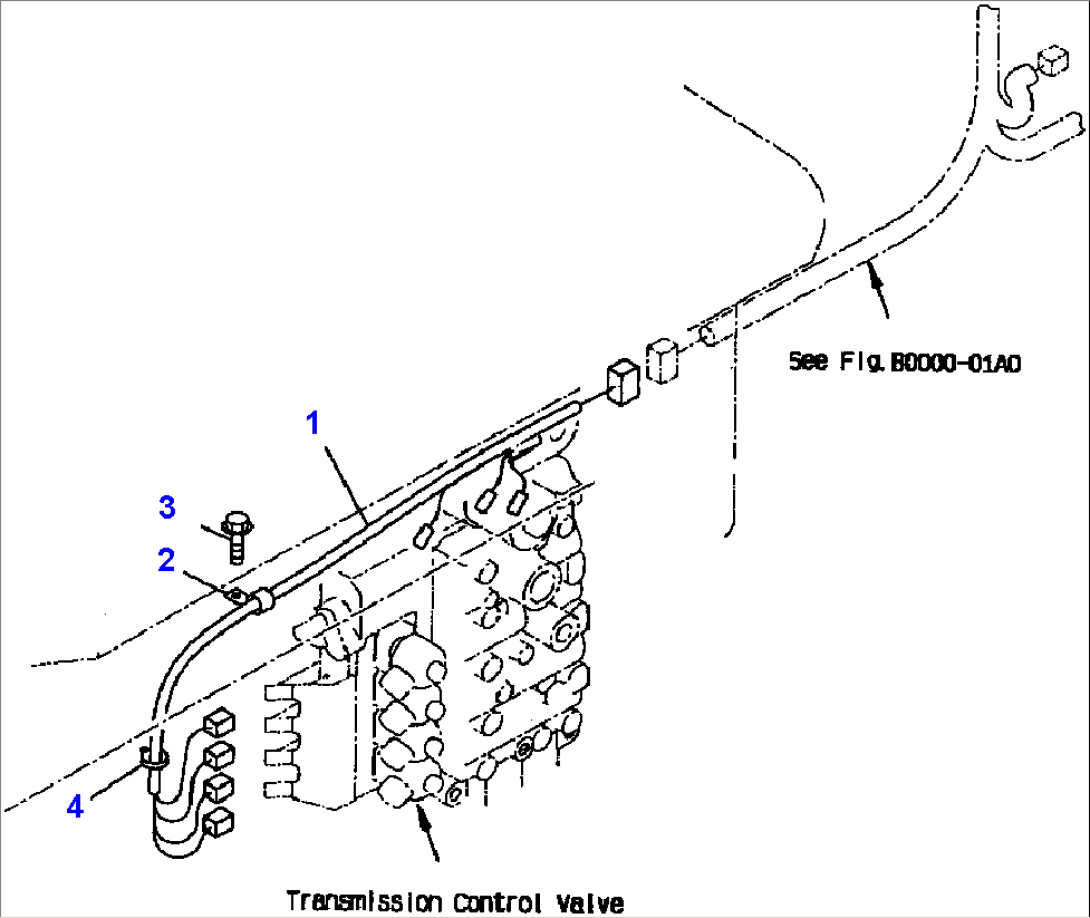

FIG NO. F4300-03A0 TRANSMISSION (TRANSMISSION HARNESS)
