| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-22-26240 | BRACKET | ||
| 2 | 01435-01230 | BOLT | ||
| 3 | 07260-20928 | HOSE | ||
| 4 | 07281-00197 | CLAMP | ||
| 5 | 6138-55-7610 | NIPPLE |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Power train and final drive
- Fig no. f4300 04a0 transmission (brake oil piping and linkage bracket)
Поиск по каталогу

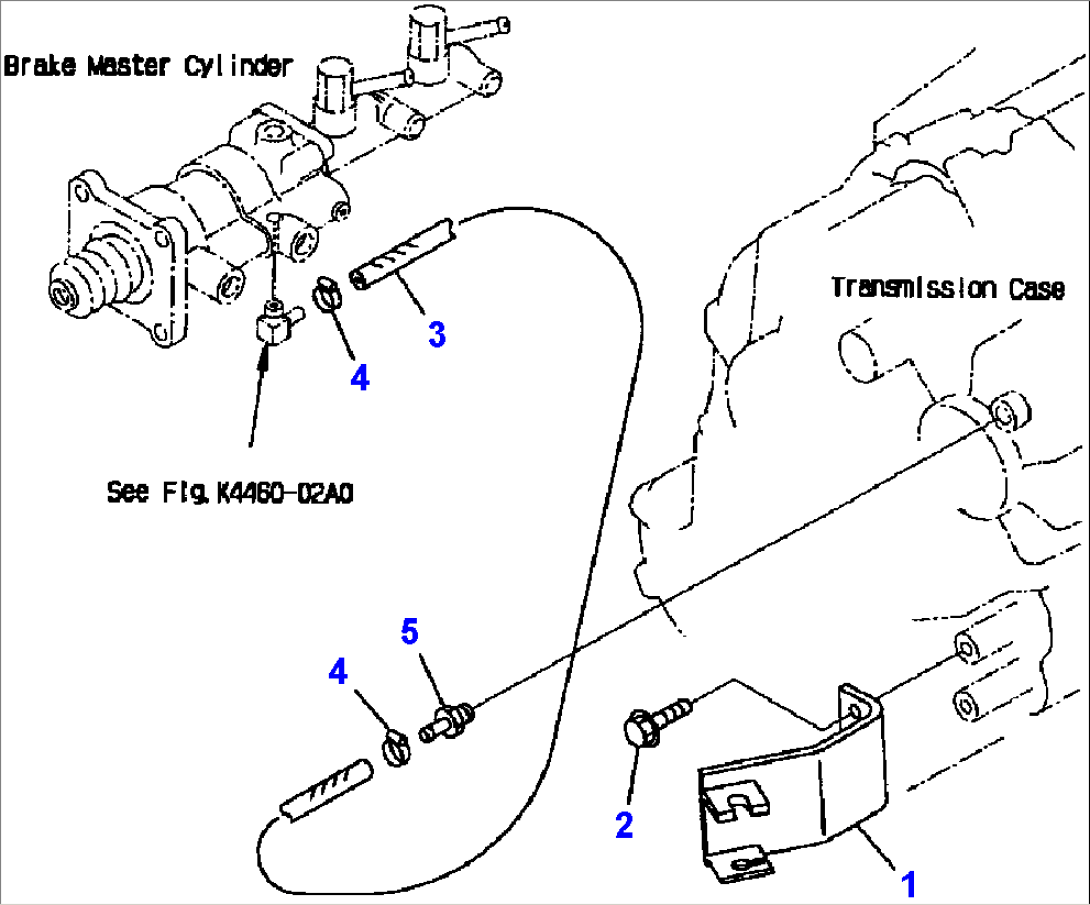

FIG NO. F4300-04A0 TRANSMISSION (BRAKE OIL PIPING AND LINKAGE BRACKET)
