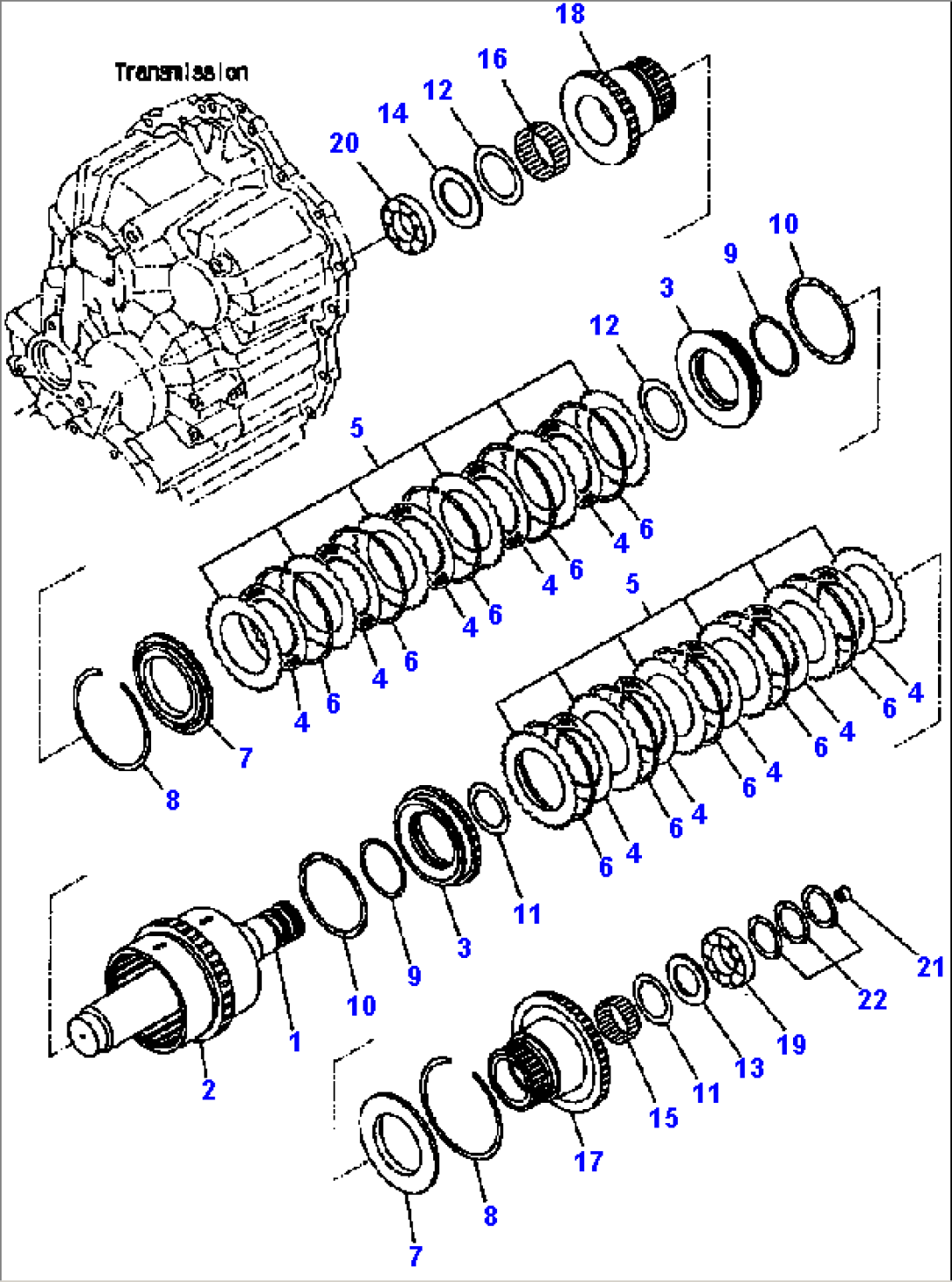

| Item | Part No. | Part Name | Qty | Serial No. |
| TRANSMISSION ASSEMBLY (SEE PG F-016) | ||||
| 714-11-12030 | CLUTCH ASSEMBLY, REVERSE AND 1ST | |||
| 714-11-12170 | SHAFT ASSEMBLY | |||
| 1 | (NSS) | SHAFT | ||
| 2 | (NSS) | HOUSING ASSEMBLY | ||
| 3 | 714-11-12660 | PISTON, 3RD AND 4TH | ||
| 4 | 714-08-19710 | DISC | ||
| 5 | 714-08-19730 | PLATE, SEPARATE | ||
| 6 | 714-08-12910 | SPRING, WAVE | ||
| 7 | 714-08-12610 | PLATE, END | ||
| 8 | 714-08-19510 | RING, SNAP | ||
| 9 | 714-08-19210 | RING, SEAL | ||
| 10 | 714-11-19230 | RING, SEAL | ||
| 11 | 714-11-19510 | WASHER, THRUST | ||
| 12 | 714-08-19570 | WASHER, THRUST | ||
| 13 | 714-11-12710 | SPACER | ||
| 14 | 714-11-12720 | SPACER | ||
| 15 | 419-15-12270 | BEARING, NEEDLE | ||
| 16 | 419-15-13150 | BEARING, NEEDLE | ||
| 17 | 714-11-12460 | GEAR, 51 TEETH, 4TH | ||
| 18 | 714-11-12470 | GEAR, 40-52 TEETH, 3RD | ||
| 19 | 06040-06210 | BEARING | ||
| 20 | 06040-06312 | BEARING | ||
| 21 | 714-11-12850 | SCREW | ||
| 22 | 419-15-12122 | RING, SEAL |
