| Item | Part No. | Part Name | Qty | Serial No. |

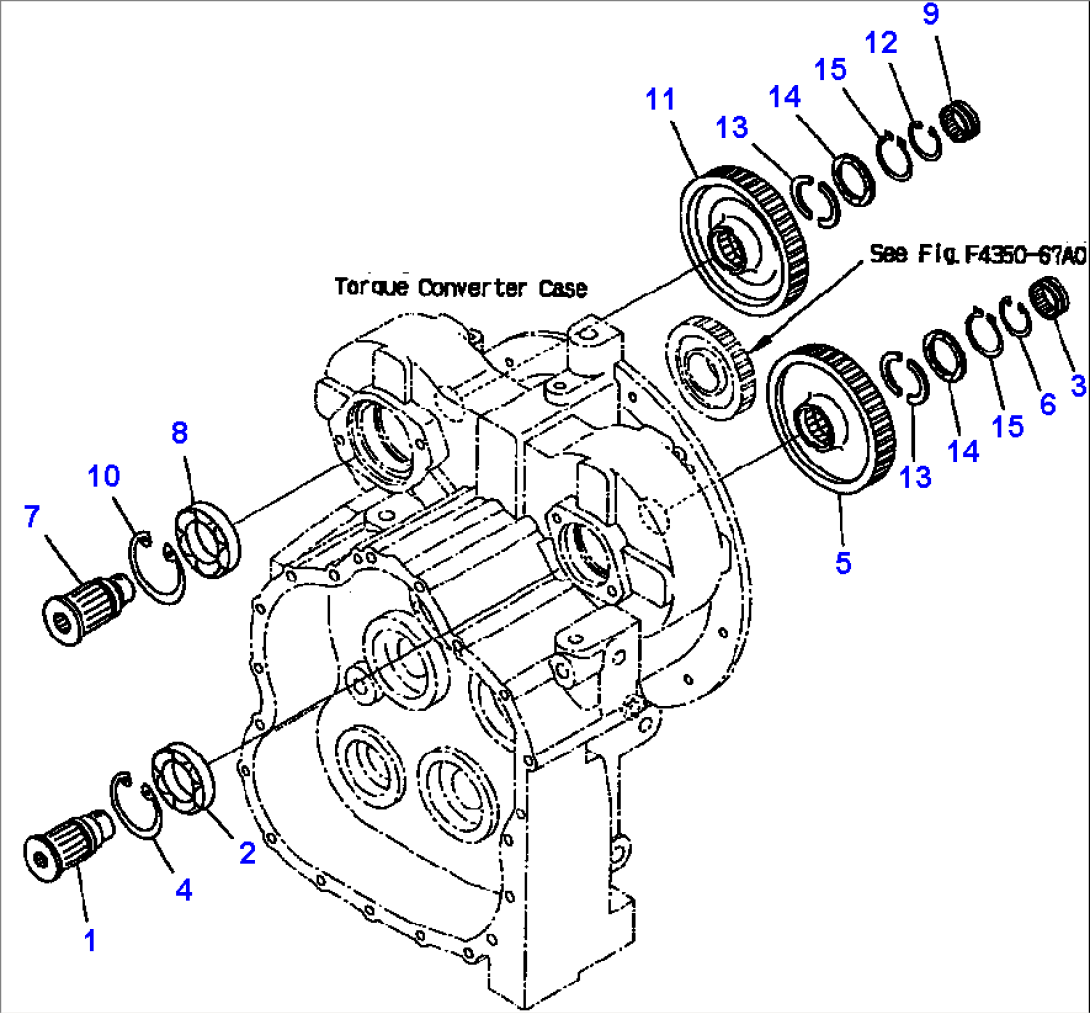

| TRANSMISSION ASSEMBLY (SEE PG F-016) | ||||
| 1 | 714-11-13211 | SHAFT | ||
| 2 | 06040-06010 | BEARING | ||
| 3 | 714-11-19350 | BEARING, NEEDLE | ||
| 4 | 04065-08025 | RING, SNAP | ||
| 5 | 714-11-13411 | GEAR, 67 TEETH | ||
| 6 | 04065-04718 | RING, SNAP | ||
| 7 | 714-11-13220 | SHAFT | ||
| 8 | 06040-06210 | BEARING | ||
| 9 | 714-11-19350 | BEARING, NEEDLE | ||
| 10 | 04065-09030 | RING, SNAP | ||
| 11 | 714-11-13420 | GEAR, 75 TEETH | ||
| 12 | 04065-04718 | RING, SNAP | ||
| 13 | 714-11-13720 | SPACER | ||
| 14 | 714-11-13710 | RING | ||
| 15 | 04064-05020 | RING, SNAP |
