| Item | Part No. | Part Name | Qty | Serial No. |
| 714-13-X0040 | TRANSMISSION ASSEMBLY (SEE PG F-016) | |||
| 1 | 07206-30710 | BALL, JOINT | ||
| 2 | 07005-01012 | GASKET | ||
| 3 | 714-13-18890 | TUBE | ||
| 4 | 04434-50610 | CLIP | ||
| 5 | 01010-81020 | BOLT | ||
| 6 | 01643-31032 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 3l s/n a75001 up
- Power train and final drive
- Fig no. f4350 66a0 transmission (transmission pump and piping) (2/2)
Поиск по каталогу

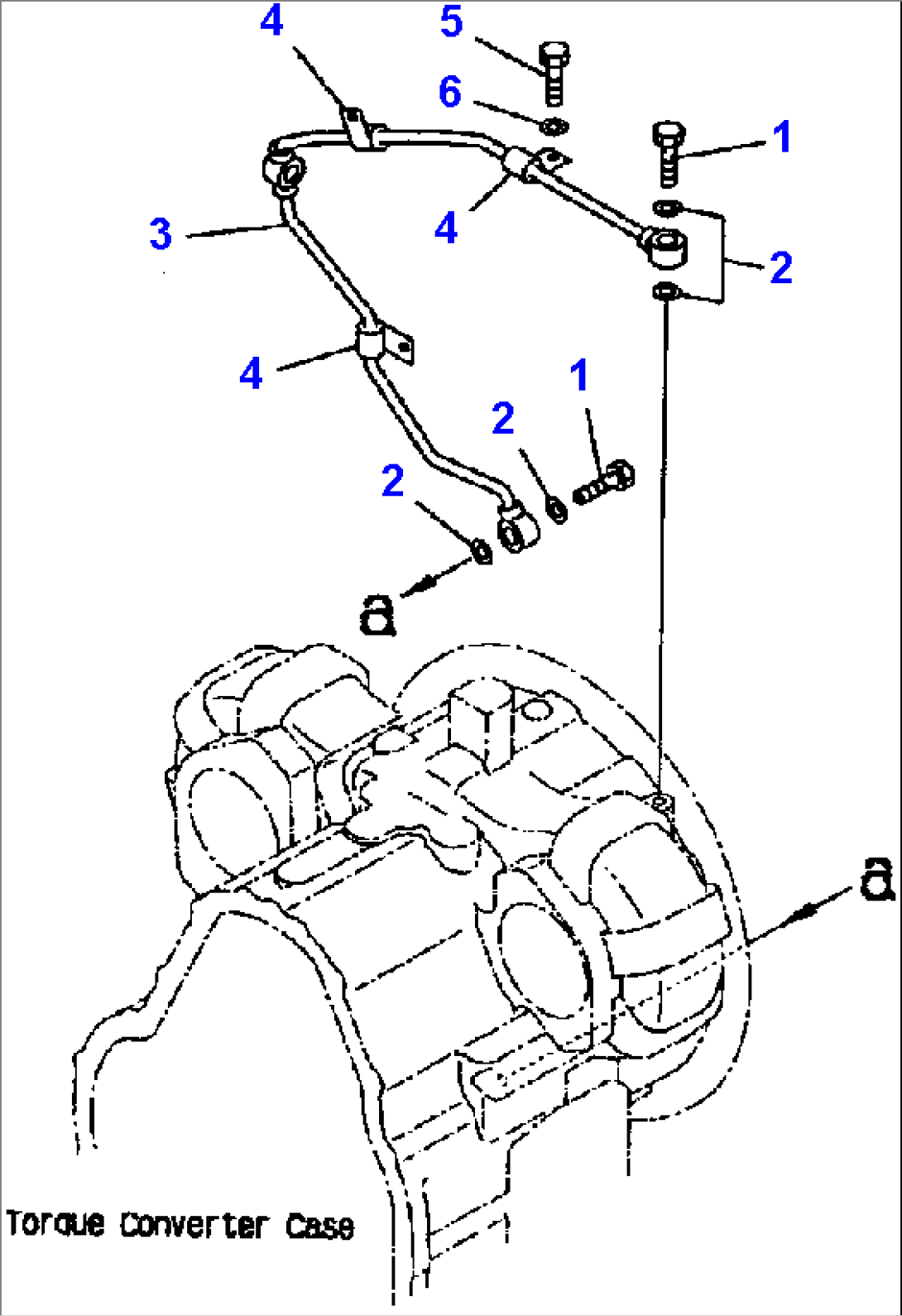

FIG NO. F4350-66A0 TRANSMISSION (TRANSMISSION PUMP AND PIPING) (2/2)
