| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, FRONT (SEE PG F-064) | ||||
| 1 | 417-22-23210 | HOUSING, R.H | ||
| 2 | 417-22-23220 | HOUSING, L.H | ||
| 3 | 815-02-10110 | PLATE, NAME (LIMITED SUPPLY) | ||
| 4 | 04418-13060 | SCREW | ||
| 5 | 07030-01030 | BREATHER | ||
| 6 | 417-22-13311 | JOINT |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Power train and final drive
- Fig no. f4400 02a0 front axle (housing)
Поиск по каталогу

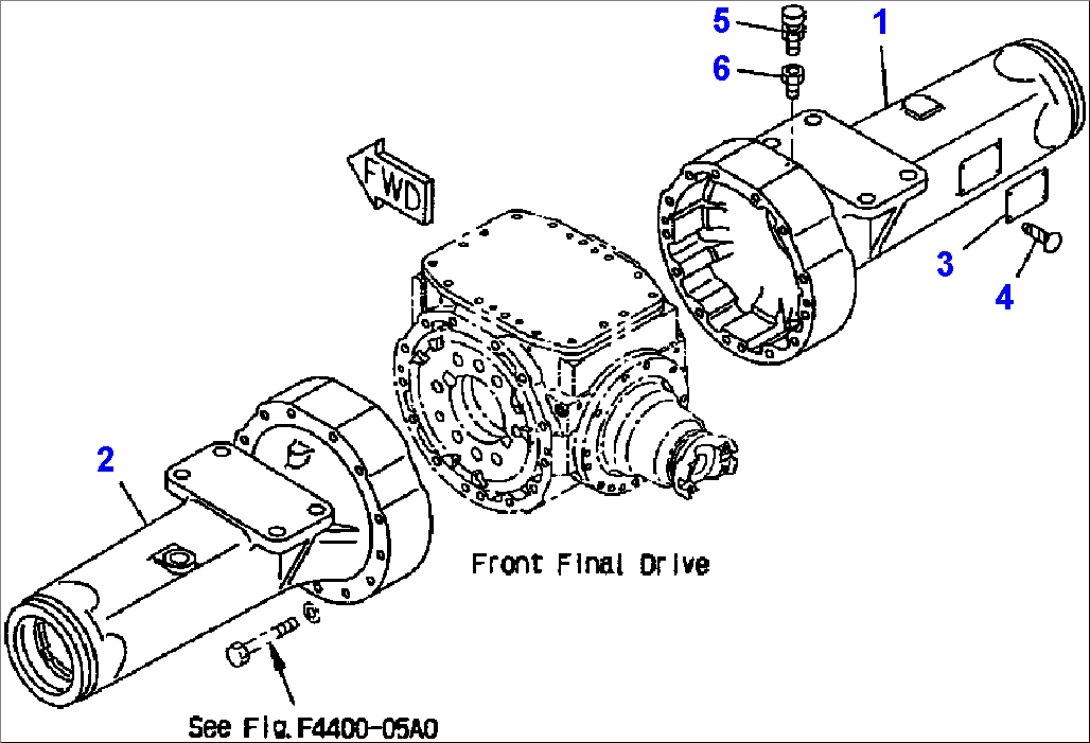

FIG NO. F4400-02A0 FRONT AXLE (HOUSING)
