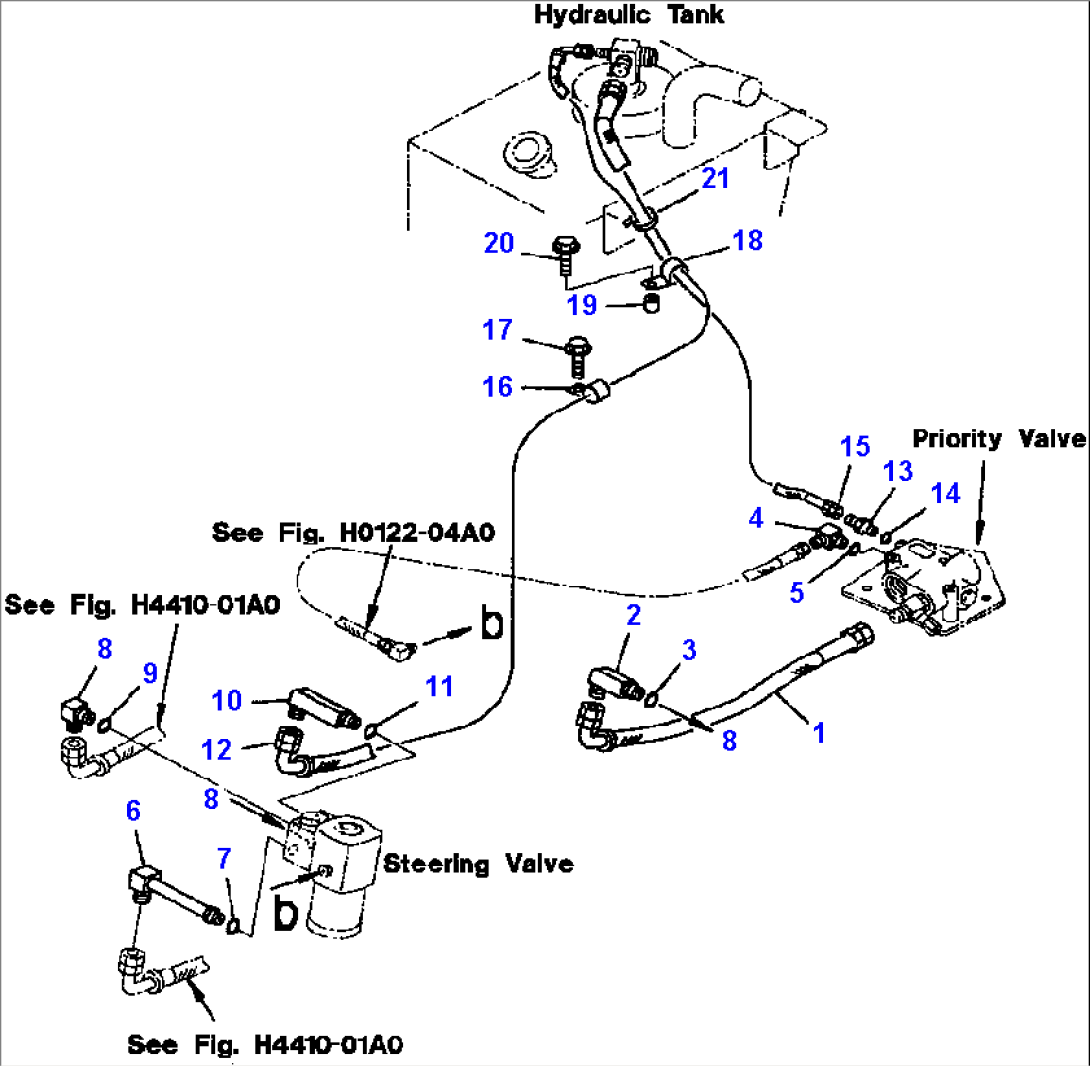

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-21120 | HOSE | ||
| 2 | 418-62-11450 | ELBOW | ||
| 3 | 415-62-11560 | O-RING | ||
| 4 | 416-62-11490 | ELBOW | ||
| 5 | 416-62-11480 | O-RING | ||
| 6 | 418-62-21130 | ELBOW | ||
| 7 | 415-62-11560 | O-RING | ||
| 8 | 418-62-11440 | ELBOW | ||
| 9 | 415-62-11560 | O-RING | ||
| 10 | 419-62-11620 | ELBOW | ||
| 11 | 415-62-11560 | O-RING | ||
| 12 | 418-62-21250 | HOSE | ||
| 13 | 416-62-11240 | UNION | ||
| 14 | 416-62-11480 | O-RING | ||
| 15 | 418-62-21270 | HOSE | ||
| 16 | 04434-52512 | CLIP | ||
| 17 | 01435-01220 | BOLT | ||
| 18 | 04434-52512 | CLIP | ||
| 19 | 423-54-11340 | SPACER | ||
| 20 | 01435-01240 | BOLT | ||
| 21 | 08034-20536 | BAND |
