| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08034-00536 | BAND | ||
| 2 | 20Y-62-23421 | HOSE | ||
| 3 | 20Y-62-22810 | BAND, YELLOW | ||
| 4 | 20Y-62-23431 | HOSE | ||
| 5 | 08034-00536 | BAND | ||
| 6 | 21T-72-23270 | CLIP | ||
| 7 | 01010-51230 | BOLT | ||
| 8 | 01643-31232 | WASHER |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210lc 6le s/n a83001 up
- Hydraulic system
- Fig no. h1840 0202 hydraulic piping ppc lines for 1 actuator (block to main valve)
Поиск по каталогу

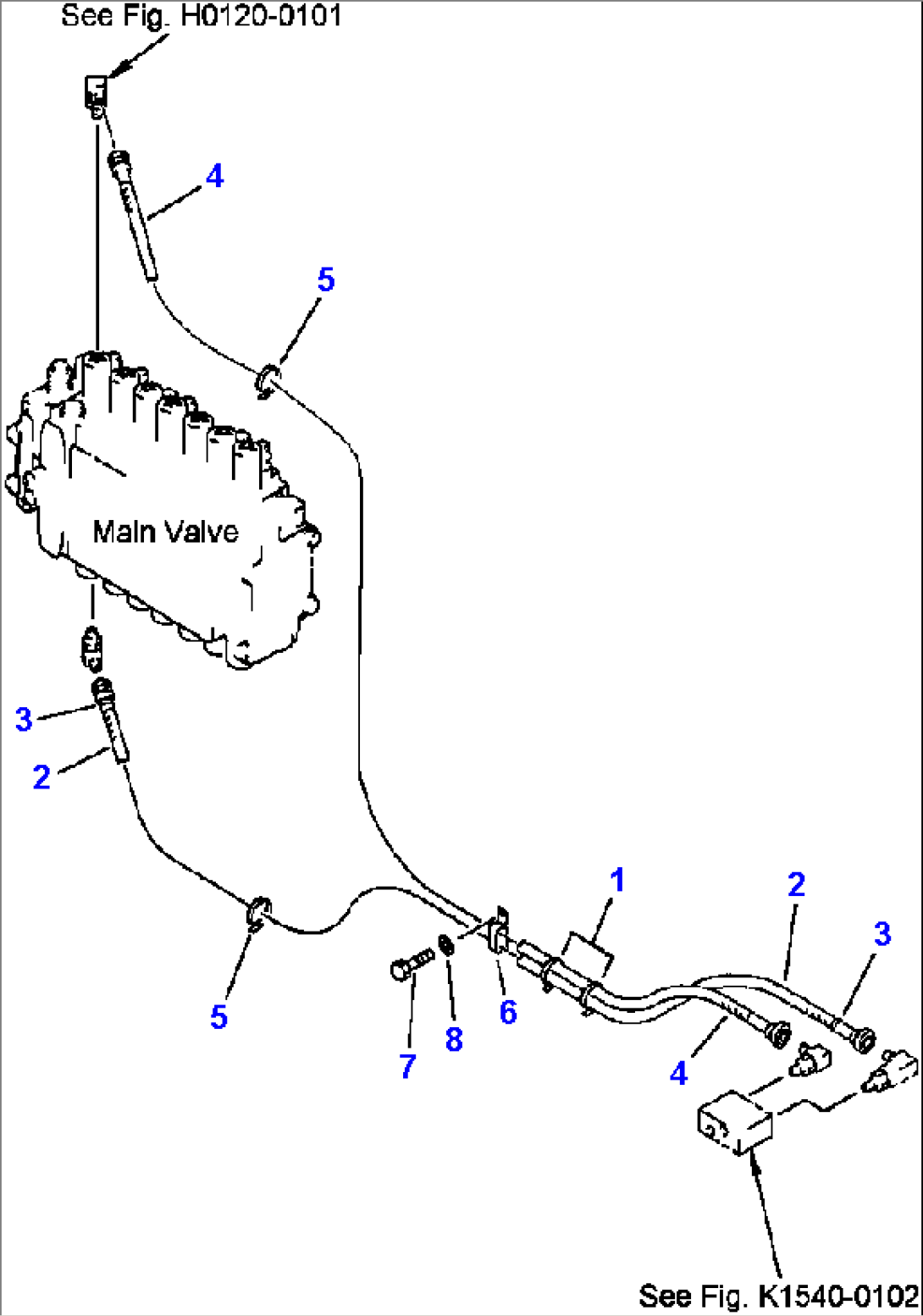

FIG NO. H1840-0202 HYDRAULIC PIPING PPC LINES FOR 1 ACTUATOR (BLOCK TO MAIN VALVE)
