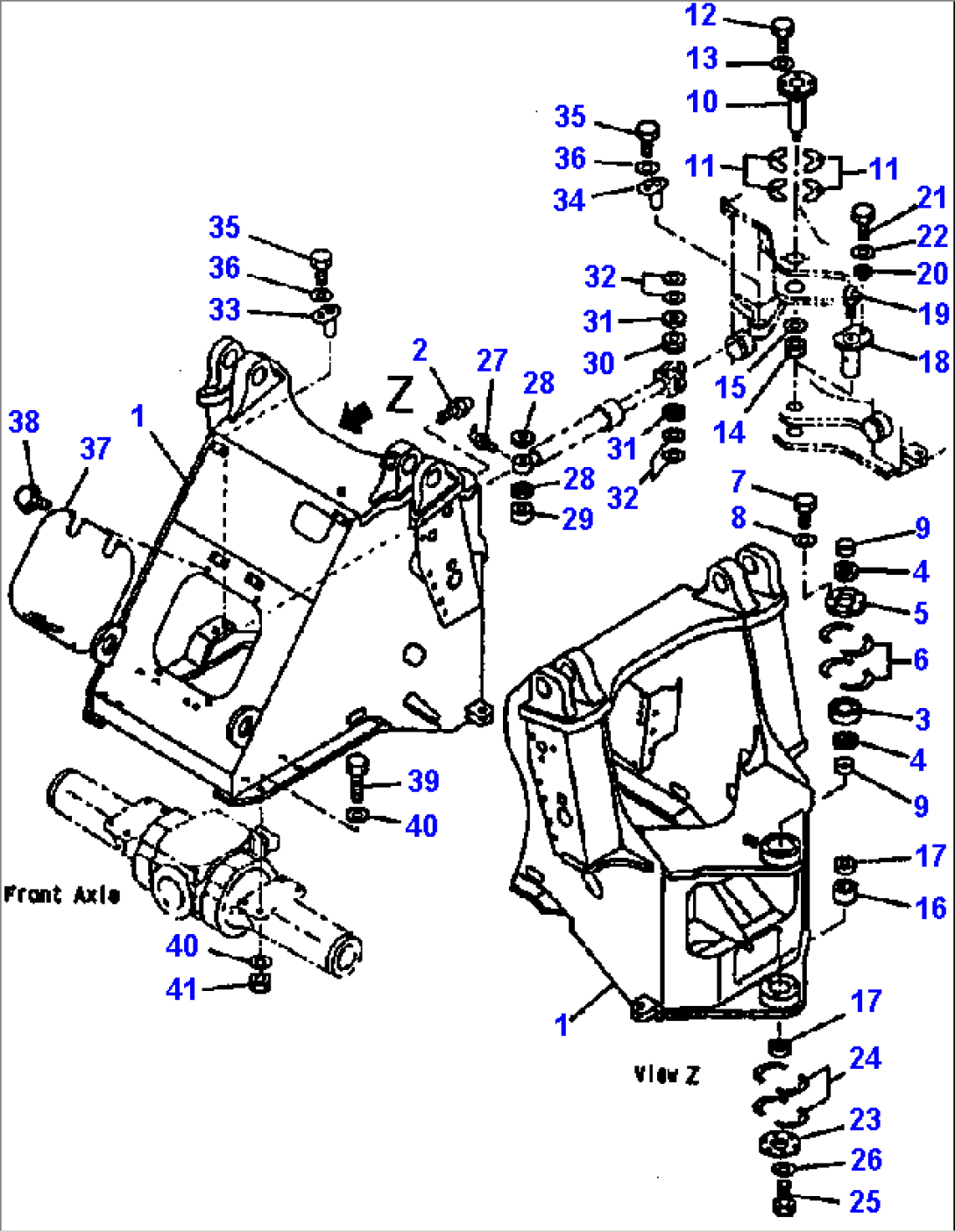

FIG NO. J4110-02A0 FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)

FIG NO. J4110-02A0 FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)
ItemPart No.Part NameQtySerial No.
1418-T80-A600FRAME, FRONT
207020-00675FITTING, GREASE
3418-46-11150BEARING
4419-09-11110SEAL, DUST
5418-46-11180RETAINER
6418-46-11320SHIM, 0.1MM
418-46-11210SHIM, 0.2MM
418-46-11220SHIM, 0.5MM
701010-51030BOLT
801643-31032WASHER
9418-46-11160SPACER
10418-46-11141SHAFT
11418-46-11240SHIM, 0.1MM
418-46-11250SHIM, 0.2MM
418-46-11260SHIM, 0.5MM
418-46-11270SHIM, 1.0MM
1201010-51236BOLT
1301643-31232WASHER
14418-46-11290NUT
15418-46-11280WASHER
16418-46-13320BEARING
17417-09-11120SEAL, DUST
18418-46-13310SHAFT
1907020-00900FITTING, GREASE
20424-46-11130BUSHING
2101010-51235BOLT
2201643-31232WASHER
23418-46-13330RETAINER
24418-46-11320SHIM, 0.1MM
418-46-11210SHIM, 0.2MM
418-46-11220SHIM, 0.5MM
2501010-51025BOLT
2601643-31032WASHER
2707020-00675FITTING, GREASE
28419-09-11120SEAL, DUST
29419-46-12250SPACER
30419-46-12270BUSHING
31419-09-11120SEAL, DUST
32419-46-12290SHIM, 0.5MM
419-46-12280SHIM, 1.0MM
33419-46-12240PIN
34419-46-12260PIN
3501010-51220BOLT
36175-54-34170WASHER
37418-T80-A840COVER, FRONT (3-SPOOL VALVE)
418-T80-A830COVER, FRONT (2-SPOOL VALVE)
3801435-01225BOLT
3901011-32475BOLT
4001643-32460WASHER
4101580-02419NUT
