| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-877-2110 | TUBE, L.H | ||
| 2 | 417-877-2120 | TUBE, R.H | ||
| 3 | 417-877-2130 | PLATE | ||
| 4 | 417-877-2140 | PLATE | ||
| 5 | 01435-01020 | BOLT | ||
| 6 | 07283-32236 | CLIP | ||
| 7 | 01595-01008 | NUT, LOCK | ||
| 8 | 01643-31232 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Front frame
- Fig no. j4110 02a1 front frame (2/2) (frame) (with 3 spool and piping)
Поиск по каталогу

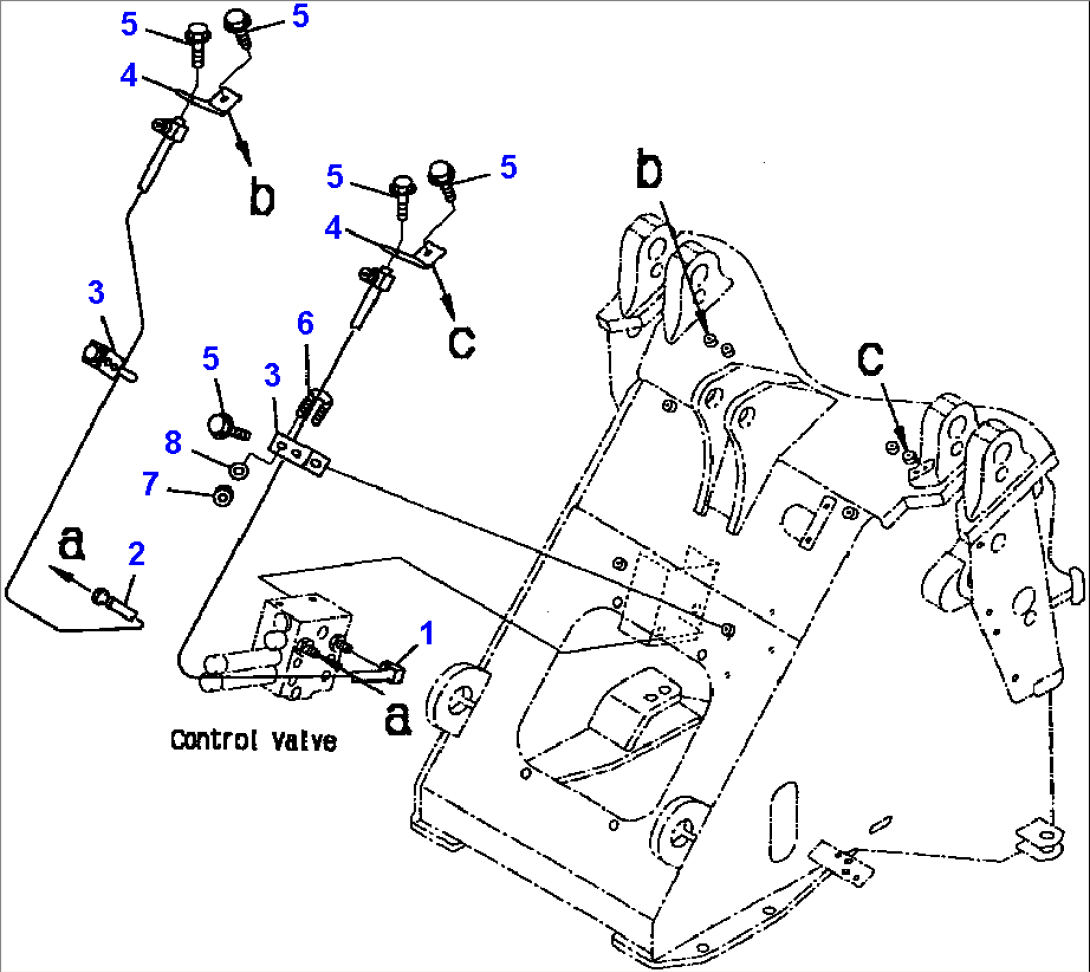

FIG NO. J4110-02A1 FRONT FRAME (2/2) (FRAME) (WITH 3-SPOOL AND PIPING)
