| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-971-2120 | GUARD | ||
| 2 | 01435-01040 | BOLT | ||
| 3 | 01435-01025 | BOLT | ||
| 4 | 415-64-13120 | WASHER | ||
| 5 | 01584-01008 | NUT | ||
| 6 | 417-971-2130 | PLATE | ||
| 7 | 01435-01020 | BOLT | ||
| 8 | REAR FRAME (SEE PG J-010) |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3l s/n a85001 up
- Front frame
- Fig no. j4190 02a0 bar lock and cover (under guard)
Поиск по каталогу

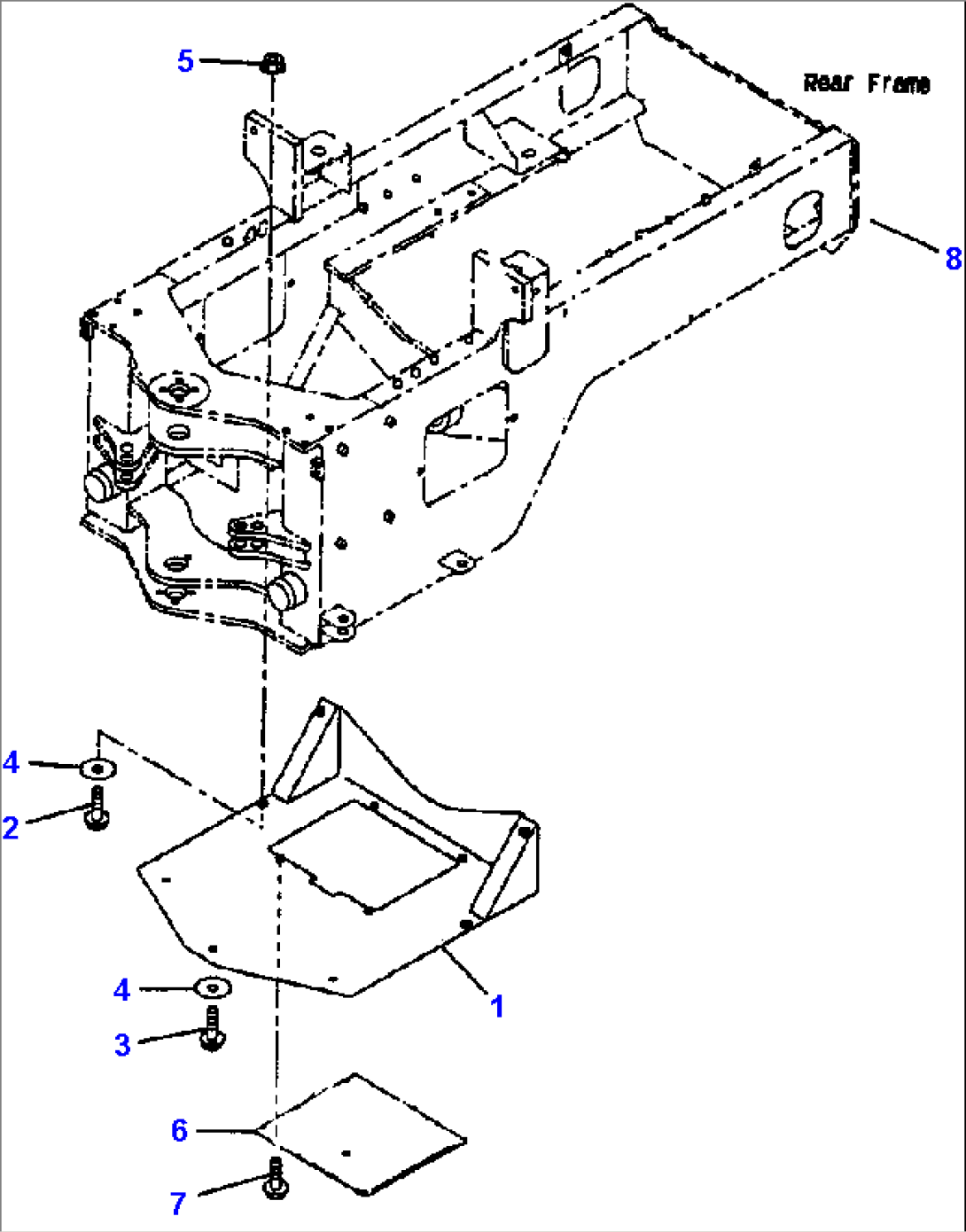

FIG NO. J4190-02A0 BAR LOCK AND COVER (UNDER GUARD)
