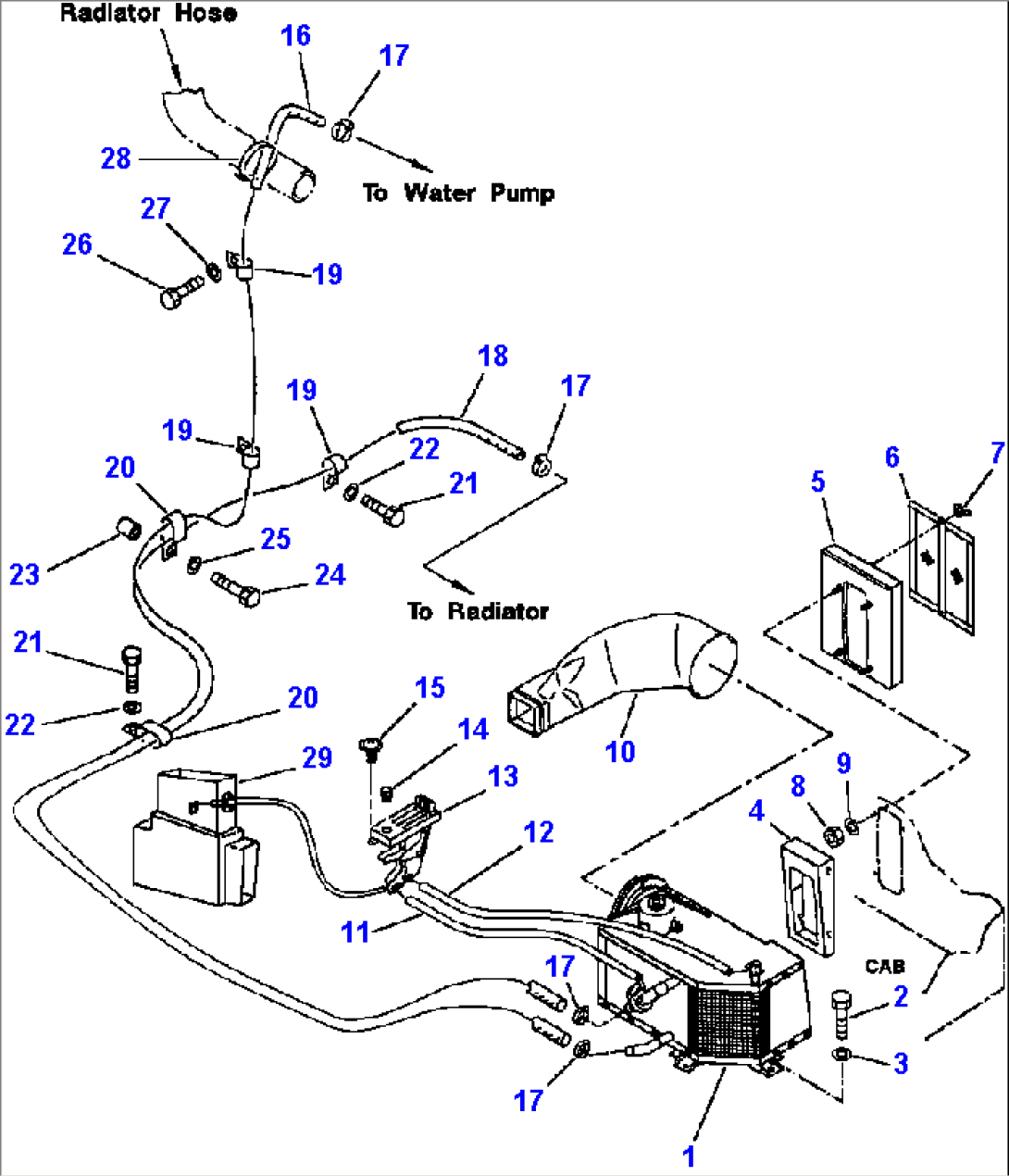

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HEATER ASSEMBLY (SEE PG K-078) | |||
| 2 | 01010-51020 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 20Y-977-K230 | SEAL | ||
| 5 | 20Y-977-K240 | FILTER ASSEMBLY | ||
| 6 | 20Y-977-K260 | ELEMENT | ||
| 7 | 20Y-977-K280 | NUT | ||
| 8 | 01580-10605 | NUT | ||
| 9 | 01643-30623 | WASHER | ||
| 10 | 20Y-977-K380 | DUCT | ||
| 11 | 20Y-977-K310 | CABLE | ||
| 12 | 20Y-977-K320 | CABLE | ||
| 13 | 20Y-977-K340 | CONTROLLER ASSEMBLY | ||
| 14 | 20Y-977-K370 | SWITCH | ||
| 15 | 01023-10510 | SCREW | ||
| 16 | 09483-00433 | HOSE | ||
| 17 | 09480-10100 | CLAMP | ||
| 18 | 09483-00425 | HOSE | ||
| 19 | 209-04-19140 | CLIP | ||
| 20 | 141-06-11220 | CLIP | ||
| 21 | 01010-51230 | BOLT | ||
| 22 | 01643-31232 | WASHER | ||
| 23 | 195-33-11220 | SPACER | ||
| 24 | 01010-51245 | BOLT | ||
| 25 | 01643-31232 | WASHER | ||
| 26 | 01010-51025 | BOLT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | 08034-00536 | BAND | ||
| 29 | DUCT (SEE PG K-032) |
