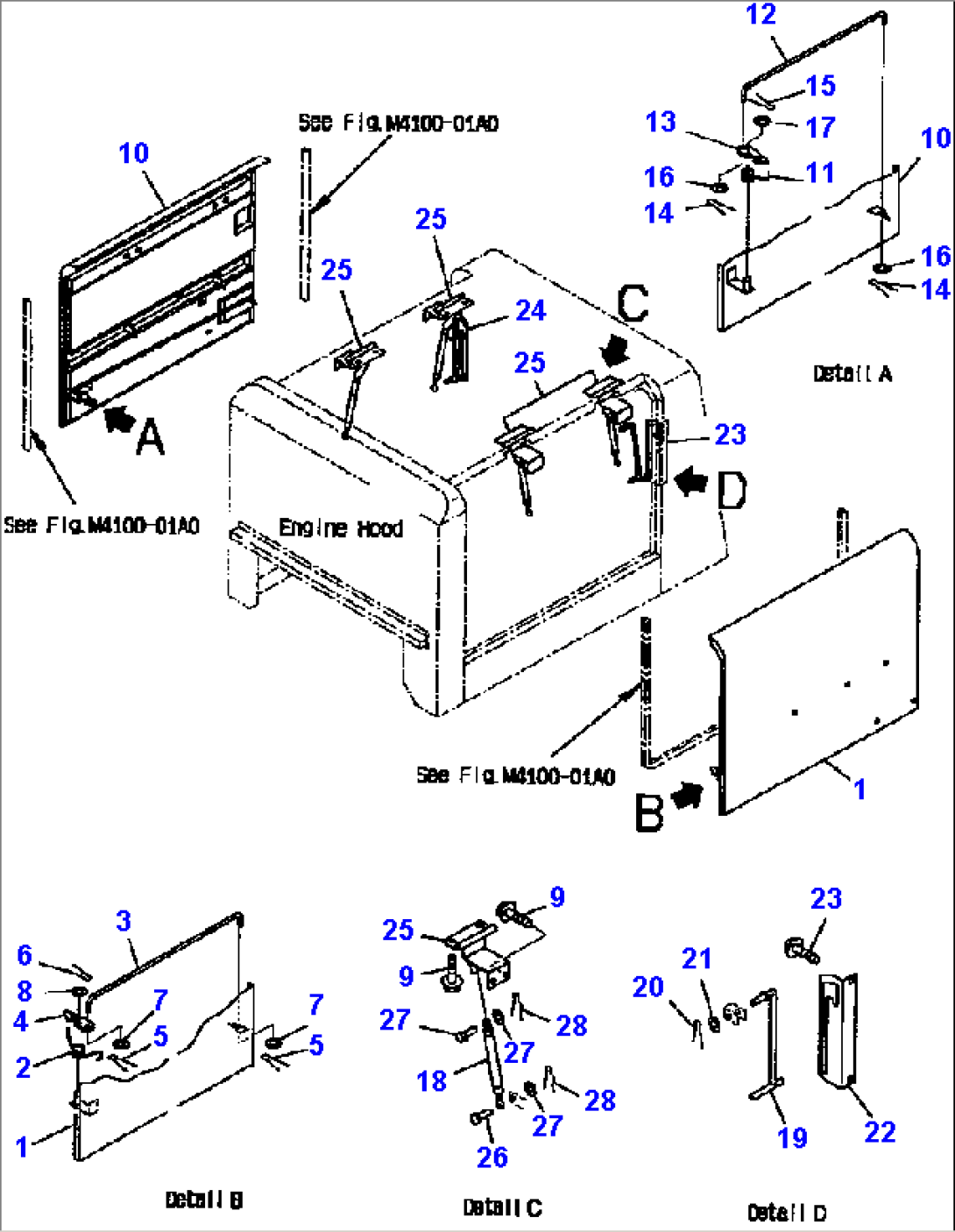

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-21920 | DOOR, L.H | ||
| 421-54-11364 | LOCK ASSEMBLY | |||
| 2 | 417-54-21610 | SPRING, L.H | ||
| 3 | 417-54-21620 | ROD | ||
| 4 | 417-54-21650 | STRIKER | ||
| 5 | 04050-11612 | PIN, COTTER | ||
| 6 | 04050-13020 | PIN, COTTER | ||
| 7 | 01641-20608 | WASHER | ||
| 8 | 01641-21016 | WASHER | ||
| 9 | 01435-01220 | BOLT | ||
| 10 | 418-54-21930 | DOOR, R.H | ||
| 421-54-11364 | LOCK ASSEMBLY | |||
| 11 | 417-54-21660 | SPRING, R.H | ||
| 12 | 417-54-21620 | ROD | ||
| 13 | 417-54-21650 | STRIKER | ||
| 14 | 04050-11612 | PIN, COTTER | ||
| 15 | 04050-13020 | PIN, COTTER | ||
| 16 | 01641-20608 | WASHER | ||
| 17 | 01641-21016 | WASHER | ||
| 18 | 417-54-24280 | GAS SPRING ASSEMBLY | ||
| 19 | 418-54-A1940 | ROD | ||
| 20 | 04050-13022 | PIN, COTTER | ||
| 21 | 01641-21423 | WASHER | ||
| 22 | 418-54-24740 | PLATE, L.H | ||
| 23 | 01435-01020 | BOLT | ||
| 24 | 418-54-24750 | PLATE, R.H | ||
| 25 | 417-54-24420 | HINGE | ||
| 26 | 04205-10830 | PIN | ||
| 27 | 154-61-16570 | WASHER | ||
| 28 | 04052-10833 | PIN |
