| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-30-25411 | FRAME, TRACK | ||
| 2 | 205-30-71171 | SEAL | ||
| 3 | 20Y-30-21150 | GREASE BATH | ||
| 4 | 205-30-71181 | COVER | ||
| 5 | 205-30-71191 | GASKET | ||
| 6 | 01580-11008 | NUT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 20Y-30-11370 | SEAL |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210lc 6le s/n a83001 up
- Under carriage (track type machine)
- Fig no. r1100 0105 track frame
Поиск по каталогу

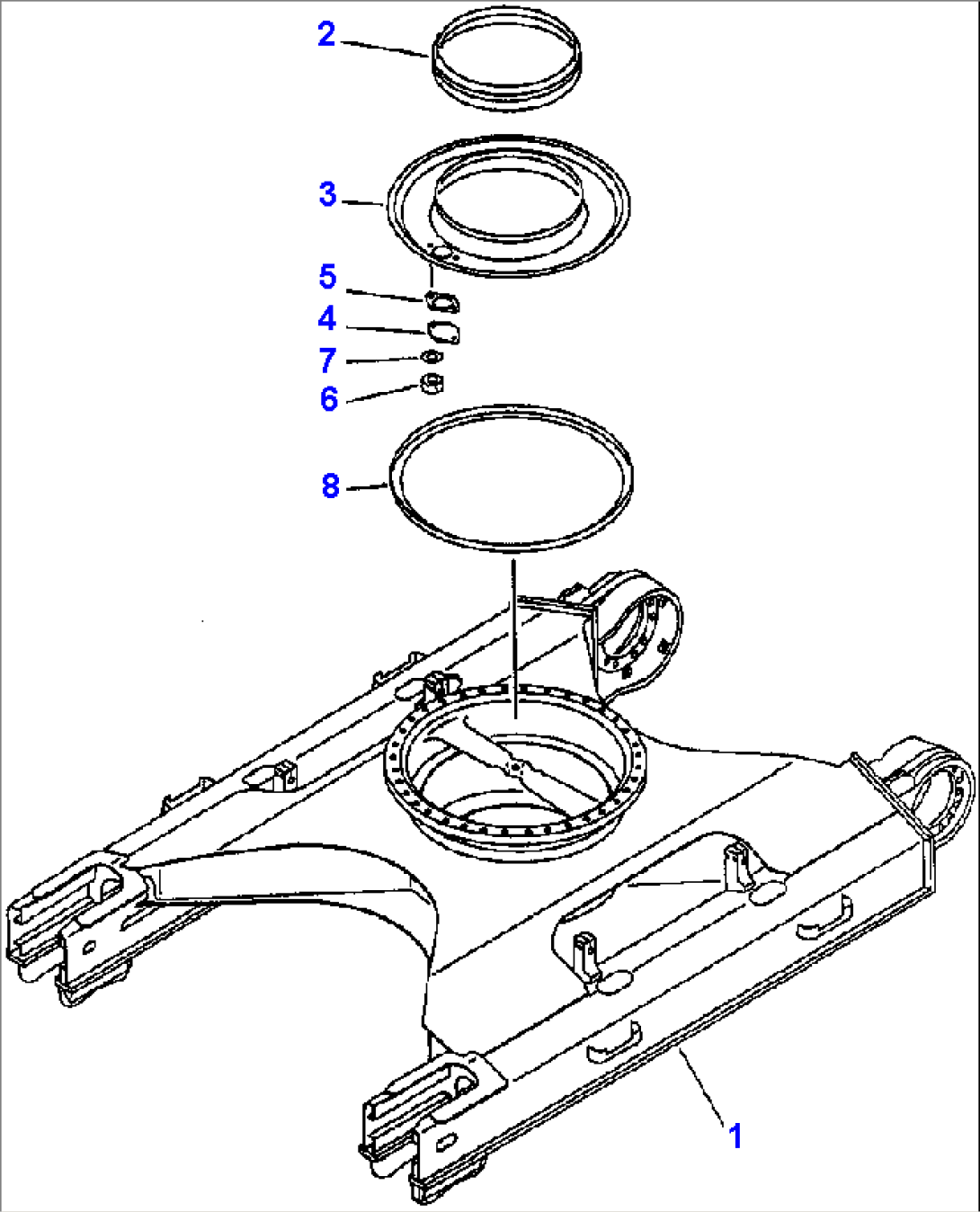

FIG NO. R1100-0105 TRACK FRAME
