| Item | Part No. | Part Name | Qty | Serial No. |

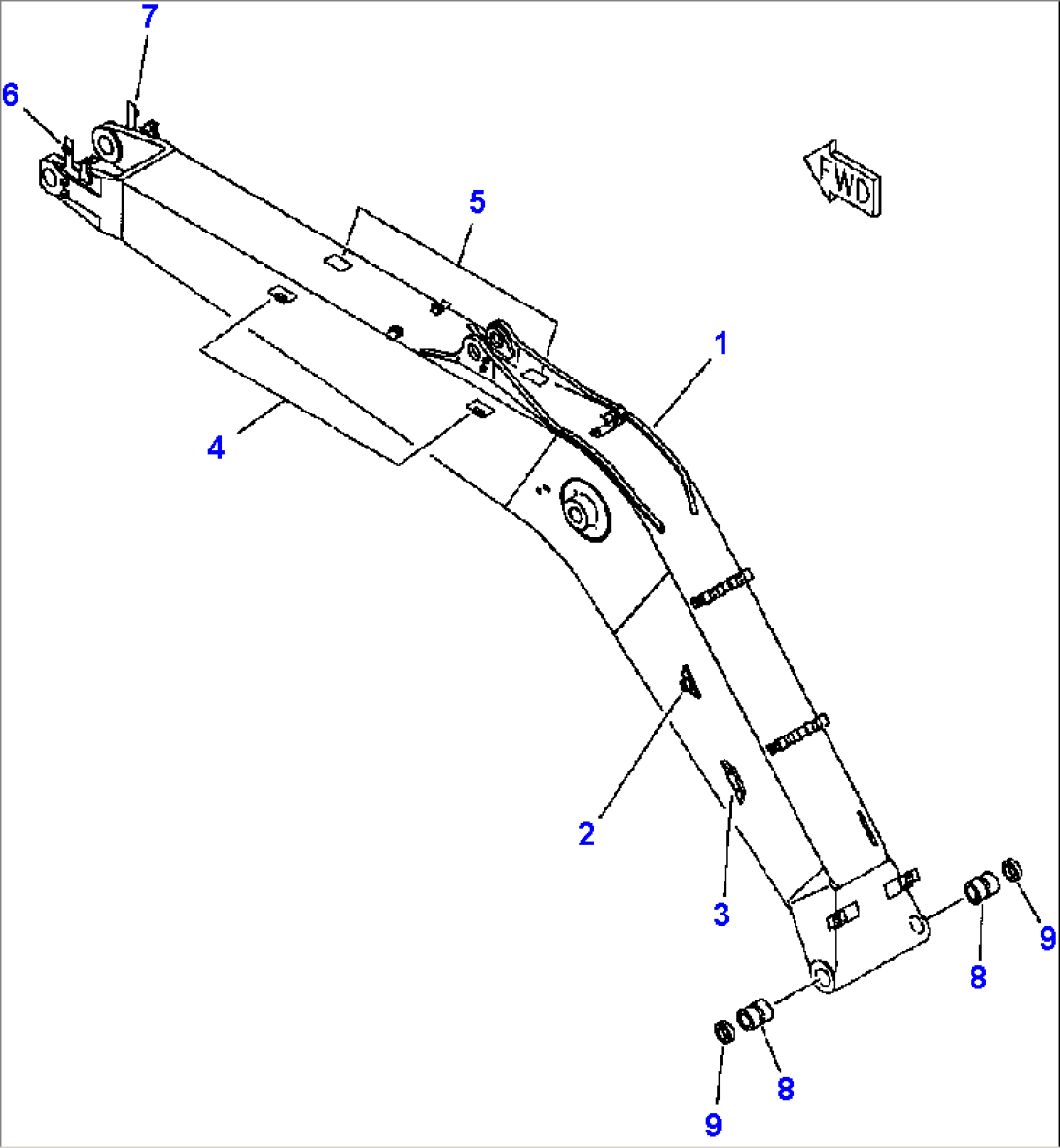

| 206-970-0020 | BOOM ASSEMBLY | |||
| 1 | (NSS) | BOOM | ||
| 2 | 20Y-62-24252 | .BRACKET | ||
| 3 | 206-970-3150 | .SEAT | ||
| 4 | 20Y-62-24271 | .BRACKET | ||
| 5 | 20Y-62-24360 | .BRACKET | ||
| 6 | 20Y-62-24281 | .BRACKET | ||
| 7 | 20Y-62-24291 | .BRACKET | ||
| 8 | 206-70-55240 | BUSHING | ||
| 9 | 07145-00100 | SEAL, DUST | ||
| F1 - WHEN REPLACING THIS PART, ORDER THE FOLLOWING: | ||||
| 206-70-61191 | BUSHING |
