| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-30-61190 | GUARD | A85001-- | |
| 2 | 01010-62460 | BOLT | A85001-- | |
| 3 | 01643-32460 | WASHER | A85001-- | |
| 4 | 07049-02430 | PLUG | A85001-- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400lc 6lm/pc400hd 6lm s/n a85001 up
- Under carriage
- Fig. r1100 02a1a track frame roller guard
Поиск по каталогу

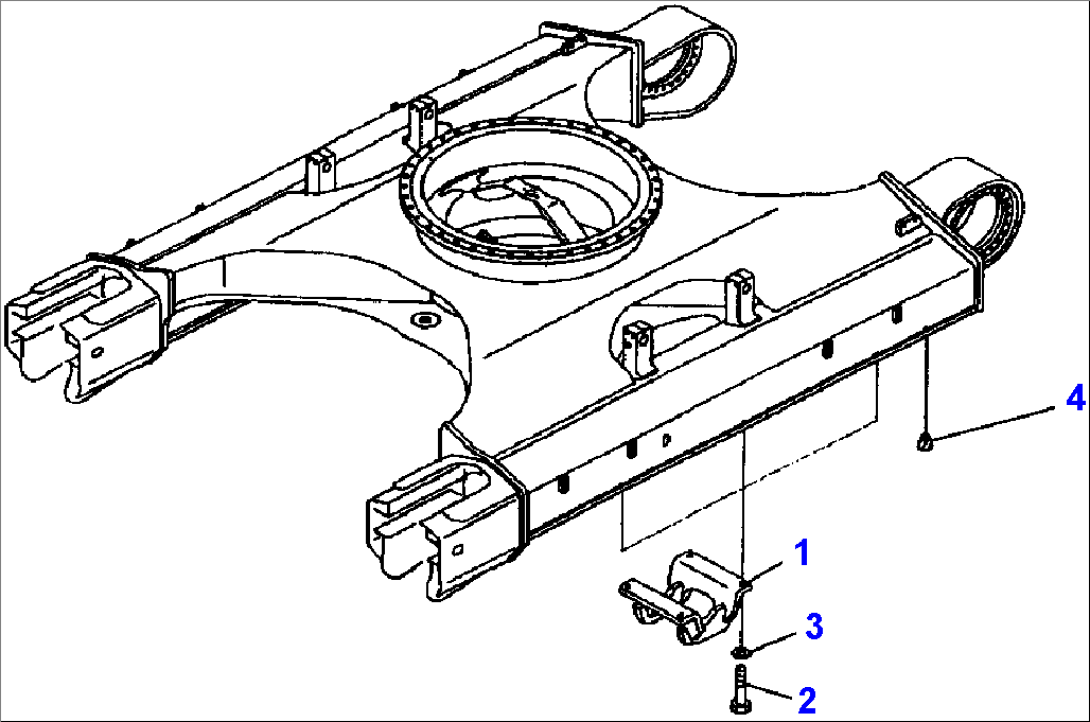

FIG. R1100-02A1A TRACK FRAME - ROLLER GUARD
