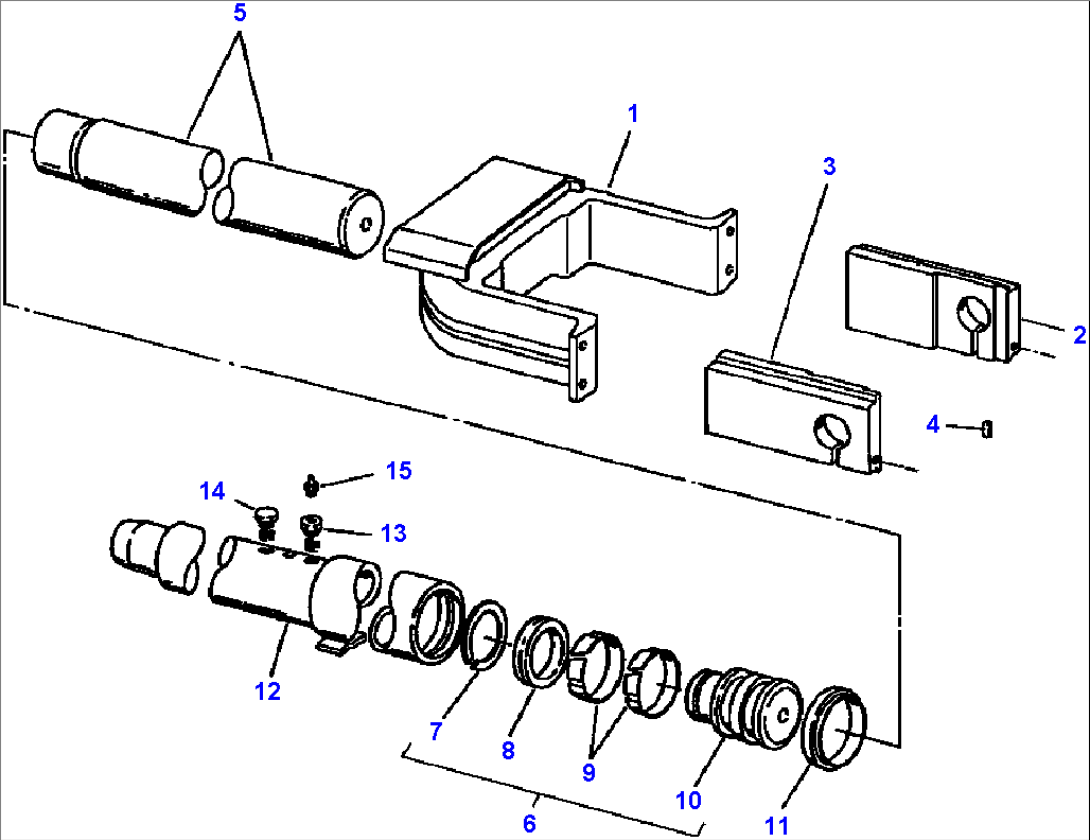

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1249 351 H91 | FORK | P90001-- | |
| 24 889 R1 | BOLT | P90001-- | ||
| 62 177 V | WASHER | P90001-- | ||
| 2 | 1249 348 H1 | BLOCK, LEFT | P90001-- | |
| 26 117 R1 | BOLT | P90001-- | ||
| 232 359 R1 | WASHER | P90001-- | ||
| 3 | 1249 349 H1 | BLOCK, RIGHT | P90001-- | |
| 26 117 R1 | BOLT | P90001-- | ||
| 232 359 R1 | WASHER | P90001-- | ||
| 4 | 19 756 R1 | PIN | P90001-- | |
| 703 695 C91 | ADJUSTER, TRACK | P90001-- | ||
| 5 | 739 469 C2 | ROD | P90001-- | |
| 6 | 655 659 C91 | PISTON | P90001-- | |
| 7 | 324 051 R1 | RING, SEAL RETAINING | P90001-- | |
| 8 | 607 918 C1 | SEAL, PISTON | P90001-- | |
| OR | P90001-- | |||
| 1268 178 H1 | SEAL, PISTON | P90001-- | ||
| 9 | 325 965 R1 | RING, GUIDE | P90001-- | |
| 10 | 629 257 C1 | PISTON, ADJUSTER CYLINDER | P90001-- | |
| 11 | 607 919 C1 | WIPER, ROD | P90001-- | |
| 12 | 655 608 C1 | HOUSING, CYLINDER | P90001-- | |
| 13 | 319 628 R91 | VALVE, INLET CHECK | P90001-- | |
| 14 | 707 270 C91 | VALVE, RELIEF | P90001-- | |
| 15 | 109 461 | FITTING, LUBE | P90001-- |
